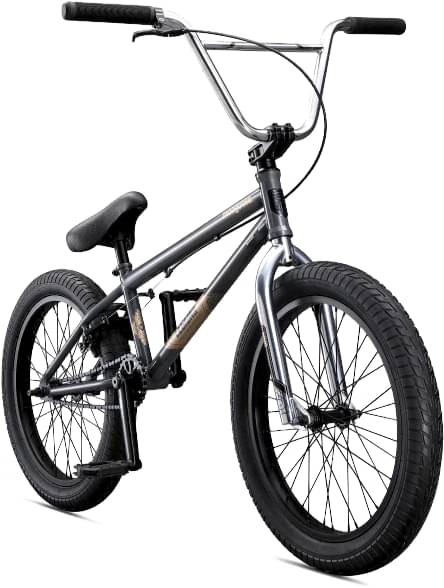

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Wheels 20" -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hi-Ten steel, BMX freestyle geometry, integrated headset, mid BB shell

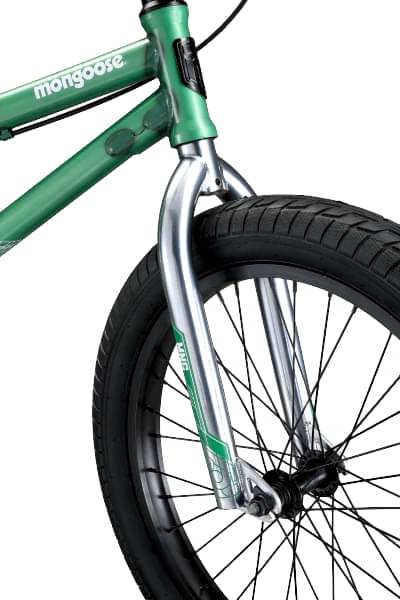

Suspension Fork
Hi-Ten steel

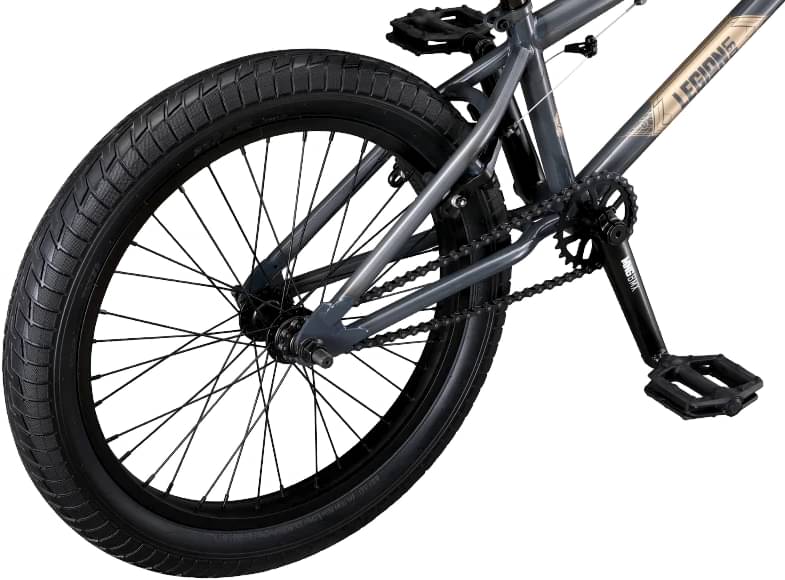

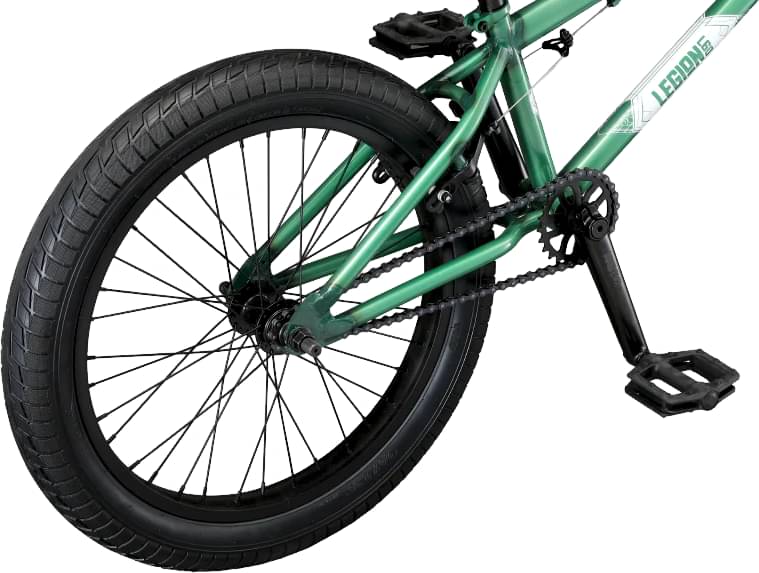

Drivetrain
Crank
3-piece, tubular chromoly, 25T steel chainring
Bottom Bracket
Mid sealed bearing, 8-spline spindle
Chain
KMC S1
Pedals
Mongoose, nylon
Wheels
Front Hub
Steel, ball bearing, 3/8 in axle, 36H
Rear Hub
Steel, sealed-bearing cassette, 14 mm axle, 36H
Rims
Aluminum single wall, 29 mm ID, 36H
Spokes
14G, steel, black
Tires
20 in x 2.3 in, wire bead
Brakes
Brakes
U-brake, aluminum

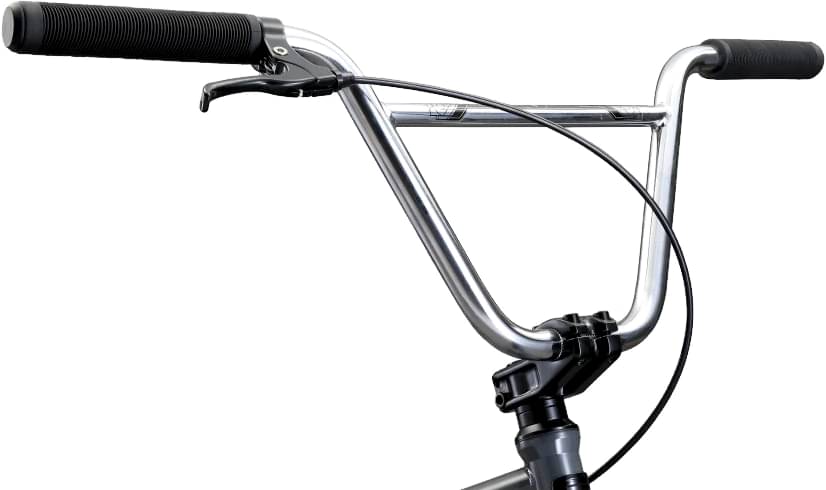

Cockpit
Stem
Mongoose, threadless top load, 50 mm
Handlebar
Mongoose, Hi-Ten steel, 29 in width, 8.75 in rise
Grips
Mongoose MushXL, 160 mm
Headset
Threadless, integrated 1-1/8", cartridge bearing

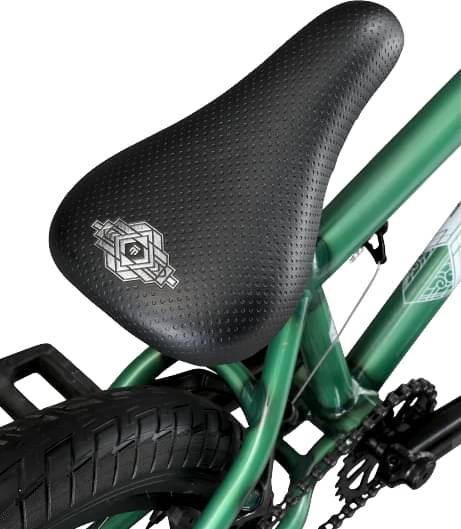

Seat
Saddle
Mongoose Unifier, 1 piece rails
Seatpost
Steel, 250 mm, 25.4 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | L60 | L40 | L80 | L500 | L100 |
|---|---|---|---|---|---|
| Front Center | 576 mm | 576 mm | 578 mm | 581 mm | 581 mm |
| Rake | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Top Tube Length | 521 mm | 521 mm | 527 mm | 534 mm | 534 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 223 mm | 223 mm | 223 mm | 223 mm | 223 mm |
| Head Tube Angle | 74.5 ° | 74.5 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 348 mm | 348 mm | 348 mm | 348 mm | 348 mm |
| Wheelbase | 920 mm | 920 mm | 922 mm | 925 mm | 925 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 565 mm | 565 mm | 565 mm | 565 mm | 565 mm |
| Wheels | 20" | 20" | 20" | 20" | 20" |
