Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCE
-
Groupset microSHIFT -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tectonic T1, aluminum, 27.5" sport geometry, 9 mm x 135 mm dropout, replaceable hanger

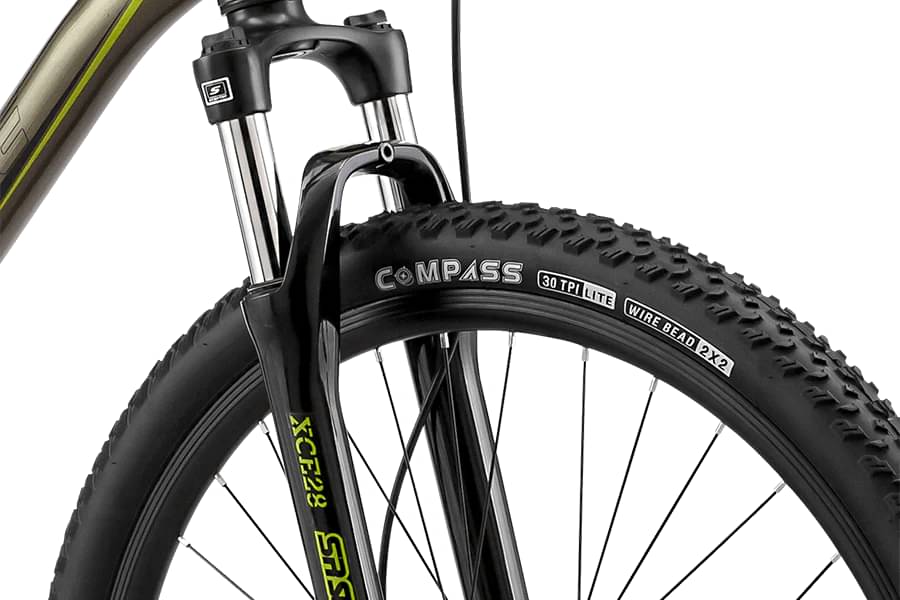

Suspension Fork
SR Suntour XCE 28 P, 27.5", steel steerer, 9 mm x 100 mm, QR, 80 mm travel

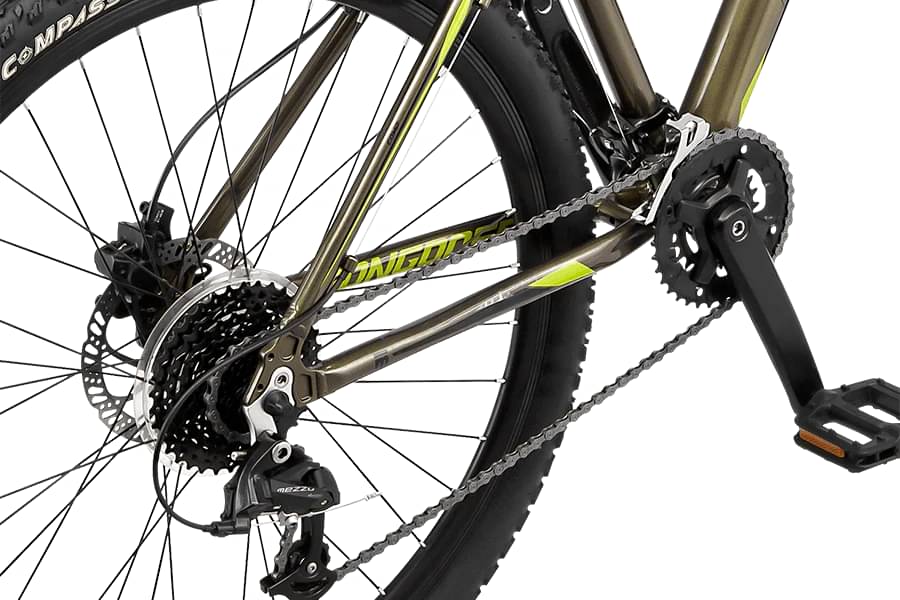

Drivetrain
Rear Derailleur
Microshift
Front Derailleur
MicroSHIFT, 31.8 mm clamp

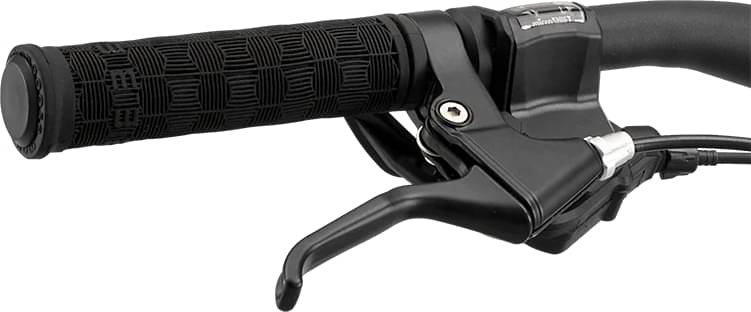

Shift Levers
Microshift, 2 x 9
Crank
Prowheel TM-CY10, aluminum, 36/22T
Bottom Bracket
Feimin FP-B609W, cartridge, square taper, threaded 68 mm shell
Chain
KMC Z9
Pedals
Mongoose, nylon
Wheels
Front Hub
Xposure, aluminum, 9 mm x 100 mm, 32H, 6-bolt
Rear Hub
Xposure, aluminum, 10 mm x 135 mm QR, 32H, 6-bolt
Rims
Xposure, aluminum double wall, 32H
Spokes
14G, steel, black
Tires
27.5 in x 2.1 in, wire bead
Brakes
Brakes
Tektro HD-M275, hydraulic disc, aluminum, 160 mm rotor
Cockpit
Stem
Xposure aluminum, threadless, 80 mm, 17? rise, 31.8 mm clamp
Handlebar
Xposure, steel, 700 mm width, 15 mm rise, 31.8 mm clamp
Grips
Xposure, single density
Headset
Threadless, ZS44/ZS44, retainer bearing
Seat

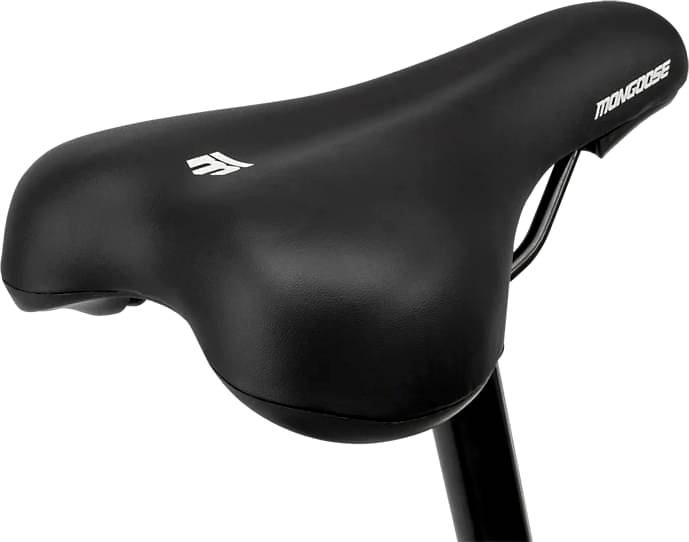

Saddle
Mongoose MTB comfort, steel rails
Seatpost
Steel, 300 mm, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.601 mm | 1.586 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm |
| Front Center | 618 mm | 639 mm | 661 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 91 mm | 91 mm | 91 mm |
| Stack | 583 mm | 602 mm | 620 mm |
| Reach | 362 mm | 376 mm | 391 mm |
| Top Tube Length | 540 mm | 560 mm | 580 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 427 mm | 475 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1051 mm | 1072 mm | 1094 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm |
| Standover Height | 741 mm | 767 mm | 813 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
