Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Travel Rear 110mm -
Fork Suntour XCM
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components

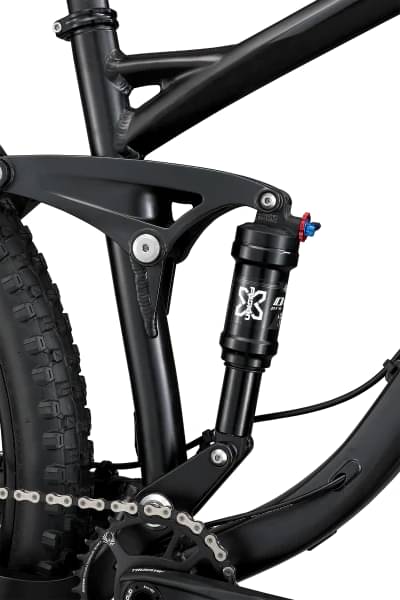

Frame
Frame
Tectonic T2 aluminum, 29" trail geometry, rocker link suspension, internal cable routing, 9 mm x 141 mm QR dropout convertible to 12 mm x 148 mm thru axle, replaceable hanger, tapered headtube, 110 mm travel

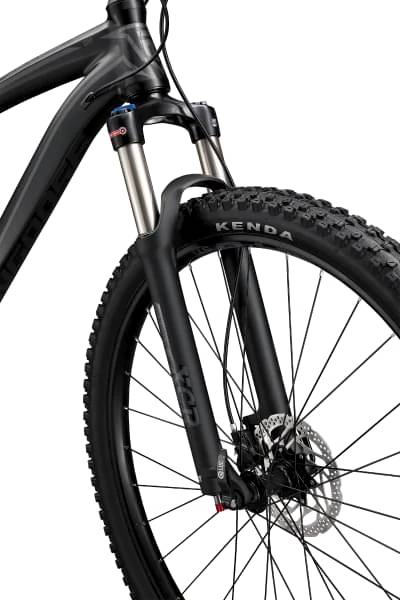

Suspension Fork
SR Suntour XCM, 29", steel steerer, hydraulic lockout, 15 mm x 110 mm thru axle, 100 mm travel
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle, 12-speed
Crank
SRAM SX Powerspline, aluminum, 30T
Bottom Bracket
SRAM Powerspline, cartridge, 3-piece, threaded 73 mm shell
Chain
SRAM SX 12spd
Pedals
Mongoose, nylon
Wheels
Front Hub
Shimano HB-MT400B, aluminum, ball bearing, 15 mm x 110 mm, 32H, CENTER LOCK
Rear Hub
Shimano FH-MT200B, aluminum, ball bearing, 9 mm x 141 mm QR, 32H, BRANTA Strive
Rims
WTB ST-i29, aluminum double wall, 29 mm ID, 32H, tubeless compatible
Spokes
14G, stainless steel
Tires
Kenda Nevegal, 29 in x 2.25 in, wire bead
Brakes
Brakes
Shimano BR-M201/BR-MT200, hydraulic, aluminum, 160 mm rotor

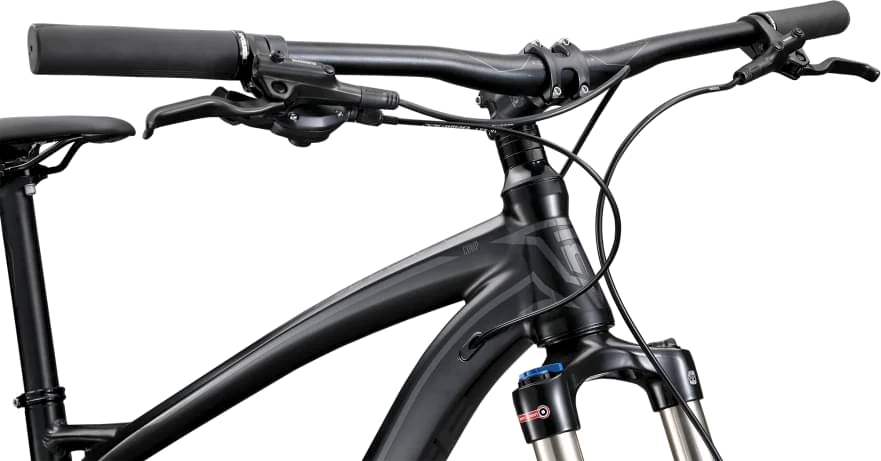

Cockpit
Stem
Xposure 3D forged aluminum, threadless, 60 mm, 6°, 31.8 mm clamp
Handlebar
Xposure, double-butted aluminum, 760 mm width, 15 mm rise, 31.8 mm clamp
Grips
Xposure Kraton, lock-on
Headset
Threadless, ZS44/ZS56, retainer bearing

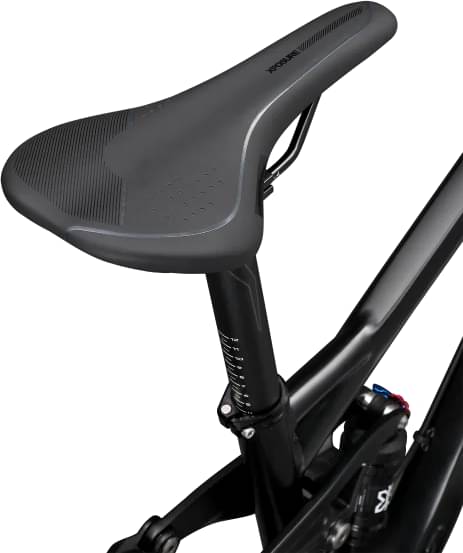

Seat
Saddle
Mongoose steel railed
Seatpost
Xposure, aluminum, 350 mm, zero offset, 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.556 mm | 1.459 mm | 1.393 mm |
| Bottom Bracket Height | 371 mm | 371 mm | 371 mm |
| Front Center | 664 mm | 700 | 731 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 108 mm | 108 mm | 108 mm |
| Stack | 614 mm | 623 mm | 633 mm |
| Reach | 394.7 mm | 427.1 mm | 454.5 mm |
| Top Tube Length | 565 mm | 600 mm | 630 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 410 mm | 430 mm | 468 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1114 mm | 1150 mm | 1181 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm |
| Standover Height | 758 mm | 770 mm | 798 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
