Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tectonic T1, aluminum, 27.5" sport geometry, internal cable routing, 9 mm x 135 mm dropout, replaceable hanger

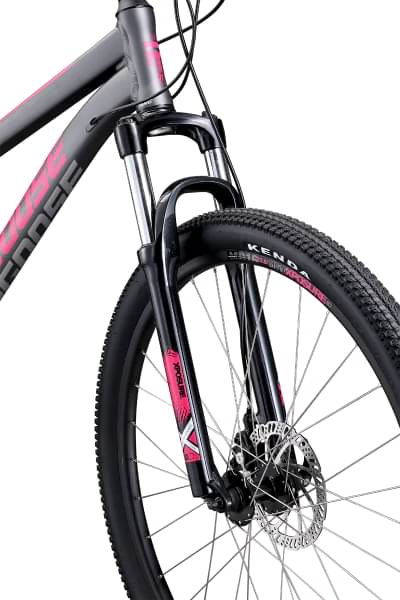

Suspension Fork
Xposure, 27.5", steel steerer, lockout, 9 mm x 100 mm, QR, 80 mm travel

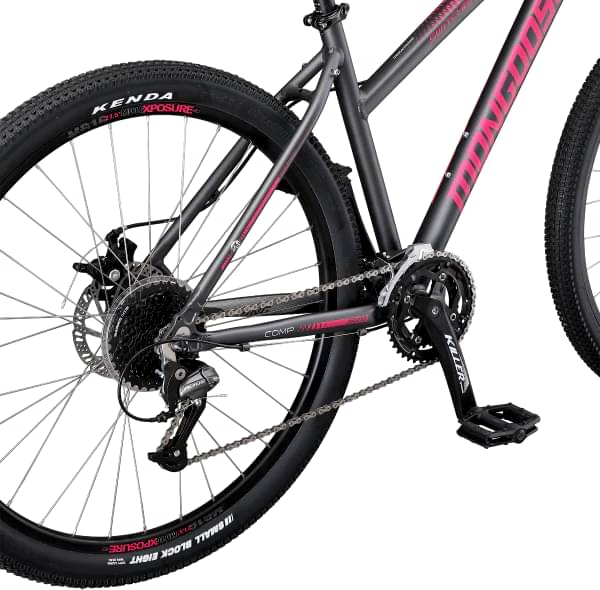

Drivetrain
Rear Derailleur
Shimano Altus RD-M370
Front Derailleur
Shimano FD-2020, band clamp
Shift Levers
Shimano SL-M2000, 2 x 9
Crank
Shimano MT-101-2, aluminum, 36/22T
Bottom Bracket
Feimin FP-B609W, cartridge, 3-piece, threaded 73 mm shell
Chain
KMC Z9
Pedals
Mongoose, nylon
Wheels
Front Hub
Xposure, aluminum, ball bearing, 9 mm x 100 mm, 32H, 6-bolt
Rear Hub
Xposure, aluminum, ball bearing, 9 mm x 135 mm, 32H, 6-bolt
Rims
Xposure MD-16, aluminum double wall, 19 mm ID, 32H
Spokes
14G, stainless steel
Tires
Kenda MTB, 27.5 in x 2.1 in, wire bead
Brakes
Brakes
Tektro aluminum mechanical disc, 160 mm rotor, mechanical, aluminum, 160 mm rotor

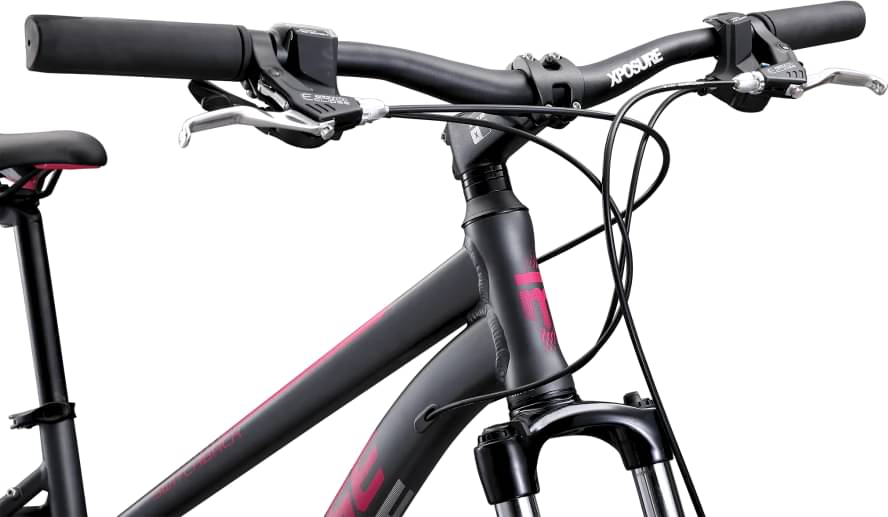

Cockpit
Stem
Xposure diecast, threadless, 70 mm/90 mm, 7°, 31.8 mm clamp
Handlebar
Xposure, double-butted aluminum, 680 mm width, 25 mm rise, 31.8 mm clamp
Grips
Xposure Kraton, single density
Headset
Threadless, ZS44/ZS44, retainer bearing

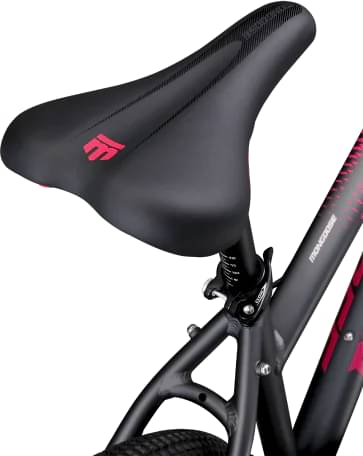

Seat
Saddle
Mongoose MTB comfort, steel rails
Seatpost
Xposure, aluminum, 350 mm, 20 mm offset, 31.6 mm
