Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork Suntour
-
Groupset Shimano, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy, 1-1/8" zero stack headtube

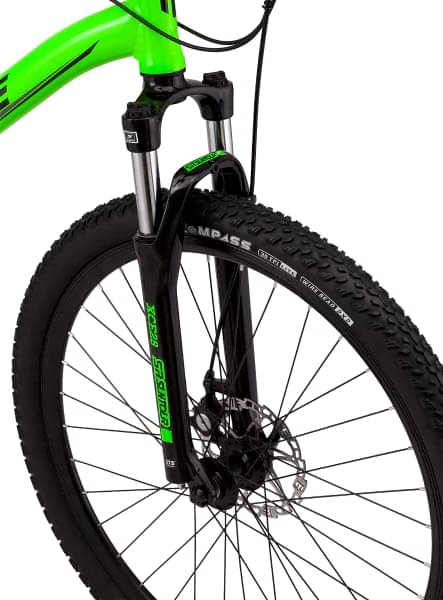

Suspension Fork
SR Suntour XC-E28, 80 mm, QR, 27.5"

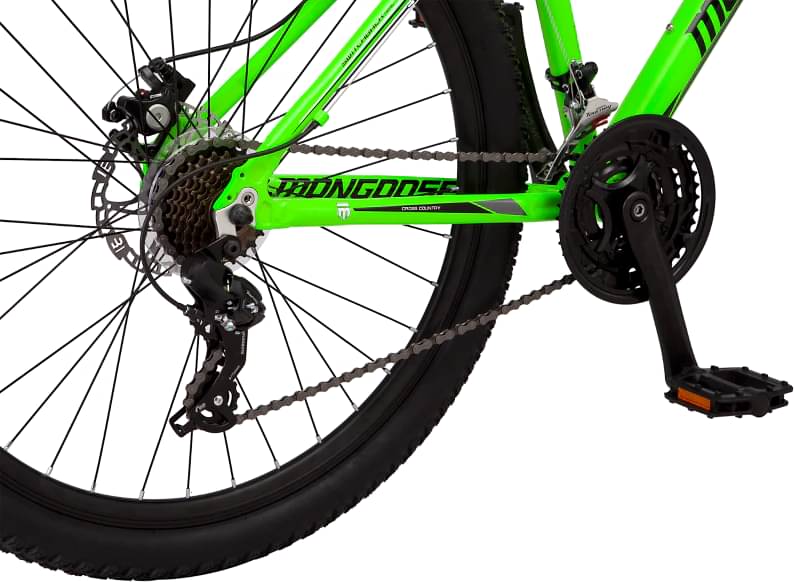

Drivetrain
Rear Derailleur
Shimano RD-TY300D, 7-speed
Front Derailleur
Shimano FD-TY300
Shift Levers
Shimano ST-EF500 3/7-speed
Crank
Alloy 170 ??, 24/34/42T
Bottom Bracket
Femin cartridge JIS
Chain
KMC Z7, 1/2" *3/32"
Pedals
Mongoose PP platform
Wheels
Front Hub
Alloy disc mount, QR
Rear Hub
Alloy disc mount, QR
Rims
Double Wall, Alloy, 36H
Tires
Mongoose MTB 27.5" ? 2.1"
Brakes
Brakes
Power BX-277 disc brake, 160mm rotors

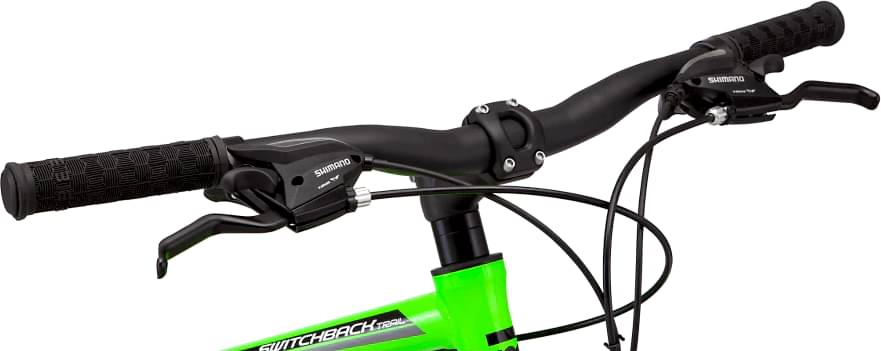

Cockpit
Stem
Forged Alloy, 31.8 bar bore
Handlebar
Steel 31.8", 680W x 30R
Grips
Mongoose Hive MTB with plug
Headset
Femin, 44/44ZS integrated

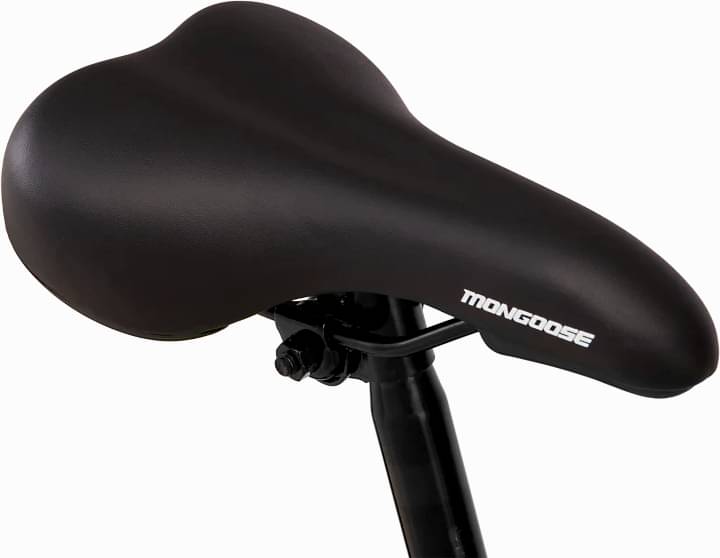

Seat
Saddle
Mongoose MTB
Seatpost
Steel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 0.514 mm | 0.493 mm | 0.488 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm |
| Front Center | 619 mm | 631 mm | 647 mm |
| Rake | -224 mm | -250 mm | -272 mm |
| Trail | 376 mm | 404 mm | 423 mm |
| Stack | 374 mm | 378 mm | 392 mm |
| Top Tube Length | 550 mm | 560 mm | 580 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 427 mm | 475 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1052 mm | 1064 mm | 1080 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm |
| Standover Height | 740 mm | 775 mm | 812 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
