Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork Suntour
-
Groupset Shimano, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy, 1-1/8" zero stack headtube

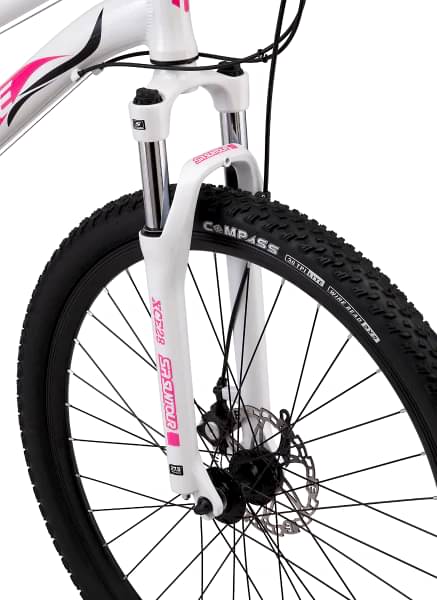

Suspension Fork
SR Suntour XC-E28, 80 mm, QR, 27.5"

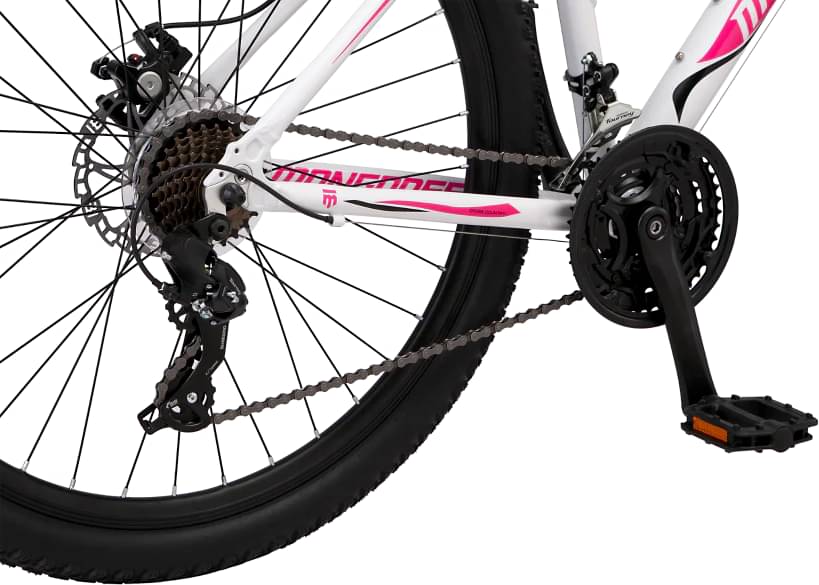

Drivetrain
Rear Derailleur
Shimano RD-TY300D, 7-speed
Front Derailleur
Shimano FD-TY300
Shift Levers
Shimano ST-EF500 3/7-speed
Crank
Alloy 170 ??, 24/34/42T
Bottom Bracket
Femin cartridge JIS
Chain
KMC Z7, 1/2" *3/32"
Pedals
Mongoose PP platform
Wheels
Front Hub
Alloy disc mount, QR
Rear Hub
Alloy disc mount, QR
Rims
Double Wall, Alloy, 36H
Tires
Mongoose MTB 27.5" ? 2.1"
Brakes
Brakes
Power BX-277 disc brake, 160mm rotors

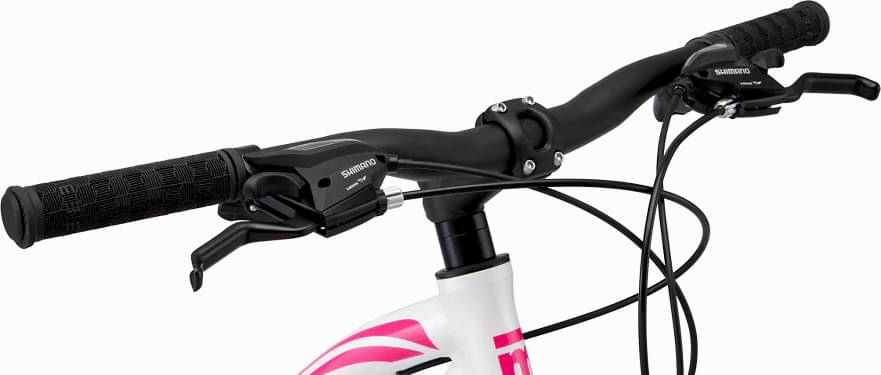

Cockpit
Stem
Forged Alloy, 31.8 bar bore
Handlebar
Steel 31.8", 680W x 30R
Grips
Mongoose Hive MTB with plug
Headset
Femin, 44/44ZS integrated
Seat

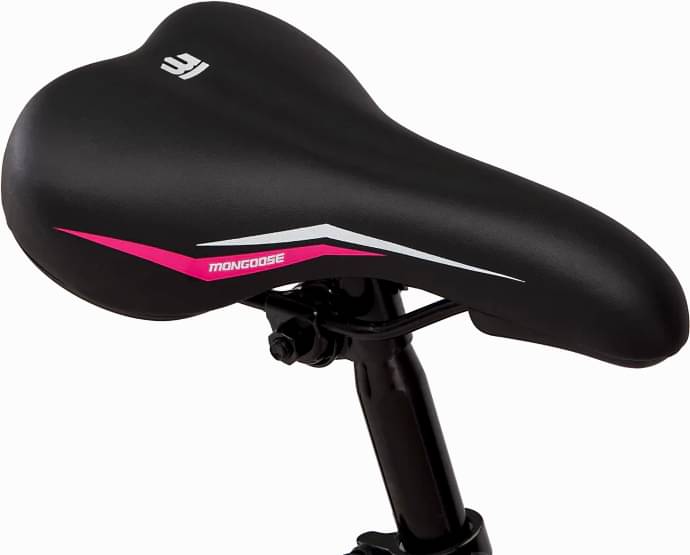

Saddle
Mongoose MTB
Seatpost
Steel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 0.571 mm | 0.58 mm |
| Bottom Bracket Height | 309 mm | 309 mm |
| Front Center | 611 mm | 622 mm |
| Rake | -158 mm | -146 mm |
| Trail | 298 mm | 285 mm |
| Stack | 376 mm | 380 mm |
| Reach | 658 mm | 655 mm |
| Top Tube Length | 555 mm | 565 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 447 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm |
| Wheelbase | 1042 mm | 1053 mm |
| Bottom Bracket Drop | 46 mm | 46 mm |
| Standover Height | 670 mm | 678 mm |
| Wheels | 27" | 27" |
