Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 20" -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tectonic T1, aluminum biaxial hydroformed and butted, BMX Race geometry, 86mm press fit BB shell, internal cable routing, 3D Forged, 10 mm dropout, tapered headtube

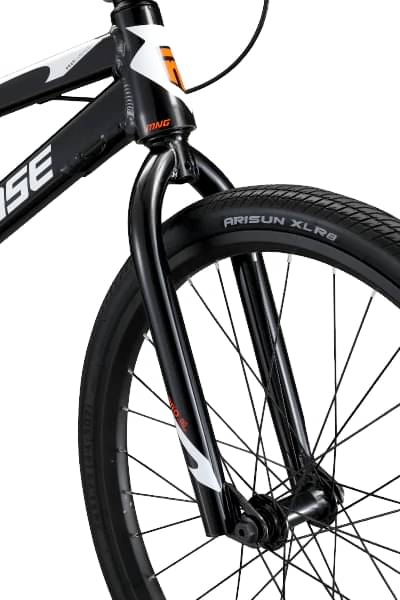

Suspension Fork
4130 chromoly
Drivetrain
Crank
Samox 2-piece, aluminum 175 mm, 24 mm hollow spindle, 4-arm with 42T AL chainring
Bottom Bracket
BB86 press-fit sealed bearing
Chain
KMC S1
Pedals
Mongoose, nylon
Wheels
Front Hub
Aluminum, sealed-bearing, 3/8 in bolt, 32H

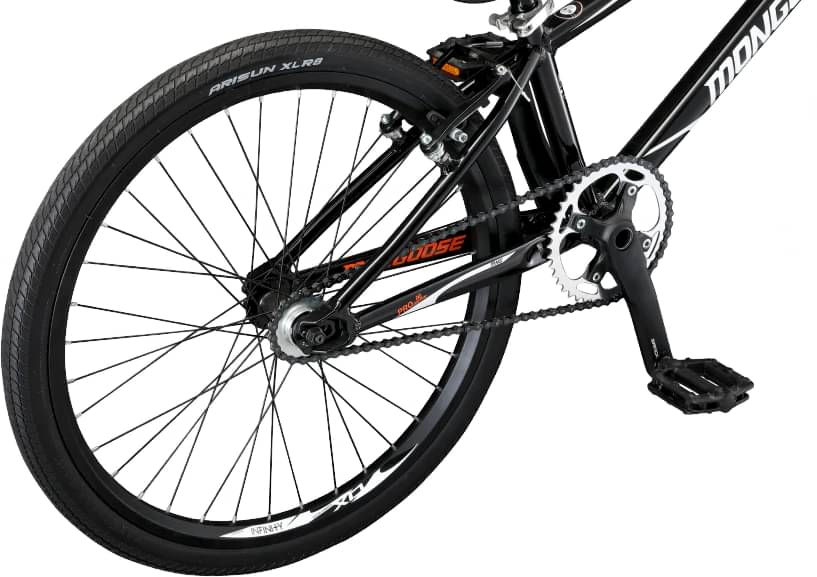

Rear Hub
Aluminum, sealed-bearing cassette, 3/8 in axle, 36H
Rims
Xposure Infinity-XD, aluminum double wall, 30 mm ID, 32H front, 36H rear
Spokes
14G, steel, black
Tires
Arisun XLR8, 24 in x 1.75 in front; 1.75 in rear, wire bead
Brakes
Brakes
Linear pull, aluminum
Brake Levers
Mongoose 4130, 4130 chromoly, 28 in width, 6.5 in rise
Cockpit

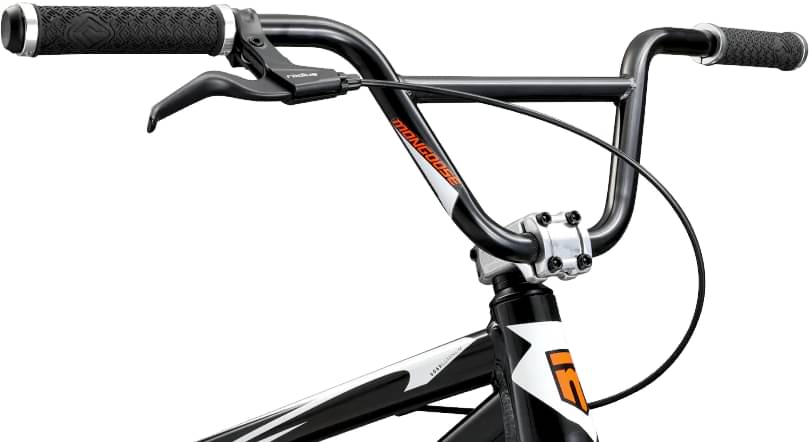

Stem
Mongoose, threadless top load, 50 mm
Grips
Mongoose Gate, lock-on, 140 mm
Headset
Threadless, 1-1/8" sealed integrated, taper compatible
Seat

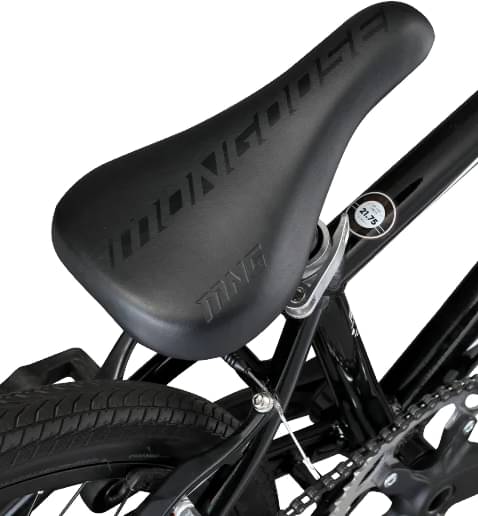

Saddle
Mongoose Unifier Pro, 1 piece rails
Seatpost
Aluminum, 250 mm, 27.2 mm
Fit data
Geometry
