Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tectonic T1, aluminum, BMX Race geometry, internal cable routing

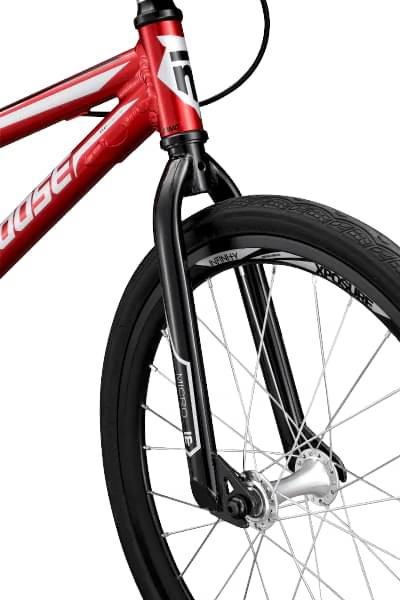

Suspension Fork
Hi-Ten steel

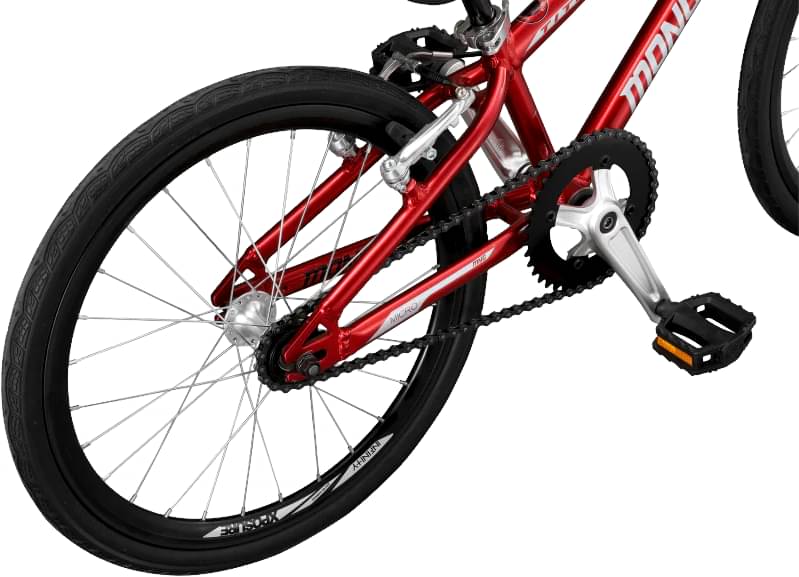

Drivetrain
Crank
Samox 3-piece, aluminum 130 mm, 39T chainring
Bottom Bracket
Euro cartridge bearing, square taper, threaded 68 mm shell
Chain
KMC S1
Pedals
Mongoose, nylon
Wheels
Front Hub
Aluminum, ball bearing, 3/8 in axle, 28H
Rear Hub
Aluminum, ball bearing, 3/8 in axle, 28H
Rims
Xposure Infinity, aluminum double wall, 14 mm ID, 28H
Spokes
14G, steel, chrome
Tires
Kenda, 20 in x 1.25 in, wire bead
Brakes
Brakes
Linear pull, aluminum

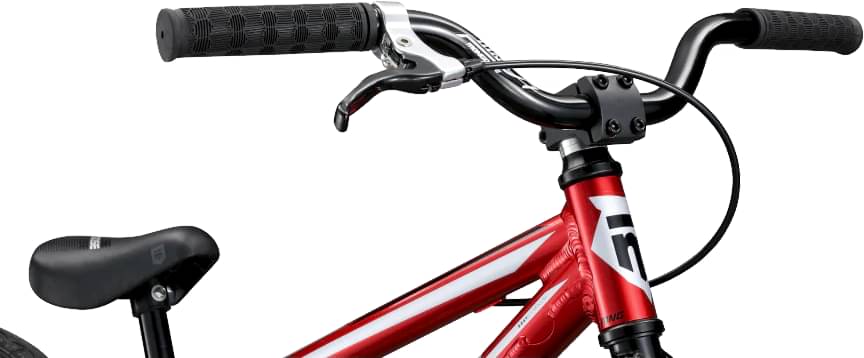

Cockpit
Stem
Mongoose, threadless front load, 30 mm
Handlebar
Mongoose, aluminum, 21 in width, 2 in rise
Grips
Mongoose Hive, 120 mm
Headset
Threadless, 1" external, retainer bearing
Seat

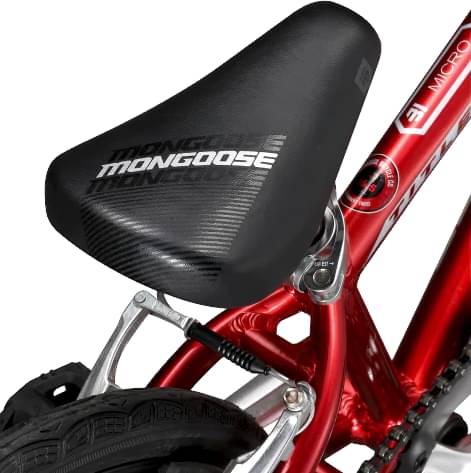

Saddle
Mongoose Unifier Mini, 1 piece rails
Seatpost
Aluminum, 200 mm, 22.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Micro | Mini | Junior |
|---|---|---|---|
| Rake | 34 mm | 34 mm | 34 mm |
| Top Tube Length | 419 mm | 444 mm | 470 mm |
| Seat Tube Angle | 70 ° | 71 ° | 71 ° |
| Seat Tube Length | 220 mm | 220 mm | 233 mm |
| Head Tube Angle | 71 ° | 73 ° | 73 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm |
| Chainstay Length | 330 mm | 343 mm | 340 mm |
| Wheelbase | 804 mm | 834 mm | 863 mm |
| Standover Height | 482 mm | 502 mm | 510 mm |
| Wheels | 20" | 20" | 20" |
