Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tectonic T1, aluminum, BMX Race geometry, internal cable routing

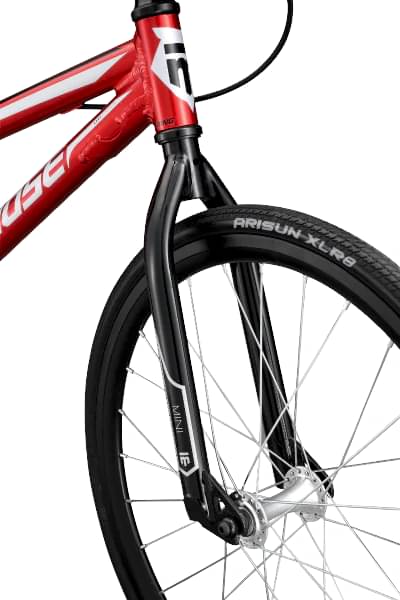

Suspension Fork
Hi-Ten steel

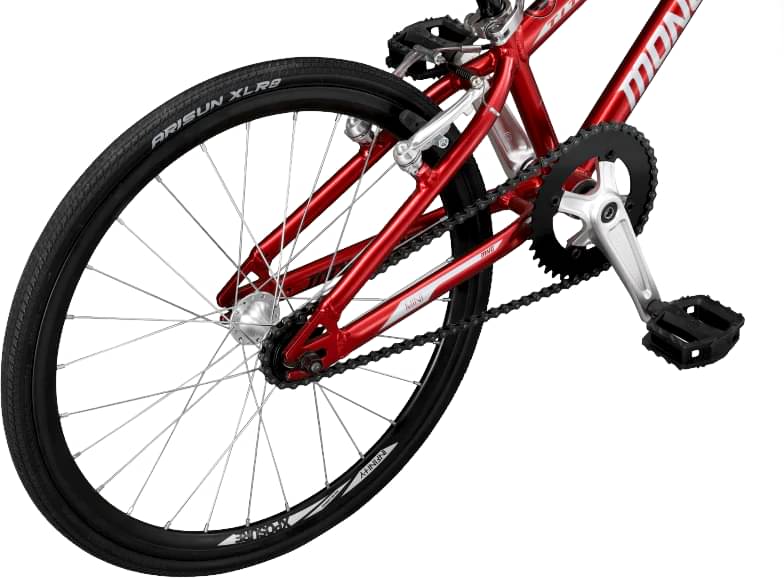

Drivetrain
Crank
Samox 3-piece, aluminum 140 mm, 39T chainring
Bottom Bracket
Euro cartridge bearing, square taper, threaded 68 mm shell
Chain
KMC S1
Pedals
Mongoose, nylon
Wheels
Front Hub
Aluminum, ball bearing, 3/8 in axle, 28H
Rear Hub
Aluminum, ball bearing, 3/8 in axle, 28H
Rims
Xposure Infinity, aluminum double wall, 14 mm ID, 28H
Spokes
14G, steel, chrome
Tires
Arisun XLR8, 20 in x 1-1/8 in, wire bead
Brakes
Brakes
Linear pull, aluminum

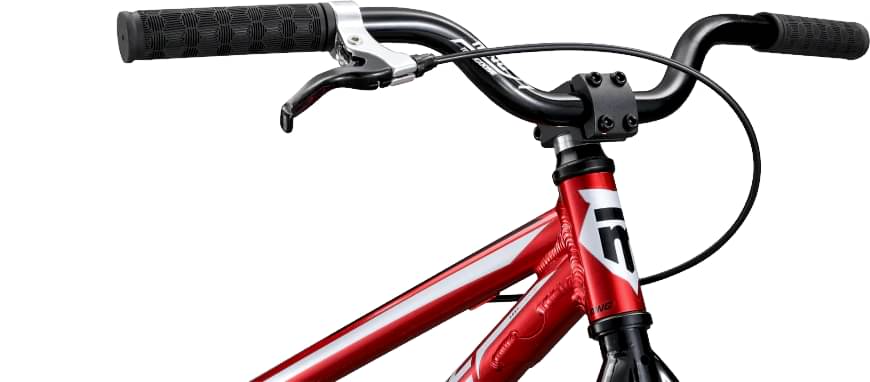

Cockpit
Stem
Mongoose, threadless front load, 30 mm
Handlebar
Mongoose, aluminum, 22.5 in width, 2.5 in rise
Grips
Mongoose Hive, 120 mm
Headset
Threadless, 1" external, retainer bearing

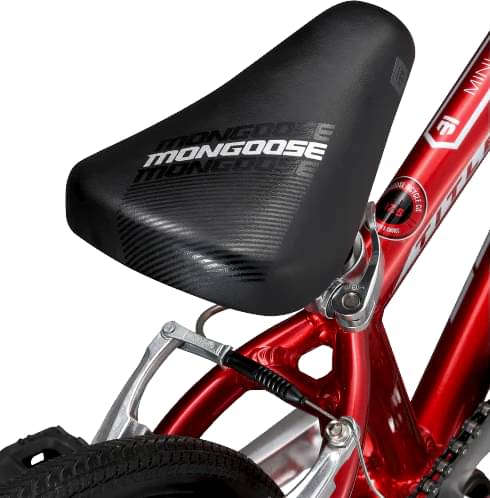

Seat
Saddle
Mongoose Unifier Mini, 1 piece rails
Seatpost
Aluminum, 200 mm, 22.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Micro | Mini | Junior |
|---|---|---|---|
| Rake | 34 mm | 34 mm | 34 mm |
| Top Tube Length | 419 mm | 444 mm | 470 mm |
| Seat Tube Angle | 70 ° | 71 ° | 71 ° |
| Seat Tube Length | 220 mm | 220 mm | 233 mm |
| Head Tube Angle | 71 ° | 73 ° | 73 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm |
| Chainstay Length | 330 mm | 343 mm | 340 mm |
| Wheelbase | 804 mm | 834 mm | 863 mm |
| Standover Height | 482 mm | 502 mm | 510 mm |
| Wheels | 20" | 20" | 20" |
