Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 50mm -
Travel Rear 141mm -
Fork Suntour X1
-
Groupset Altus, microSHIFT -
Suspension Full -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum 24" XC geometry, internal cable routing, 9 mm x 141 mm

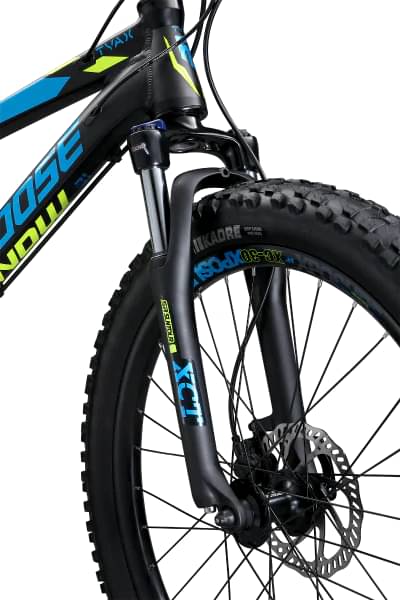

Suspension Fork
SR Suntour XCT-JR, 24" aluminum steerer hydraulic lockout 9 mm x 100 mm QR 50 mm travel

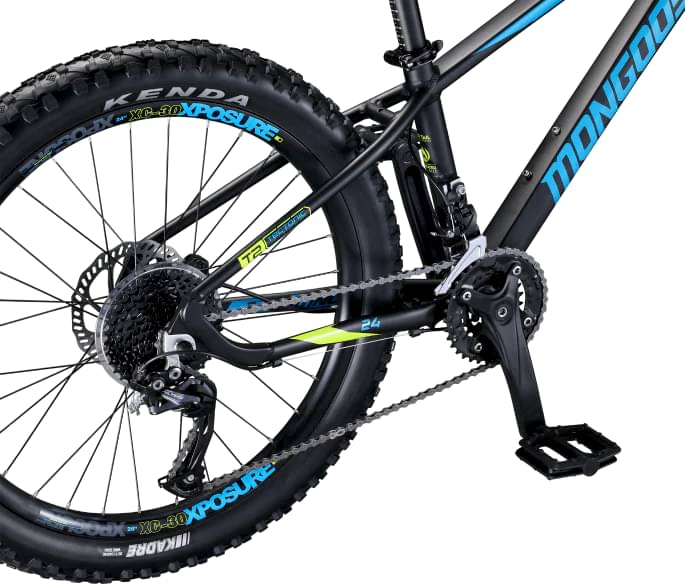

Drivetrain
Rear Derailleur
Shimano Altus RD-M2000
Front Derailleur
microSHIFT FD-M462D, direct mount
Shift Levers
2 x 9 Shimano Acera SL-M3000
Crank
Prowheel 36/22T
Bottom Bracket
VP cartridge 3-piece threaded 73 mm shell
Chain
KMC Z99
Pedals
Mongoose nylon
Wheels
Front Hub
Xposure aluminum ball bearing 9 mm x 100 mm 32H 6-bolt
Rear Hub
Xposure, aluminum, ball bearing, 9 mm x 141 mm QR, 32H, 6-bolt
Rims
Xposure XV-23 aluminum double wall 25 mm ID, 32H, tubeless compatible
Spokes
14G, stainless steel
Tires
Kenda Kadre 24" x 2.6"
Brakes
Brakes
Hydraulic disc brakes
Brake Levers
Tektro M282

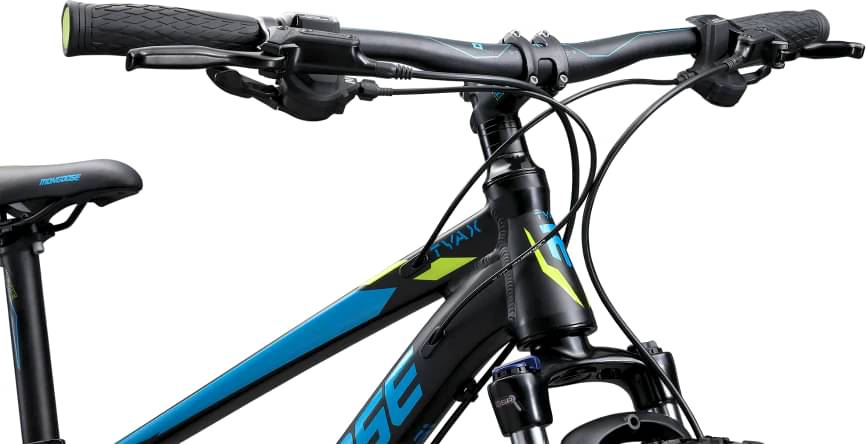

Cockpit
Stem
Xposure 3D forged aluminum,threadless, 60 mm, 6°, 31.8 mm clamp
Handlebar
Xposure double-butted aluminum 680 mm 15 mm rise 31.8 mm clamp
Grips
Xposure Kraton, semi-ergo
Headset
Threadless ZS44/ZS44 retainer bearing

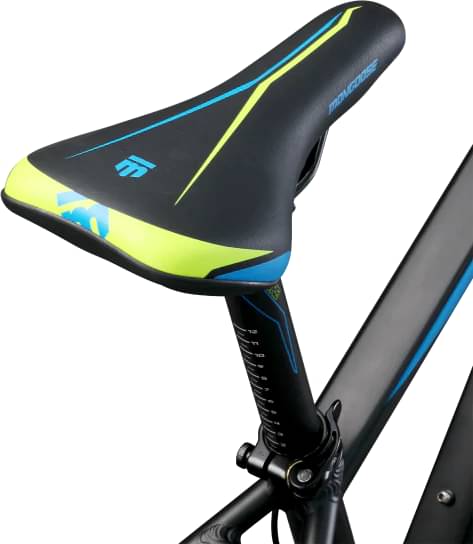

Seat
Saddle
Mongoose Jr. MTB steel
Seatpost
Xposure aluminum, 350 mm, zero offset, 31.6 mm
Fit data
Geometry
