Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore, SLX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tectonic T2, aluminum, 27.5"+ cross country geometry, 9 mm x 141 mm QR dropout convertible to 12 mm x 148 mm thru axle, internal cable routing, 9 mm x 141 mm dropout, replaceable hanger, tapered headtube

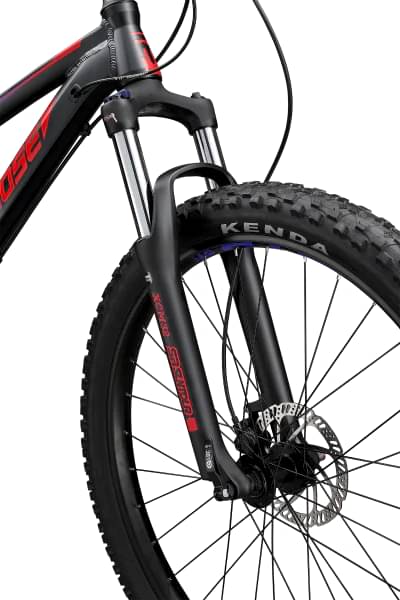

Suspension Fork
SR Suntour XCM, 27.5", steel steerer, hydraulic lockout, 15 mm x 110 mm, thru axle, 100 mm travel
Drivetrain

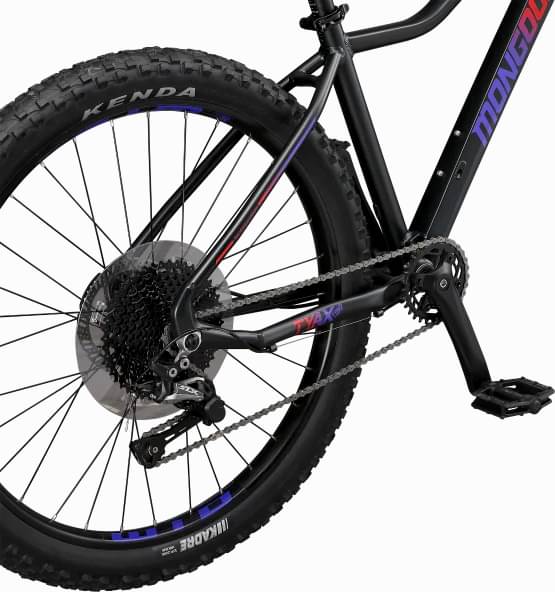

Rear Derailleur
Deore RD-M5100
Shift Levers
Shimano SLX SL-M7000, 11-speed
Crank
Prowheel, 30T
Bottom Bracket
VP, cartridge, 3-piece, threaded 73 mm shell
Chain
KMC X11
Pedals
Mongoose, nylon
Wheels
Front Hub
Xposure, aluminum, ball bearing, 15 mm x 110 mm, 32H, 6-bolt
Rear Hub
Xposure, aluminum, ball bearing, 9 mm x 141 mm QR, 32H, 6-bolt
Rims
WTB ST-i35, aluminum double wall, 35 mm ID, 32H, tubeless compatible
Spokes
14G, stainless steel
Tires
Kenda Kadre, 27.5 in x 2.4 in, wire bead
Brakes
Brakes
Tektro HD-M290, hydraulic, aluminum, 160 mm rotor

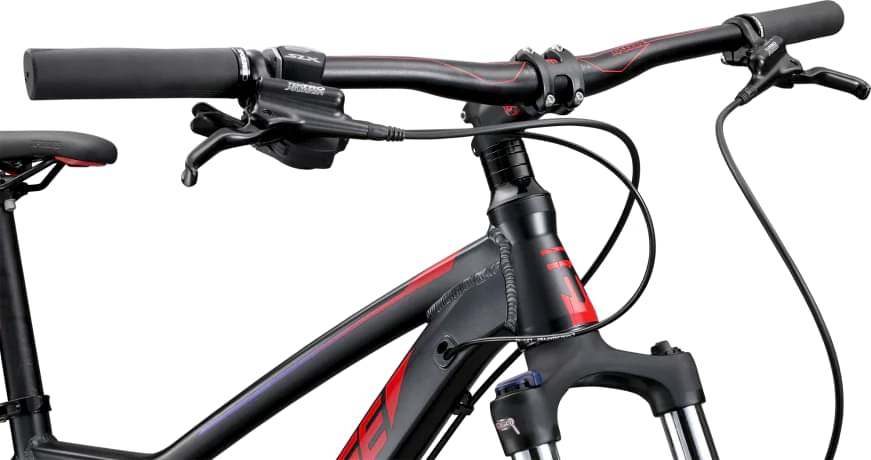

Cockpit
Stem
Xposure 3D forged aluminum, threadless, 60 mm, 6°, 31.8 mm clamp
Handlebar
Xposure, double-butted aluminum, 740 mm width, 15 mm rise, 31.8 mm clamp
Grips
Xposure Kraton, semi-ergo lock on
Headset
Threadless, ZS44/ZS56, retainer bearing

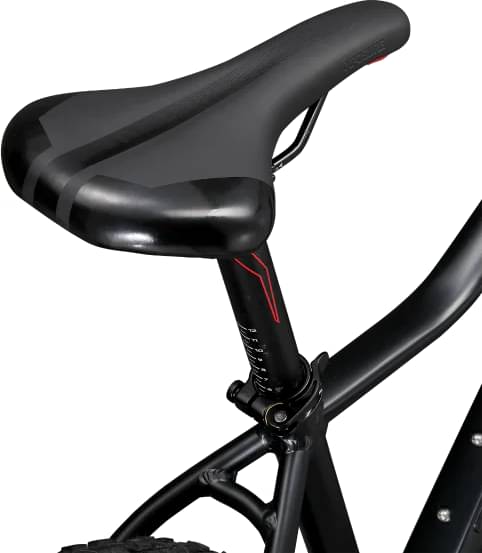

Seat
Saddle
Mongoose MTB
Seatpost
Xposure, aluminum, 350 mm, zero offset, 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.492 mm | mm | mm | mm |
| Bottom Bracket Height | 325 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 574 mm | 647 mm | 666 mm | 687 mm |
| Rake | 40 mm | 42 mm | 42 mm | 42 mm |
| Trail | 111 mm | mm | mm | mm |
| Stack | 548 mm | mm | mm | mm |
| Reach | 367.4 mm | 368 mm | 390 mm | 414 mm |
| Top Tube Length | 535 mm | 545 mm | 570 mm | 590 mm |
| Seat Tube Angle | 73 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 330 mm | 310 mm | 360 mm | 415 mm |
| Head Tube Angle | 70 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 110 mm | 130 mm | 150 mm |
| Chainstay Length | 425 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 997 mm | 1083 mm | 1103 mm | 1124 mm |
| Bottom Bracket Drop | 30 mm | 43 mm | 43 mm | 43 mm |
| Standover Height | 669 mm | 625 mm | 655 mm | 695 mm |
| Wheels | 27" | 27" | 27" | 27" |
