Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium
Suspension Fork
N/A
Drivetrain
Rear Derailleur
N/A
Shift Levers
N/A
Crank
N/A
Bottom Bracket
N/A
Wheels
Tires
N/A
Brakes
Brakes
N/A
Cockpit
Stem
N/A
Handlebar
N/A
Headset
N/A
Seat
Saddle
N/A
Seatpost
N/A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.88 mm | 1.78 mm | 1.69 mm | 1.65 mm | 1.62 mm |
| Stack | 622 mm | 632 mm | 642 mm | 652 mm | 662 mm |
| Reach | 331 mm | 356 mm | 380 mm | 394 mm | 409 mm |
| Top Tube Length | 505 mm | 535 mm | 565 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74.5 ° | 74.25 ° | 74 ° | 73.75 ° | 73.5 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.75 ° | 71 ° | 71 ° | 71.25 ° | 71.25 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm | 451 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 820 mm | 836 mm | 853 mm | 864 mm | 879 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

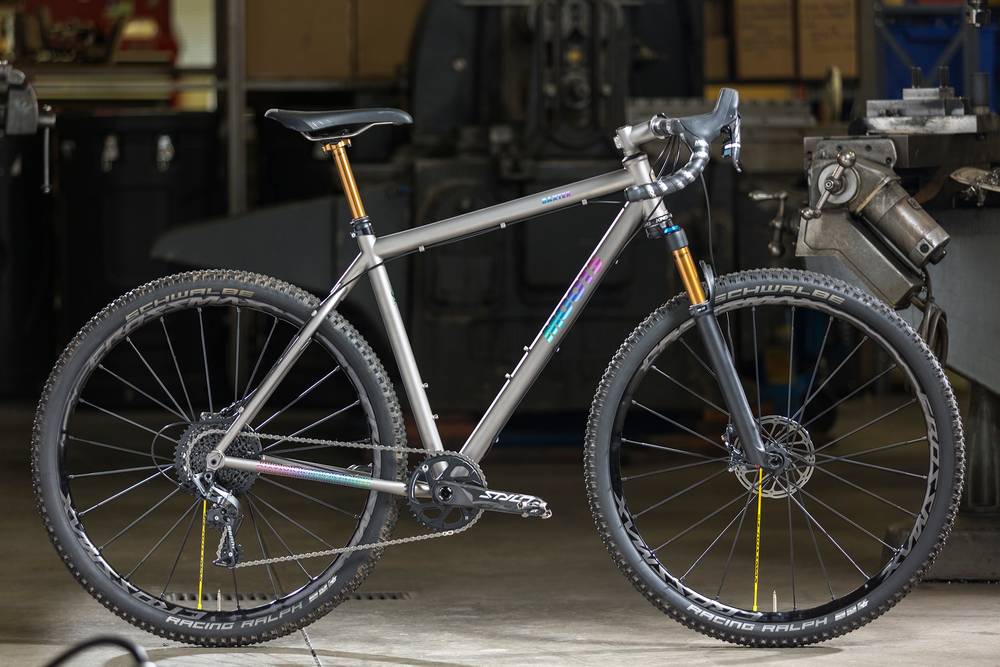

Baxter 29” FRAME ONLY completes the Moots Baxter model. There are 5 frames that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel frames average price
According to our math, the average price for a trustworthy Gravel frame is 1505$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3425$. Comparing this to the average Gravel frame price, we see that the price is 127.57% more expensive.
Overview of components
Sizes
This frame is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
