Bike details
Overview
Key information split into simple groups.

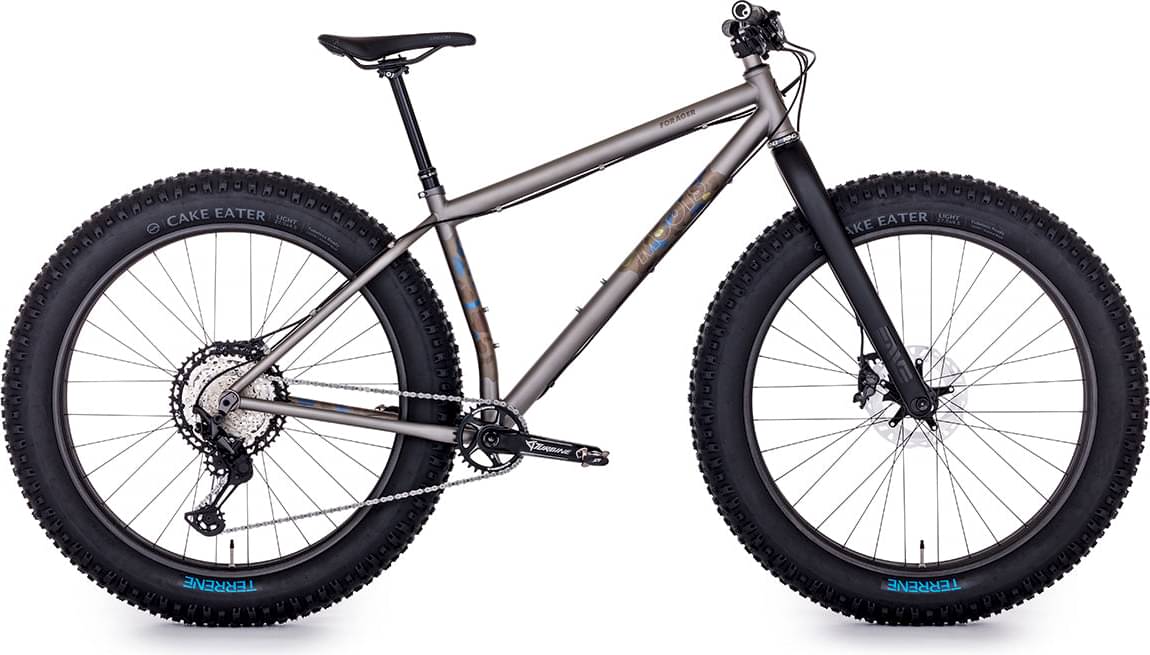

Bike summary
-
-
Frame Titanium -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
150×15
Drivetrain
Bottom Bracket
120mm Threaded
Brakes
Brakes
Hydraulic Disc
Seat
Seatpost
30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.481 mm | 1.403 mm | 1.354 mm | 1.285 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm |
| Stack | 622 mm | 630 mm | 639 mm | 650 |
| Reach | 420 mm | 449 mm | 472 mm | 506 mm |
| Seat Tube Angle | 77 ° | 76.5 ° | 76.25 ° | 75.5 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 752 mm | 780 mm | 823 mm | 856 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
