Bike details
Overview
Key information split into simple groups.

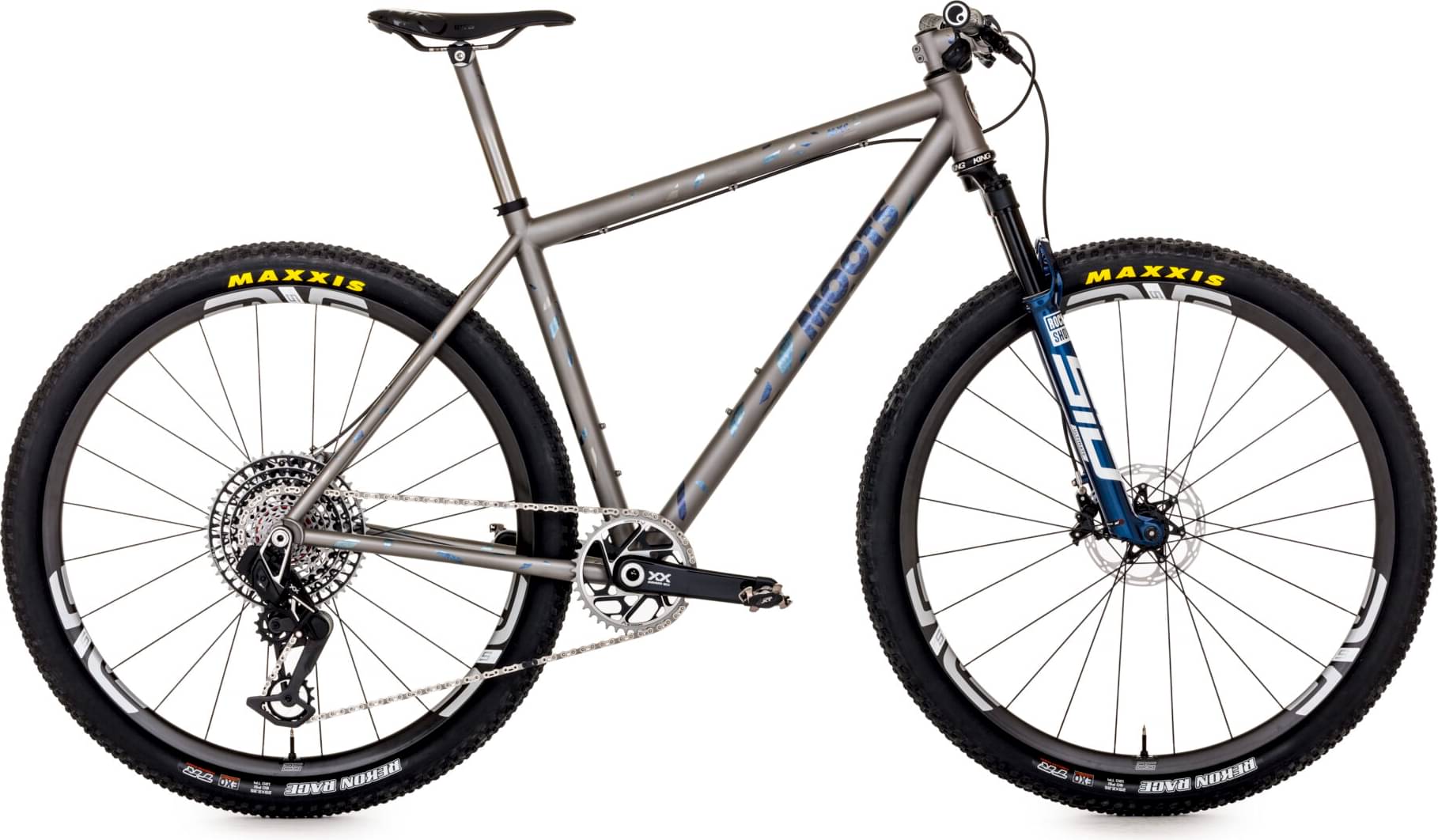

Frame summary
-
Category -
Frame Titanium
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
FRAME
Cassette
FRAME
Crank
FRAME
Bottom Bracket
T47
Seat
Seatpost
30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.452 mm | 1.394 mm | 1.352 mm | 1.319 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Stack | 601 mm | 609 mm | 619 mm | 637 mm |
| Reach | 414 mm | 437 mm | 458 mm | 483 mm |
| Top Tube Length | 586 mm | 610 mm | 638 mm | 668 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 406 mm | 445 mm | 470 mm | 508 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 751 mm | 777 mm | 798 mm | 829 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
