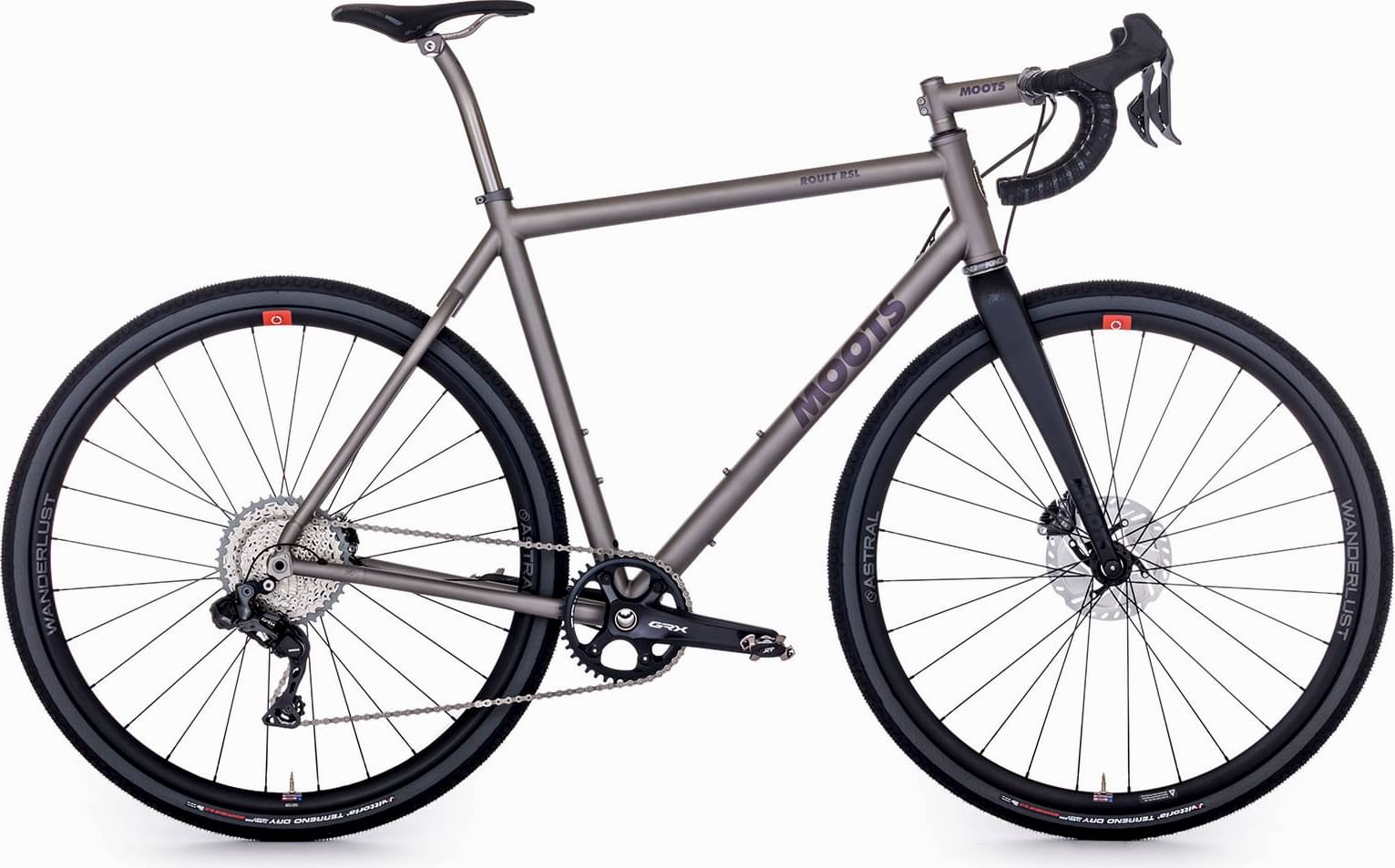

Moots Routt RSL SRAM Force AXS 2024
2024 Road
Estimate price |
11,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset Force, Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Moots Gravel Fork
Drivetrain
Rear Derailleur
SRAM Force AXS
Cassette
SRAM Force AXS
Crank
SRAM Force AXS
Bottom Bracket
68mm English Threaded
Wheels
Rims
Enve AG25
Tires
Panaracer Gravel King SK 43c
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Enve Road Stem
Handlebar
Enve AR
Seat
Saddle
WTB Gravelier Ti
Seatpost
27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 55cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.538 mm | 1.563 mm | 1.545 mm | 1.559 mm | 1.572 mm | 1.522 mm | 1.543 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 280 mm | 280 mm | 280 mm | 280 mm | 281 mm |
| Stack | 563 mm | 572 mm | 581 mm | 591 mm | 602 mm | 612 mm | 631 mm |
| Reach | 366 mm | 366 mm | 376 mm | 379 mm | 383 mm | 402 mm | 409 mm |
| Top Tube Length | 520 mm | 530 mm | 545 mm | 555 mm | 565 mm | 590 mm | 605 mm |
| Seat Tube Angle | 75 ° | 74.25 ° | 74 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 480 mm | 510 mm | 520 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72.25 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm | 160 mm | 170 mm | 190 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 69 mm | 69 mm | 69 mm | 69 mm | 68 mm |
| Standover Height | 749 mm | 759 mm | 782 mm | 790 mm | 800 mm | 813 mm | 859 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
