Moots Va CRD FRAMESET 2024

2024 Road

Estimate price | 8,899$

Weight | 1.4 kg

Open compare Use advisor

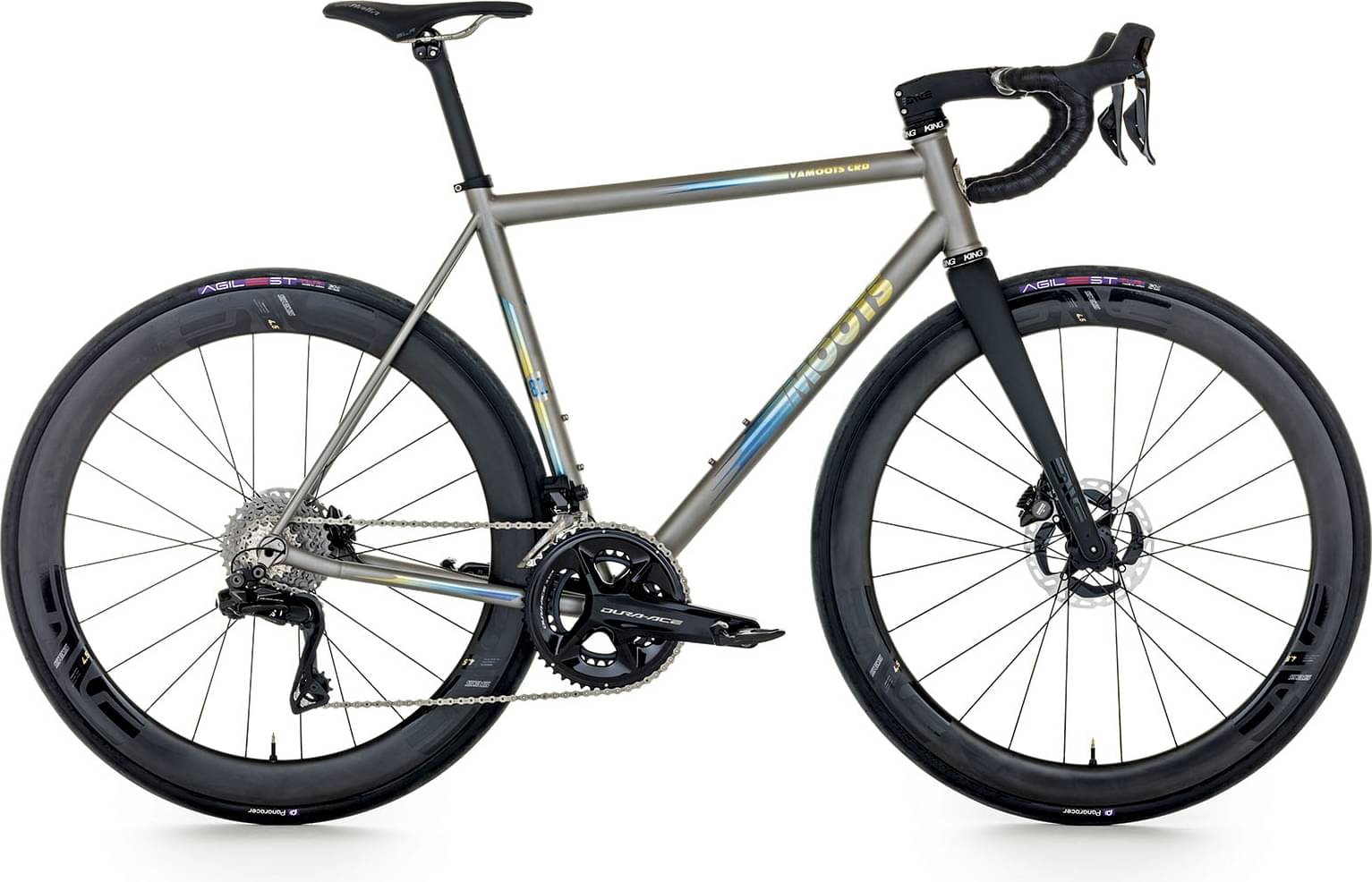

Moots Vamoots Crd Frameset 2024

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
- Road
- |
- Endurance
Frame Titanium
Fork ENVE
Suspension Rigid

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Suspension Fork

Enve Integrated Road Fork

Drivetrain

Rear Derailleur

FRAMESET

Cassette

FRAMESET

Crank

FRAMESET

Bottom Bracket

T47 86.5mm Threaded

Cockpit

Stem

Enve Integrated Stem

Handlebar

Enve AR

Seat

Seatpost

27.2

Fit data

Geometry

Numbers for sizing and ride feel.

Size	48cm	50cm	52cm	54cm	55cm	56cm	58cm	60cm	62cm
Stack Reach Ratio	1.54 mm	1.518 mm	1.498 mm	1.498 mm	1.507 mm	1.516 mm	1.528 mm	1.553 mm	1.568 mm
Bottom Bracket Height	262 mm	262 mm	264 mm	264 mm	264 mm	264 mm	264 mm	266 mm	266 mm
Rake	50 mm	50 mm	50 mm	43 mm	43 mm	43 mm	43 mm	43 mm	43 mm
Stack	535.5 mm	546.8 mm	558.3 mm	569.6 mm	580.1 mm	590.5 mm	599 mm	619 mm	639.1 mm
Reach	347.7 mm	360.1 mm	372.7 mm	380.2 mm	384.9 mm	389.6 mm	392.1 mm	398.5 mm	407.5 mm
Top Tube Length	495 mm	510 mm	530 mm	545 mm	555 mm	565 mm	575 mm	590 mm	605 mm
Seat Tube Angle	75 °	75 °	74.5 °	74 °	73.75 °	73.5 °	73 °	72.75 °	72.75 °
Seat Tube Length	450 mm	480 mm	500 mm	520 mm	530 mm	540 mm	550 mm	570 mm	590 mm
Head Tube Angle	71 °	71.5 °	72 °	72.5 °	72.75 °	73 °	73.25 °	73.5 °	73.75 °
Head Tube Length	100 mm	110 mm	120 mm	130 mm	140 mm	150 mm	160 mm	180 mm	200 mm
Chainstay Length	410 mm	410 mm	410 mm	410 mm	410 mm	410 mm	415 mm	415 mm	415 mm
Bottom Bracket Drop	74 mm	74 mm	72 mm	72 mm	72 mm	72 mm	72 mm	70 mm	70 mm
Standover Height	724 mm	744 mm	762 mm	780 mm	790 mm	800 mm	810 mm	831 mm	851 mm
Wheels	700	700	700	700	700	700	700	700	700
