Bike details
Overview
Key information split into simple groups.

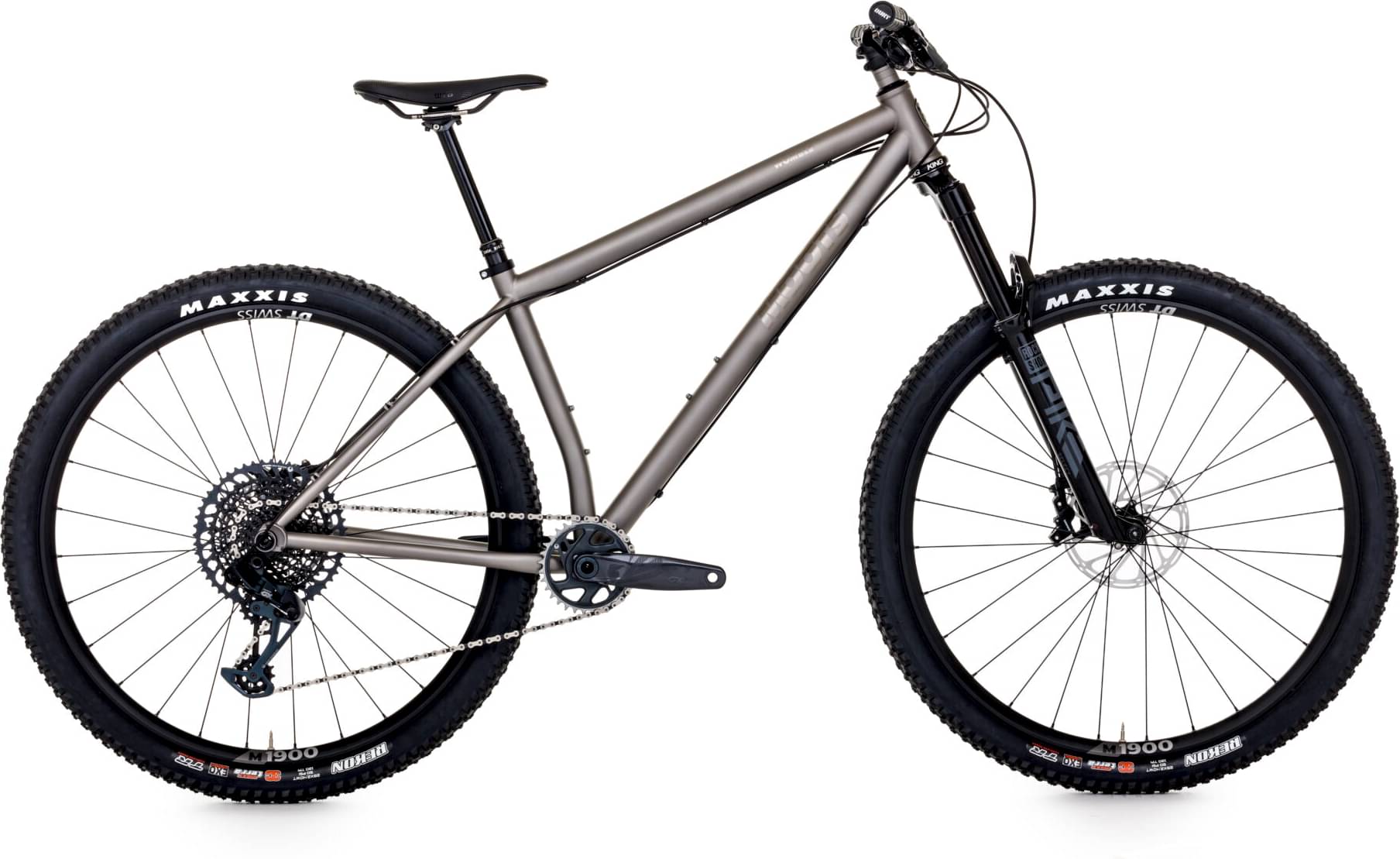

Bike summary
-
-
Frame Titanium -
Travel Front 140mm -
Fork RockShox Pike Ultimate
-
Groupset X0 -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox Pike Ultimate 140 Silver
Drivetrain
Rear Derailleur
X0
Cassette
X0
Crank
X0
Bottom Bracket
73mm Threaded
Wheels
Rims
Enve AM30
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Enve M6 Stem
Handlebar
Enve M6 7.5mm Rise
Seat
Seatpost
30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.484 mm | 1.404 mm | 1.362 mm | 1.287 mm |
| Bottom Bracket Height | 317 mm | 317 mm | 317 mm | 317 mm |
| Stack | 622 mm | 632 mm | 640 mm | 650 |
| Reach | 419 mm | 450 mm | 470 mm | 505 mm |
| Top Tube Length | 591 mm | 622 mm | 648 mm | 686 mm |
| Seat Tube Angle | 76.2 ° | 75.7 ° | 75.3 ° | 74.8 ° |
| Seat Tube Length | 394 mm | 432 mm | 470 mm | 533 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 57 mm | 57 mm |
| Standover Height | 765 mm | 792 mm | 823 mm | 869 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
