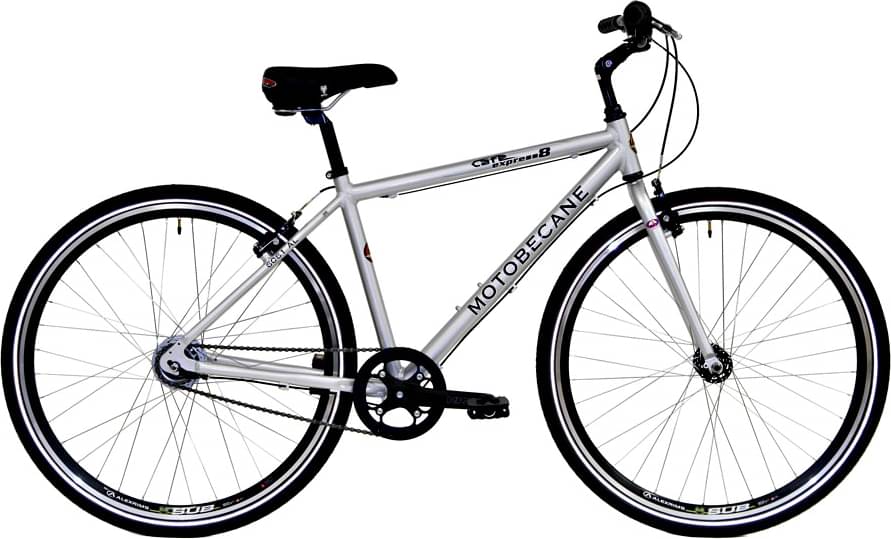

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Handmade Advanced 6061 Aluminum with Rear Rack Mounts (brazeons), water bottle mount
Suspension Fork
Motobecane Unicrown Dura-Forte Steel 1.125" steerer with fender eyelets
Rear Shock
n/a
Drivetrain
Shift Levers
Shimano Nexus Twist Shift with gear indicator
Cassette
(internal gearing) external cog 20T (8 gears total)
Crank
RPM by FSA Aluminum Arms with Black Finish, Single Ring 42T, 170mm / Square Taper, Sealed Bearing 68mm
Bottom Bracket
RPM by FSA Aluminum Arms with Black Finish, Single Ring 42T, 170mm / Square Taper, Sealed Bearing 68mm
Chain
KMC Z-51
Wheels
Rims
Alex SUB, Aero Profile, Double-wall Aluminum 700c Black, Bolt-on Shimano Nexus 8-speed Internal Rear, Aluminum Sealed Caged Ball Bearing bolt-on front hub, stainless steel spokes
Tires
Reflective Sidewall, Hybrid CST 700x40c black-wall, Presta Valve tubes
Brakes
Brakes
Tektro V Aluminum Alloy Black Finish
Brake Levers
Tektro Quartz Aluminum
Cockpit
Handlebar
Kalloy Aluminum with Comfort bend 26.0mm / Kalloy Adjustable Rise 0 to 60 degrees, Aluminum / Velo Dual Comfort Density
Headset
TH cage ball bearing headset
Fit data
Geometry
