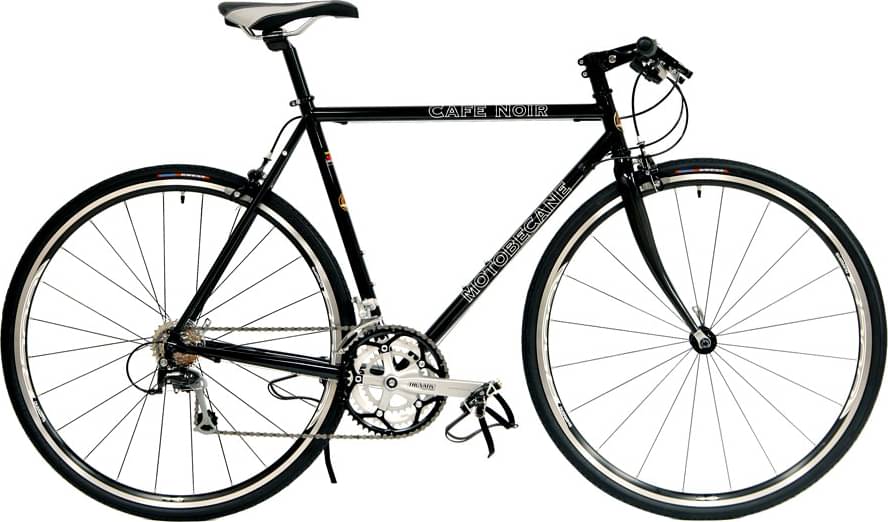

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Groupset 105 -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Handmade Reynolds 520 double-butted chromoly with Rear Rack Mounts, 2xH2O mounts
Suspension Fork
Kinesis Comp Carbon Fiber Taperblade (1" steerer)
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano FD-R443-B for triple front clamp-on, Shimano 105, 9Spd 5600, Top-Normal rear
Shift Levers
Shimano SL-R440-9 Precision Shifting 9spd
Cassette
Shimano Hyperglide 12-25 9 Speed
Crank
Current Spec TruVativ BlastBlack Alloy, 30x42x52T / Square Taper, Sealed Bearing 68mm
Bottom Bracket
Current Spec TruVativ BlastBlack Alloy, 30x42x52T / Square Taper, Sealed Bearing 68mm
Chain
KMC Z9000 for 9 Speed
Wheels
Rims
Shimano WH-R500 Doublewall aluminum rims, stainless steel spokes, radial laced front
Tires
Kenda Kwest, Road 700x28 / Presta valve
Brakes
Brakes
Dual Pivot Aluminum Alloy Polished Black Finish
Brake Levers
Tektro PowerV Aluminum Black Polish Finish
Cockpit
Handlebar
Kalloy Black Finish Aluminum with Comfort bend 26.0mm / Kalloy Adjustable Rise, Black Polish Aluminum, threadless, 1 1/8" / Velo Dual Comfort Density
Headset
TH cage ball bearing headset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm | 64cm |
|---|---|---|---|---|---|---|---|
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 576 mm | 582 mm | 584 mm | 586 mm | 596 mm | 600 mm | 610 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Top Tube Length | 515 mm | 530 mm | 550 mm | 560 mm | 570 mm | 590 mm | 610 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 610 mm | 640 mm |
| Head Tube Angle | 72 ° | 72 ° | 73.5 ° | 73.5 ° | 73.5 ° | 74 ° | 74 ° |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 976 mm | 982 mm | 984 mm | 986 mm | 996 mm | 1000 mm | 1010 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 742 mm | 754 mm | 771 mm | 790 mm | 810 mm | 836 mm | 860 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
