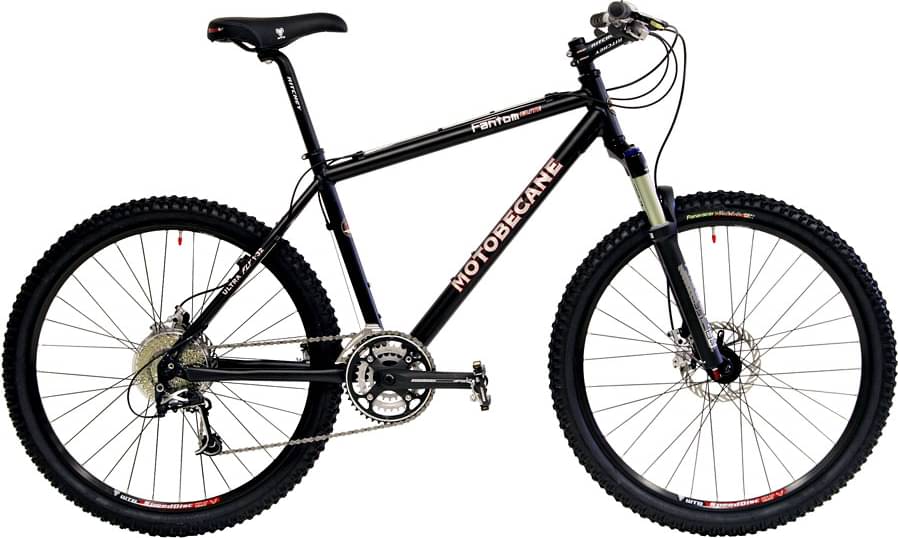

Motobecane Fantom Elite HT AM Trail XT / SLX 2025
2025 Mountain
Estimate price |
2,195$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Fork RockShox Recon Silver RL
-
Groupset XTR, XT -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Avid Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kinesis X6Series Aluminum 3.2lbs Nominal weight, replaceable rear derailleur hanger, 2x H2O bosses
Suspension Fork
RockShox Recon 351 WITH UTURN ADJUSTABLE TRAVEL (85-130MM) available Lockout, 1.125" threadless steerer tube
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano XT, 31.8 clamp, Shimano XTR Shadow, Low-profile design, SGS Long-cage, Top-Normal
Shift Levers
Shimano XT RapidFire Plus 27 speed, Trigger shifter
Cassette
Shimano HG cassette 9 speed 11-32T
Crank
FSA GammaDrive MegaEXO External Bearing 22/32/44T / FSA BB-1000 MegaEXO External Bearing System 68mm
Bottom Bracket
FSA GammaDrive MegaEXO External Bearing 22/32/44T / FSA BB-1000 MegaEXO External Bearing System 68mm
Chain
Z9000 super narrow 9 speed
Wheels
Rims
WTB SpeedDisc DoubleWall rims, Gravity Disc hubs with Quick Release, stainless steel spokes
Tires
Panaracer FireXC PRO 26x2.1 Blackwall, Kevlar Bead 60tpi, Presta Valve tubes.
Brakes
Brakes
Avid Elixir hydraulic disc brakes, Avid G3 160mm Cleansweep Rotors
Brake Levers
Avid Elixir hydraulic disc brake, Aluminum levers
Cockpit
Handlebar
Ritchey Rizer Severe Conditions Aluminum / Ritchey Comp Aluminum / WTB DualCompound
Headset
Ritchey Sealed Bearing, 1.125 inch threadless
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 18" | 20" | 22" |
|---|---|---|---|---|---|
| Bottom Bracket Height | 298 mm | 298 mm | 298 mm | 298 mm | 298 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Wheelbase | 1059 mm | 1067 mm | 1086 mm | 1105 mm | 1118 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
