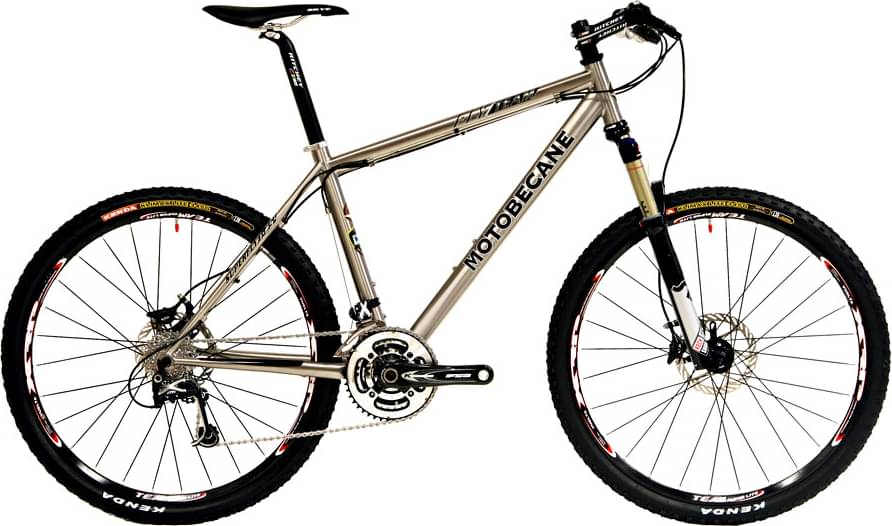

Motobecane FLY Team Titanium XC Shimano XTR 2024
2024 Mountain
Estimate price |
5,495$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Titanium -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XTR -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Avid Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Titanium 3AL/2.5V Butted and Geometric Multishaped tubes, 2xH2O Bosses (14" size has 1xH2O Bosses), S-Bend seatstays
Suspension Fork
Rockshox SID RACE 100mm Fork with CrownMounted MotionControl Damping/LockOut, 1.125" threadless aluminum steerer tube
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano XTR front derailleur 34.9 clamp, Shimano XTR Shadow, Low-profile design, RD-M972SGS, Long Cage, Top-Normal
Shift Levers
Shimano XTR Rapidfire Plus SL-M970, Multi-release, Trigger shifter
Cassette
Shimano CS-6500 cassette, 9 speed 11-27T
Crank
FSA KForce Light Carbon crankset 175mm, Machined aluminum rings 44/32/22T / Mega EXO External Bearing 68mm
Bottom Bracket
FSA KForce Light Carbon crankset 175mm, Machined aluminum rings 44/32/22T / Mega EXO External Bearing 68mm
Chain
KMC SL9 for 9 Speed
Wheels
Rims
Vuelta XRP Team Super Light Disc, Precision Bearings, Alloy nipples, Bladed stainless steel spokes
Tires
Kenda Klimax Light 1.95x26" Kevlar bead tires. Ultra-light Presta Valve tubes.
Brakes
Brakes
Avid Elixir CR Mag hydraulic disc brakes, Avid G3 160mm Cleansweep Rotors
Brake Levers
Avid Elixir CR Mag hydraulic disc brake, Carbon fiber levers
Cockpit
Handlebar
Ritchey WCS Aluminum 31.8mm / Ritchey WCS Aluminum 31.8mm clamp / Ritchey WCS Hex foam
Headset
FSA Orbit XLII precision bearing headset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14" | 16" | 18" | 20" | 22" |
|---|---|---|---|---|---|
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Rake | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm | 559 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 71.5 ° |
| Wheelbase | 1019 mm | 1031 mm | 1044 mm | 1077 mm | 1082 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
