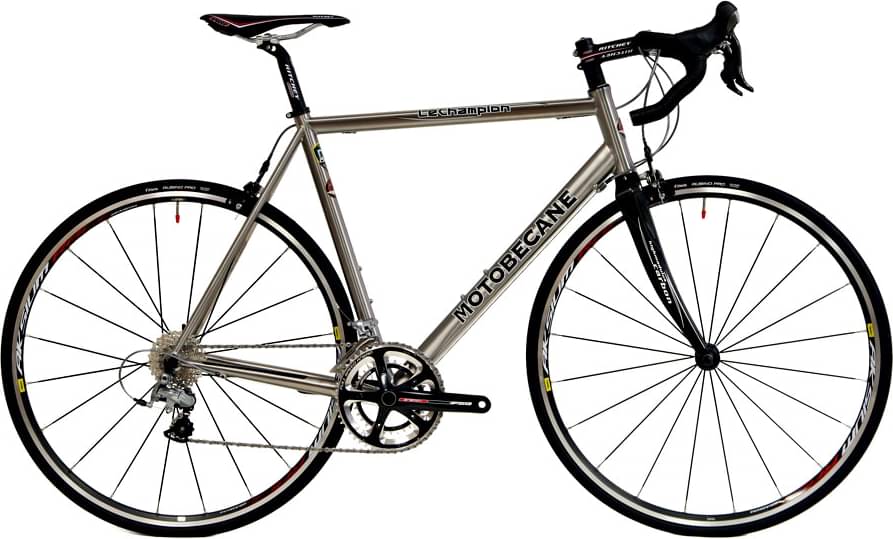

Motobecane LECHAMPION Ti RoadRace SH105 2024
2024 Road
Estimate price |
3,195$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Geometrically enhanced, butted 3/2.5 Titanium with replaceable derailleur hanger, 2x H2O bosses
Suspension Fork
AeroCarbon SL High Modulus Monocoque 3K Carbon Fiber with 1.125 inch Aluminum Steerer
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Ultegra 6700 10 Speed (20 Spd total) front and rear
Shift Levers
Shimano Ultegra 6700
Cassette
Shimano Ultegra CS6700 10 Speed 11-28T
Crank
FSA Energy 50/34T / FSA External Bearing Bottom Bracket
Bottom Bracket
FSA Energy 50/34T / FSA External Bearing Bottom Bracket
Chain
Shimano CN6700 Ultegra 10spd Chain
Wheels
Rims
Mavic Aksium Race black anodized aluminum, UB Control Machined Sidewalls
Tires
Vittoria Rubino PRO (folding bead) 700x23c (Continental tire option*) / Presta Valve tubes
Brakes
Brakes
Cane Creek SCR3 dual pivot aluminum calipers
Brake Levers
Shimano Ultegra ST6700
Cockpit
Handlebar
Ritchey PRO Butted Aluminum Ergo Bar 31.8mm OS / Ritchey PRO Aluminum 1.125 inch steerer, 31.8mm OS clamp
Headset
FSA IS2 Sealed Bearing Threadless 1.125 inch
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 53cm | 56cm | 59cm |
|---|---|---|---|---|---|
| Bottom Bracket Height | 268 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 575 mm | 580 mm | 590 mm | 600 mm | 620 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Top Tube Length | 535 mm | 540 mm | 550 mm | 572 mm | 585 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° | 73 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 165 mm | 185 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 970 mm | 975 mm | 985 mm | 995 mm | 1015 mm |
| Bottom Bracket Drop | 68 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
