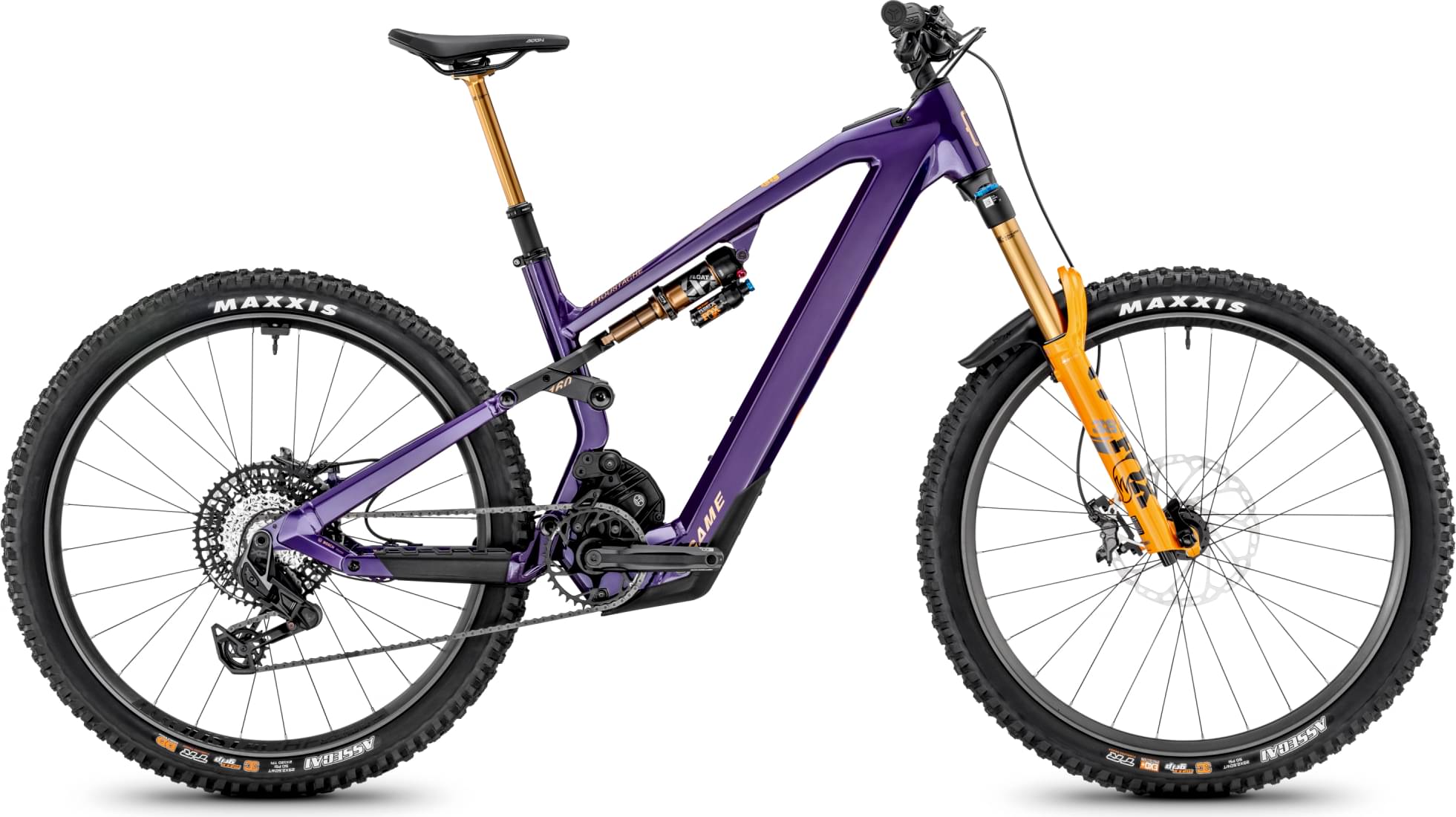

Moustache Game 160.9 Launch Edition 2024
2024 E-bike
Estimate price |
10,469$
Weight | 25.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube 750Wh, horizontal, Smart System -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Game, 6061 T4-T6 alloy, 160mm travel, custom integration of Bosch PowerTube battery and new CX drive unit, internal cable routing, 12x148mm, Boost
Suspension Fork
FOX, Float 38 Factory, GRIP X2 w/HSC/LSC/HSR/LSR, 170mm travel, 15x110mm Boost, 44mm offset, mini-fender mounted
Rear Shock
Fox, Float X, Factory, Kashima coating, 2 positions lever, rebound and compression adjustement, Moustache tune, 230-65mm, 160mm travel
Drivetrain
Rear Derailleur
SRAM, X0 AXS T-Type, 12-speed, electronic
Shift Levers
SRAM, AXS Pod, 12-speed
Cassette
SRAM, GX, XS-1275 12-speed, 10-52T
Crank
SRAM, T-Type, Narrow Wide, 36 teeth
Bottom Bracket
Bosch, press-fit
Chain
SRAM, X0 T-Type, 12-speed, 122 links
Pedals
alloy platform with reflectors
Wheels
Front Hub
Moustache by Mavic, 28H, Centerlock, 15x110mm, thru axle
Rear Hub
Moustache by Mavic, 28H, ID360, 12x148mm, thru axle
Rims
Moustache, asymmetric, Just_Carbon, 28 holes, 29", internal width 30mm, mounted with Tubeless valves & flap, triple thickness spokes, brass nuts with locking "Blue Nylon" insert
Tires
Maxxis, Assegai, 29x2.50, foldable, 3C MaxxGrip / DD / TR (Tubeless Ready)
Brakes
Brakes
Front: Shimano, XT BR-M8120, hydraulic disc, 4 pistons, Rear: Shimano, XT, BR-M8120, hydraulic disc, 4 pistons
Cockpit
Stem
Moustache, alloy, CNC, 40mm
Handlebar
Moustache, alloy, 780mm, 35mm, 30mm rise, 9° backsweep, 5° upsweep
Grips
SB3, Hornet
Headset
Acros, AZF-725, sealed bearings, internal routing, integrated multi-tool
Seat
Saddle
Fizik, Terra Aidon X5
Seatpost
Fox, Transfer, dropper-post w/ remote lever, 31.6mm, 120mm
Motor & Battery
Motor
Bosch, Performance Line CX, 250W, Smart System, UFI, 85Nm
Battery
Bosch, PowerTube 750Wh, horizontal, Smart System
Remote
Bosch, System Controller and Mini Remote, Smart System, integrated in the top tube, range and assistance mode
Charger
Bosch, 4Ah
