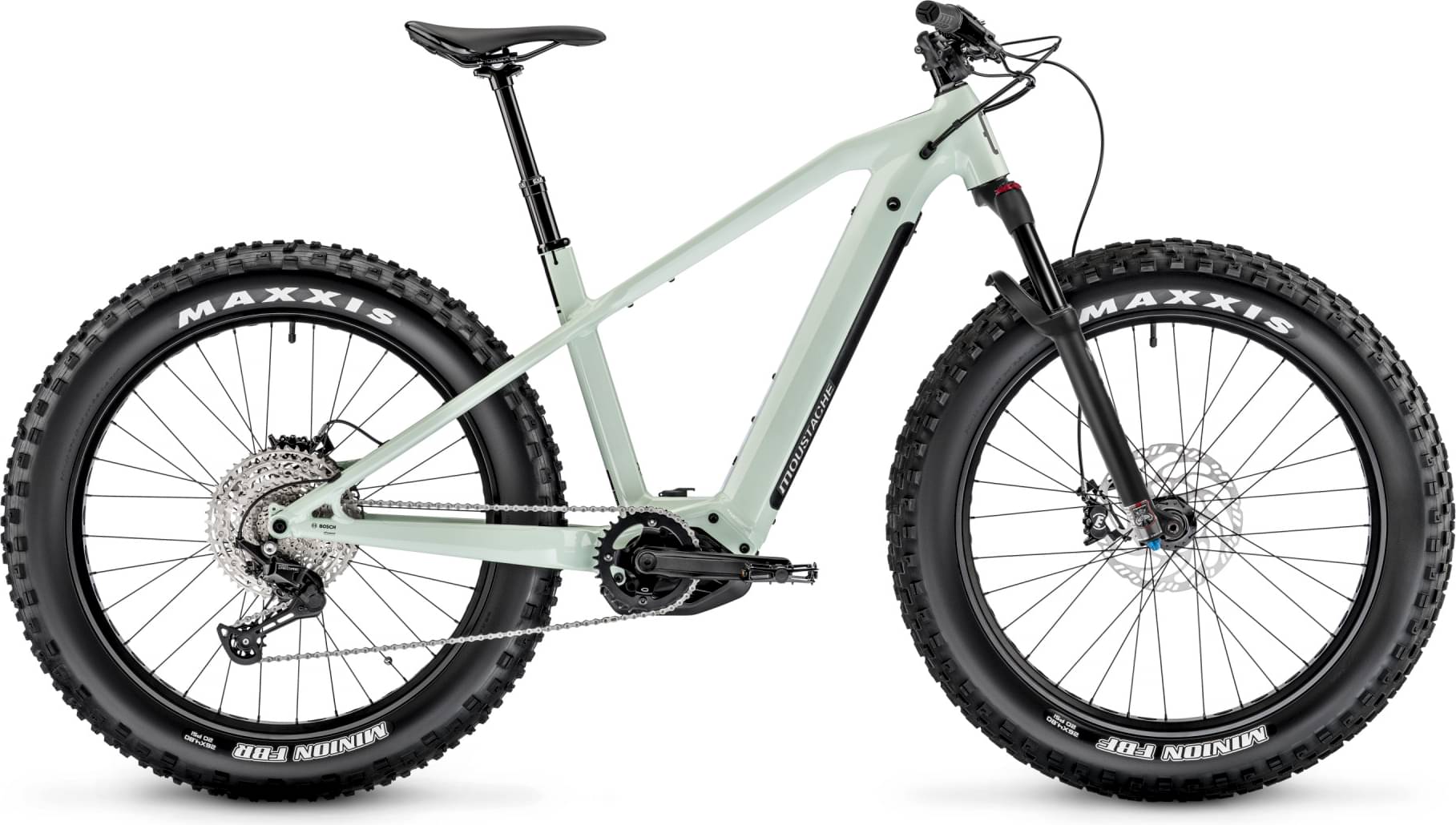

Moustache Samedi 26 FAT 4 2024
2024 E-bike
Estimate price |
6,979$
Weight | 25.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Manitou Mastodon Comp
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch, PowerTube 625Wh, horizontal, Smart System -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FAT 4, 6061 T4-T6 alloy, variable thickness hydroformed tubes, tapered headtube 1"1/8-1"1/2, Bosch PowerTube battery integration (Horizontal), compatible with 26 x 4.8 tires, 12x197mm rear hub
Suspension Fork
Manitou, Mastodon Comp Extended, external compression and rebound adjustment, 100mm travel, 15x150mm
Drivetrain
Rear Derailleur
Shimano, Deore, RD-M5100-SGS, 11-speed
Shift Levers
Shimano, Deore, SL-M5100-IR, 11-speed
Cassette
Shimano, Deore, CS-M5100, 11-speed, 11-51T
Crank
Narrow-Wide, 34 teeth, FAT specific
Bottom Bracket
Bosch, press-fit
Chain
SRAM, PC1110, 11-speed, 124 links
Pedals
alloy platform with reflectors
Wheels
Front Hub
Moustache, 32H, 15x150mm, thru axle
Rear Hub
Moustache, 32H, 12x197mm, thru axle
Rims
Moustache, alloy 6061E, welded, 32 holes, 26", internal width 80mm
Tires
Maxxis, Minion FBR, 26x4.80
Brakes
Brakes
Front: Shimano, BR-M6120, hydraulic disc, 4 pistons, Rear: Shimano, BR-M6120, hydraulic disc, 4 pistons
Cockpit
Stem
Moustache, 3D forged Aluminum, 60mm
Handlebar
Moustache, alloy, 760mm, 15mm rise, 9° backsweep, 5° upsweep
Grips
SB3, Race
Headset
FSA, No 57B-1
Seat
Saddle
Moustache, Ergonomic
Seatpost
EXA, 900i, dropper w/remote lever, 31.6mm
Motor & Battery
Motor
Bosch, Performance Line CX, 250W, Smart System, 85Nm
Battery
Bosch, PowerTube 625Wh, horizontal, Smart System
Remote
Bosch, Purion 200, Smart System, compact, color screen, navigation, « Walk assist »
Charger
Bosch, 4Ah
