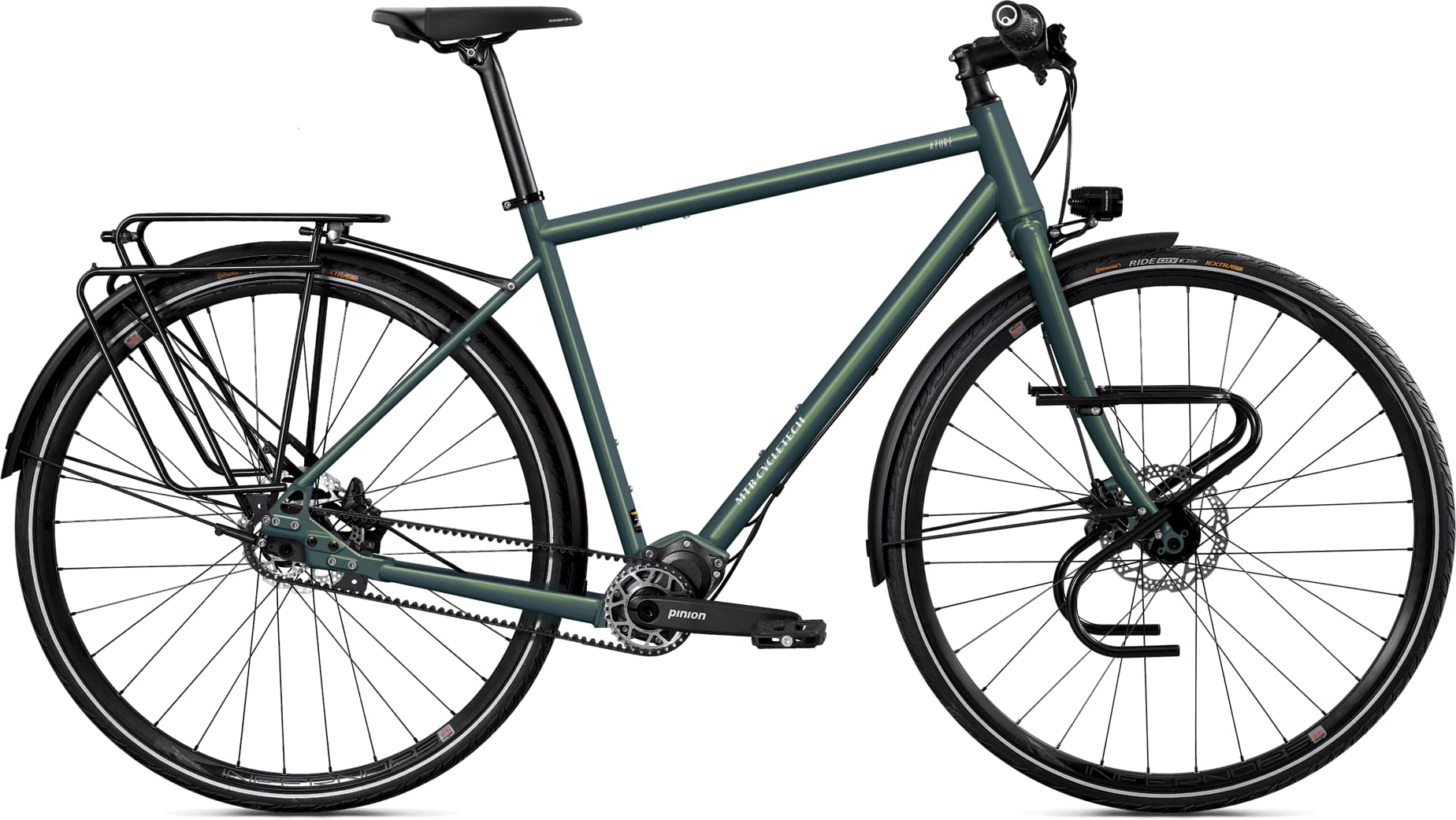

mtbcycletech MTB Cycletech Azure Pinion 2024
2024 Road
Estimate price |
4,652$
Weight | 14.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Pinion Reynolds 725 Steel (Man M, L and XL)
Suspension Fork
tapered, Aluminium, TA 12*100 (*1,5), externe Kabel- und Zugverlegung, Montageösen
Drivetrain
Shift Levers
The Ronin P is available with a gearshift in 12 or 18 gears, which offers a greater development width and more optimal gear jumps compared to a derailleur gearshift. It is also compact, low-maintenance and integrated in a perfect position.
Bottom Bracket
Pinion, press-fit
Wheels
Rims
Tires 42-622 (freely configurable) / 32 DT Swiss spokes / nipples, hand-spoked in-house. Installation dimensions for derailleur gears 12*100 (*1.5) / 12*142 (*1.5) installation dimensions for hub gears 10*135
Brakes
Brakes
Shimano Trekking 180/160mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.536 mm | 1.529 mm | 1.528 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm |
| Front Center | 629 mm | 649 mm | 670 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 68 mm | 68 mm | 68 mm |
| Stack | 605 mm | 624 mm | 645 mm |
| Reach | 394 mm | 408 mm | 422 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1064 mm | 1084 mm | 1105 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
