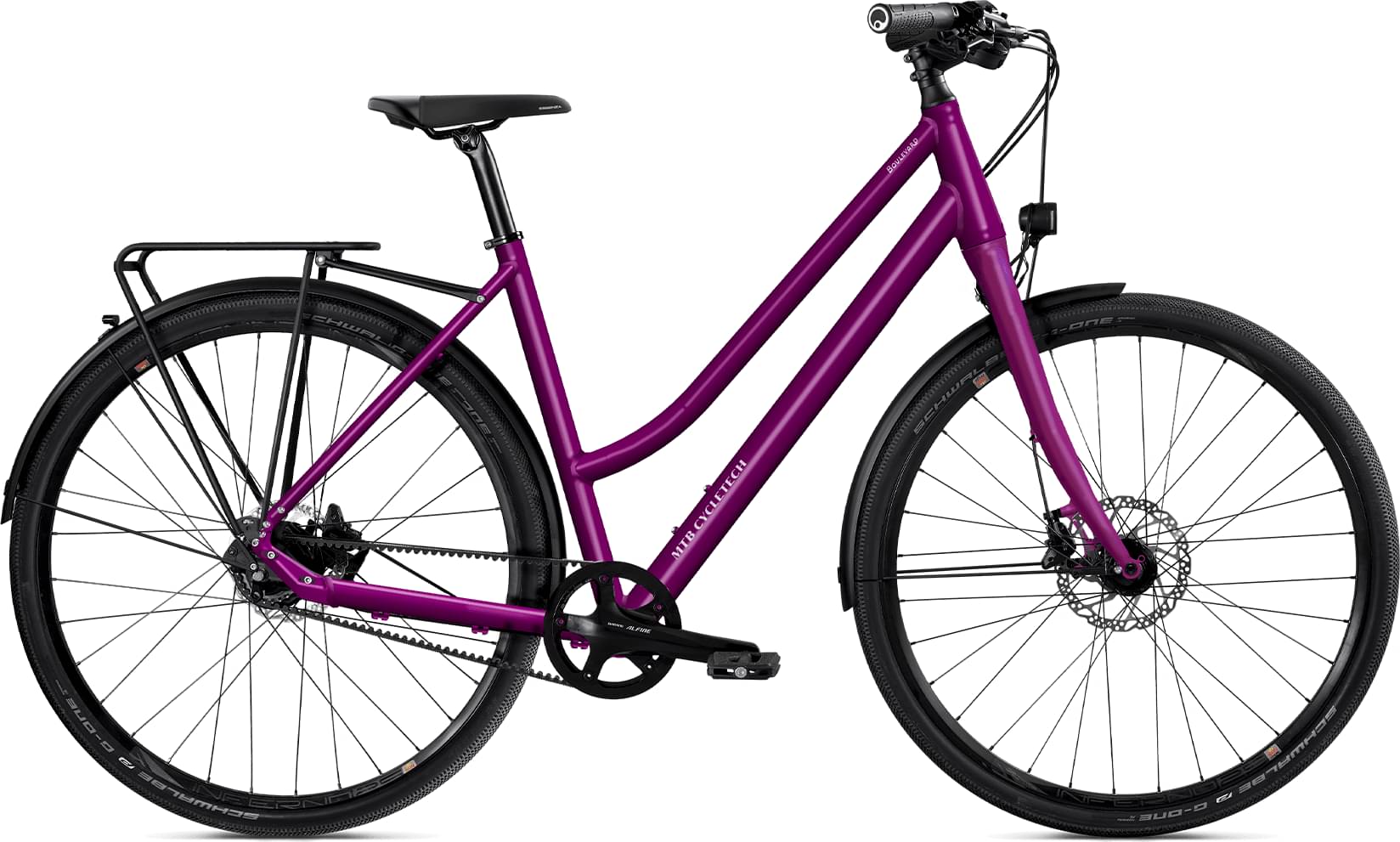

mtbcycletech MTB Cycletech Boulevard lady 2024
2024 Urban
Estimate price |
1,860$
Weight | 13.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum (Lady S, M, L)
Suspension Fork
Thanks to round blades, the Boulevard aluminum fork offers enormous agility and precise steering behavior with sufficient comfort.
Wheels
Rims
Tires 40-622 (freely configurable) / 32 DT Swiss spokes / nipples, hand-spoked in-house. Installation dimensions for derailleur gears 12*100 (*1.5) / 12*142 (*1.5) Installation dimensions for hub gears 10*135
Brakes
Brakes
Shimano Trekking 180/160mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.672 mm | 1.661 mm | 1.652 mm |
| Front Center | 607 mm | 622 mm | 638 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 66 mm | 66 mm | 66 mm |
| Stack | 627 mm | 641 mm | 656 mm |
| Reach | 375 mm | 386 mm | 397 mm |
| Top Tube Length | 550 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1043 mm | 1058 mm | 1074 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
