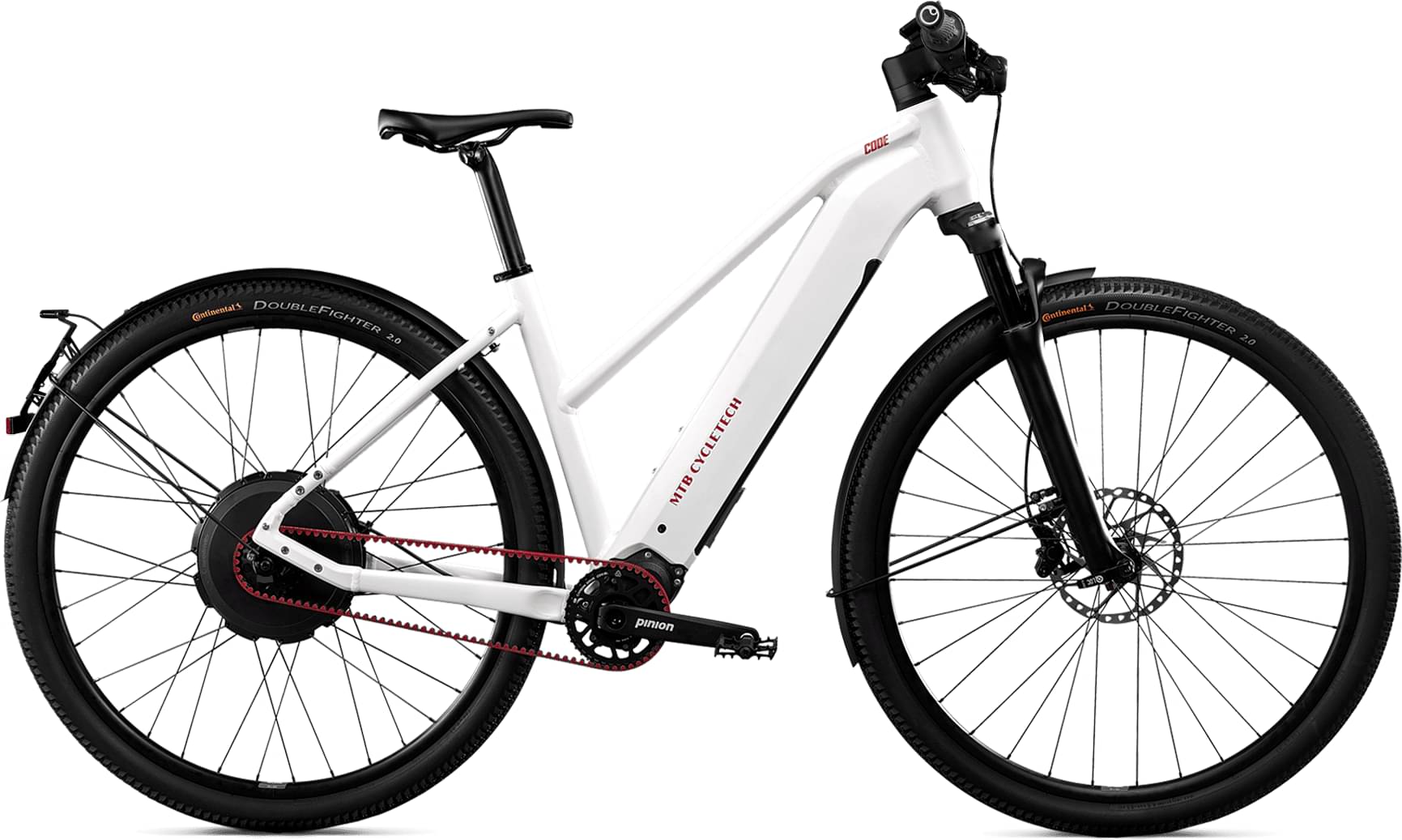

mtbcycletech MTB Cycletech Code Lady 2024
2024 E-bike
Estimate price |
7,561$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Pinion -
Suspension Hardtail -
Motor hub-drive -
Battery The Code uses an integrated lithium-ion down tube battery from BMZ Germany. The central installation position ensures that there are no noticeable effects on driving behavior. The battery of the Code 25 has an output of 626 Wh, that of the Code 45 650 Wh. -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Code GP aluminum 6061-T6 (lady S/M and L)
Suspension Fork
Suntour MobiE-45/25 suspension fork, 75mm travel, 15*100 thru axle (subject to change)
Drivetrain
Shift Levers
The proven bottom bracket gear from Pinion with 9, 12* or 18 gears offers a greater development width and optimized gear jumps compared to a conventional derailleur gear. In addition, Pinion is compact, low-maintenance and integrated in a perfect position on the frame.
Wheels
Rims
Tires 60-622 (freely configurable) / 32 DT Swiss spokes / nipples, hand-spoked in-house, installation dimensions 15*100 TA/ Neodrives 12*142 (*1.5)
Brakes
Brakes
Magura MT5 203/180 mm (subject to change)
Motor & Battery
Motor
The direct-running, gearless rear motor is the heart of the “neodrives system”. The latest technologies make it even more robust and powerful. The Z20 (25km/h) and Z20RS (45km/h) impress with their smooth running and low maintenance of the components.
Battery
The Code uses an integrated lithium-ion down tube battery from BMZ Germany. The central installation position ensures that there are no noticeable effects on driving behavior. The battery of the Code 25 has an output of 626 Wh, that of the Code 45 650 Wh.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.616 mm | 1.547 mm |
| Front Center | 649 mm | 680 mm |
| Rake | 45 mm | 45 mm |
| Trail | 77 mm | 77 mm |
| Stack | 643 mm | 656 mm |
| Reach | 398 mm | 424 mm |
| Top Tube Length | 575 mm | 606 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 490 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 143 mm | 156 mm |
| Chainstay Length | 453 mm | 453 mm |
| Wheelbase | 1090 mm | 1121 mm |
| Bottom Bracket Drop | 80 mm | 80 mm |
| Wheels | 29" | 29" |
