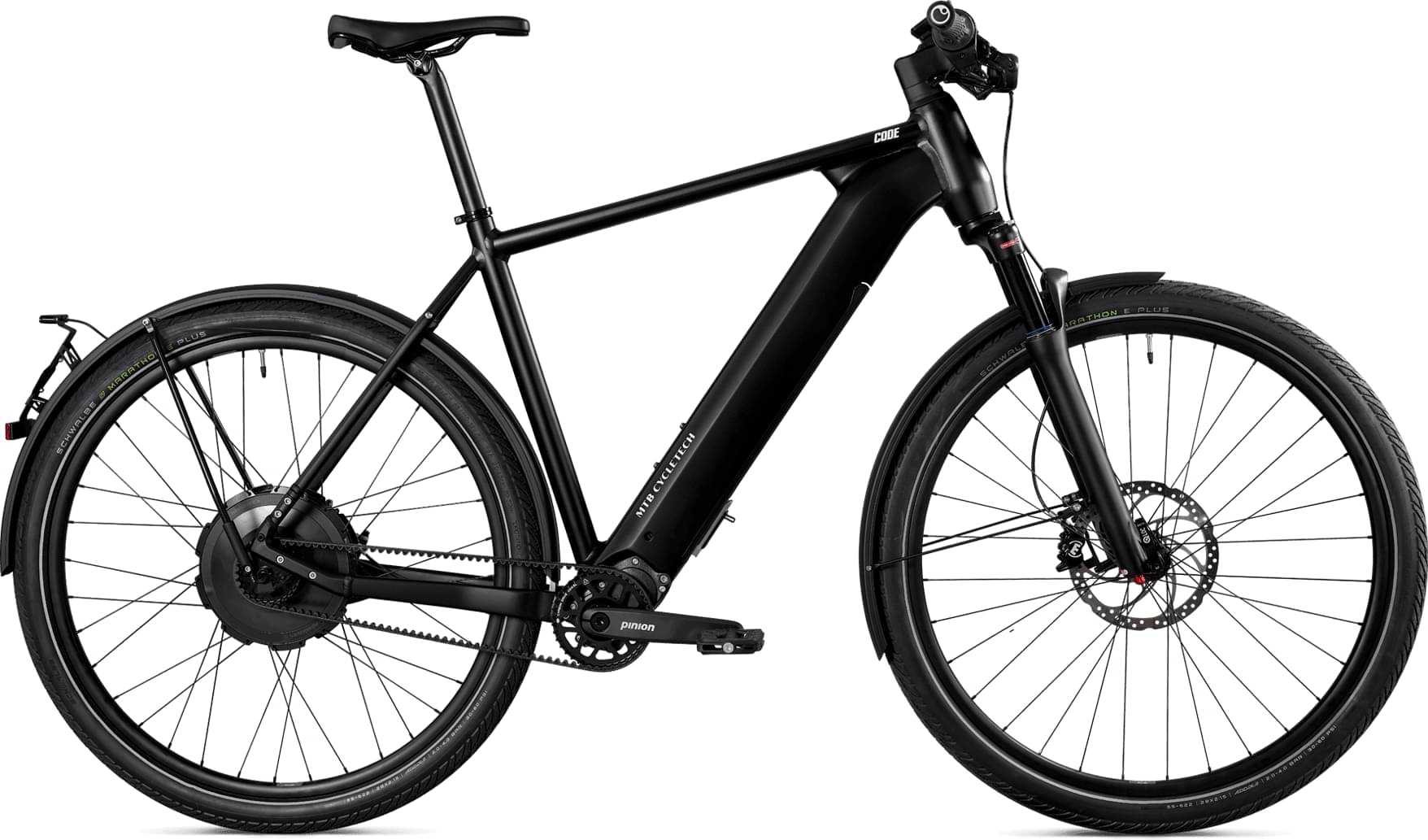

mtbcycletech MTB Cycletech Code Man 2024
2024 E-bike
Estimate price |
7,561$
Weight | 26.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour
-
Groupset Pinion -
Suspension Hardtail -
Motor hub-drive -
Battery The Code uses an integrated lithium-ion down tube battery from BMZ Germany. The central installation position ensures that there are no noticeable effects on driving behavior. The battery of the Code 25 has an output of 626 Wh, that of the Code 45 650 Wh. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Code GP aluminum 6061-T6 (man S, M, L and XL)
Suspension Fork
Suntour Mobi-E45/25 suspension fork, 75mm travel, 15*100 thru axle (subject to change)
Drivetrain
Shift Levers
The proven bottom bracket gear from Pinion with 9, 12* or 18 gears offers a greater development width and optimized gear jumps compared to a conventional derailleur gear. In addition, Pinion is compact, low-maintenance and integrated in a perfect position on the frame.
Wheels
Rims
Tires 60-622 (freely configurable) / 32 DT Swiss spokes / nipples, hand-spoked in-house, installation dimensions 15*100 TA/ Neodrives 12*142 (*1.5)
Brakes
Brakes
Magura MT5 203/180 mm (subject to change)
Motor & Battery
Motor
The direct-running, gearless rear motor is the heart of the “neodrives system”. The latest technologies make it even more robust and powerful. The Z20 (25km/h) and Z20RS (45km/h) impress with their smooth running and low maintenance of the components.
Battery
The Code uses an integrated lithium-ion down tube battery from BMZ Germany. The central installation position ensures that there are no noticeable effects on driving behavior. The battery of the Code 25 has an output of 626 Wh, that of the Code 45 650 Wh.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.533 mm | 1.491 mm | 1.459 mm | 1.44 mm |
| Front Center | 651 mm | 675 mm | 697 mm | 717 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 76 mm | 77 mm | 76 mm |
| Stack | 624 mm | 635 mm | 648 mm | 661 mm |
| Reach | 407 mm | 426 mm | 444 mm | 459 mm |
| Top Tube Length | 580 mm | 602 mm | 624 mm | 642 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 495 mm | 535 mm | 565 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 122 mm | 134 mm | 148 mm | 162 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1092 mm | 1116 mm | 1138 mm | 1158 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
