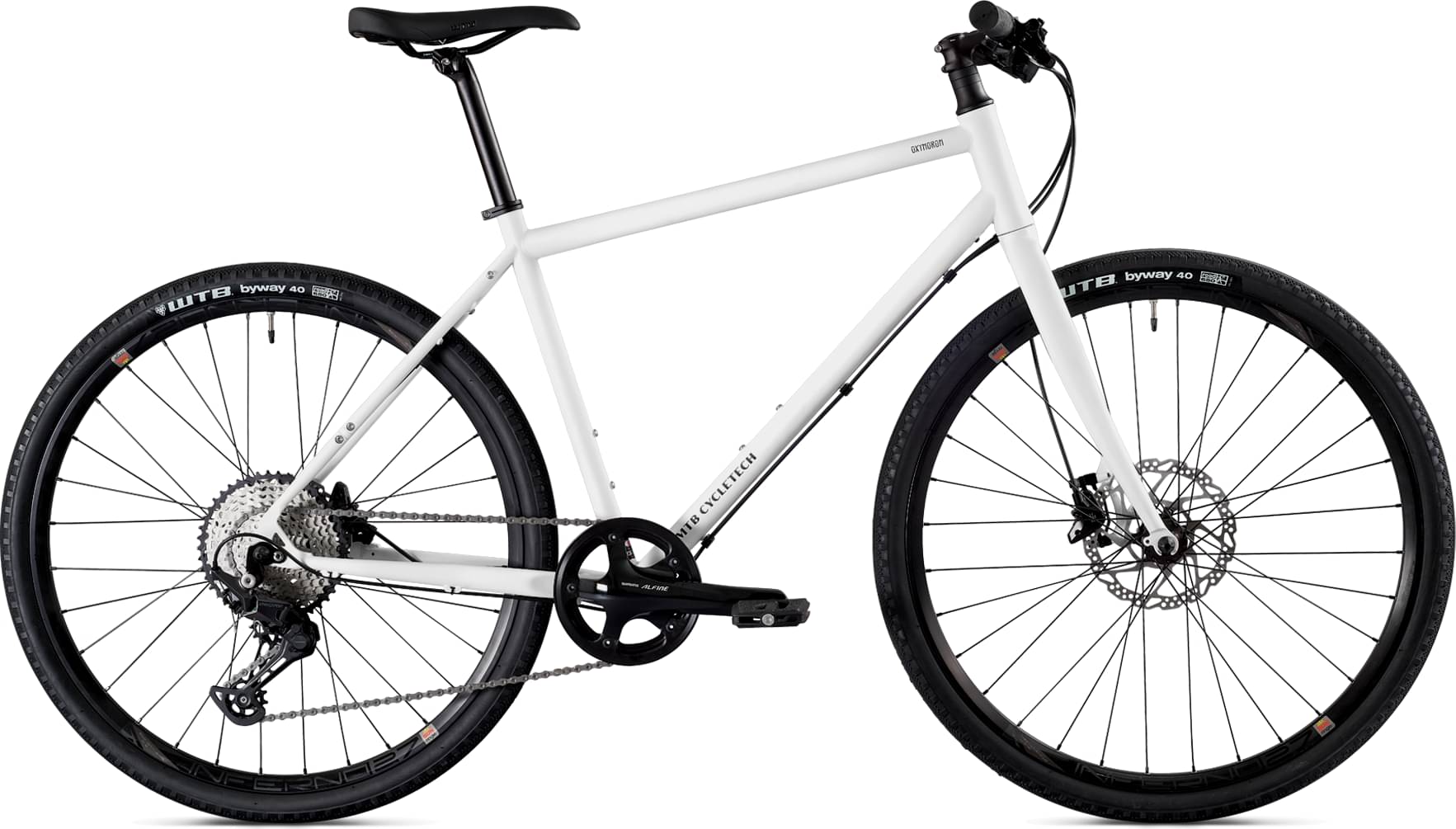

mtbcycletech MTB Cycletech Oxymoron 2024
2024 Urban
Estimate price |
2,558$
Weight | 14.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Cr-Mo 4130 steel (XS, S, M, L and XL)
Suspension Fork
The Oxymoron fork is made of lightweight aluminum, which, thanks to straight blades, allows the Oxymoron to steer agilely and directly through the city.
Wheels
Rims
Tires 40-584 (freely configurable) / 32 DT Swiss spokes / nipples, hand-spoked in-house, installation dimensions QR 9*100 / QR 9*135 or 10*136 (hub gear)
Brakes
Brakes
Shimano Trekking 180/160mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.831 mm | 1.371 mm | 1.319 mm | 1.32 mm | 1.381 mm |
| Front Center | 575 mm | 621 mm | 623 mm | 642 mm | 650 |
| Rake | -5 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 112 mm | 37 mm | 57 mm | 58 mm | 56 mm |
| Stack | 683 mm | 536 mm | 542 mm | 561 mm | 602 mm |
| Reach | 373 mm | 391 mm | 411 mm | 425 mm | 436 mm |
| Top Tube Length | 525 mm | 555 mm | 580 mm | 600 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 470 mm | 505 mm | 535 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 73 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 165 mm | 195 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 993 mm | 1039 mm | 1041 mm | 1060 mm | 1069 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
