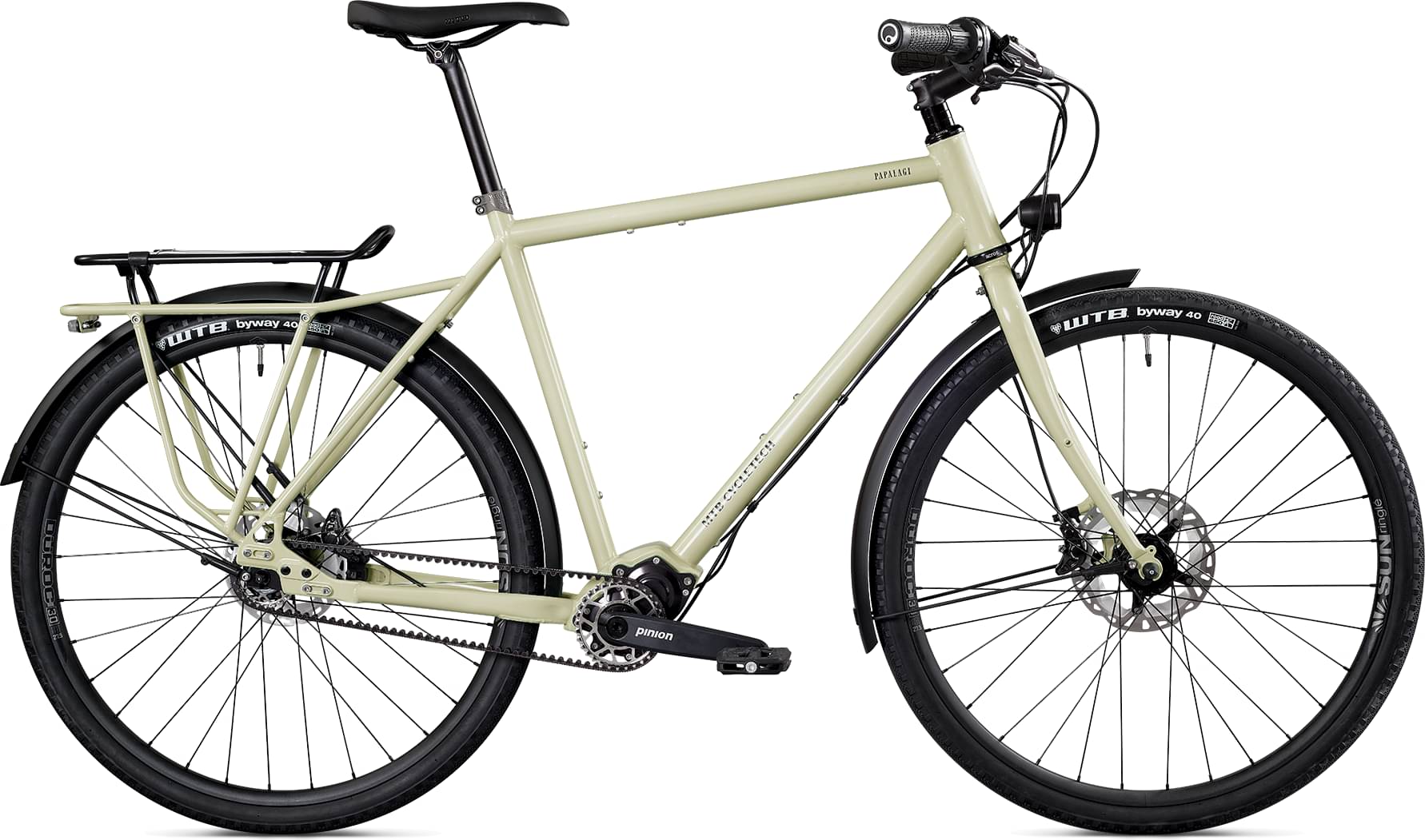

mtbcycletech MTB Cycletech Papalagi GPi 2024
2024 Road
Estimate price |
5,118$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Groupset Pinion -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
GPI Reynolds 853 Steel Man (XS, S, M, L and XL)
Suspension Fork
Our Papalagi tapered rigid fork is made of high-quality cromoly steel. Thanks to the continuous inserts for lowrider carriers, it can handle even the heaviest pieces of luggage.
Drivetrain
Shift Levers
The proven bottom bracket gear from Pinion with 9, 12 or 18 gears offers a greater development width and optimized gear jumps compared to a conventional derailleur gear. In addition, Pinion is compact, low-maintenance and integrated in a perfect position on the frame.
Wheels
Rims
Tire 48-584 (freely configurable) / 32 DT Swiss spokes / nipples, hand-spoked in-house, installation dimensions QR9*100 / QR9*135
Brakes
Brakes
Shimano Trekking 180/160mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.464 mm | 1.45 mm | 1.446 mm | 1.49 mm | 1.54 mm |
| Front Center | 602 mm | 619 mm | 641 mm | 658 mm | 670 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 70 mm | 69 mm | 67 mm | 67 mm | 65 mm |
| Stack | 543 mm | 561 mm | 580 mm | 608 mm | 639 mm |
| Reach | 371 mm | 387 mm | 401 mm | 408 mm | 415 mm |
| Top Tube Length | 530 mm | 550 mm | 570 mm | 585 mm | 600 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 465 mm | 505 mm | 545 mm | 575 mm | 605 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° | 70.5 ° |
| Head Tube Length | 105 mm | 122 mm | 142 mm | 172 mm | 202 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1029 mm | 1046 mm | 1068 mm | 1085 mm | 1097 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
