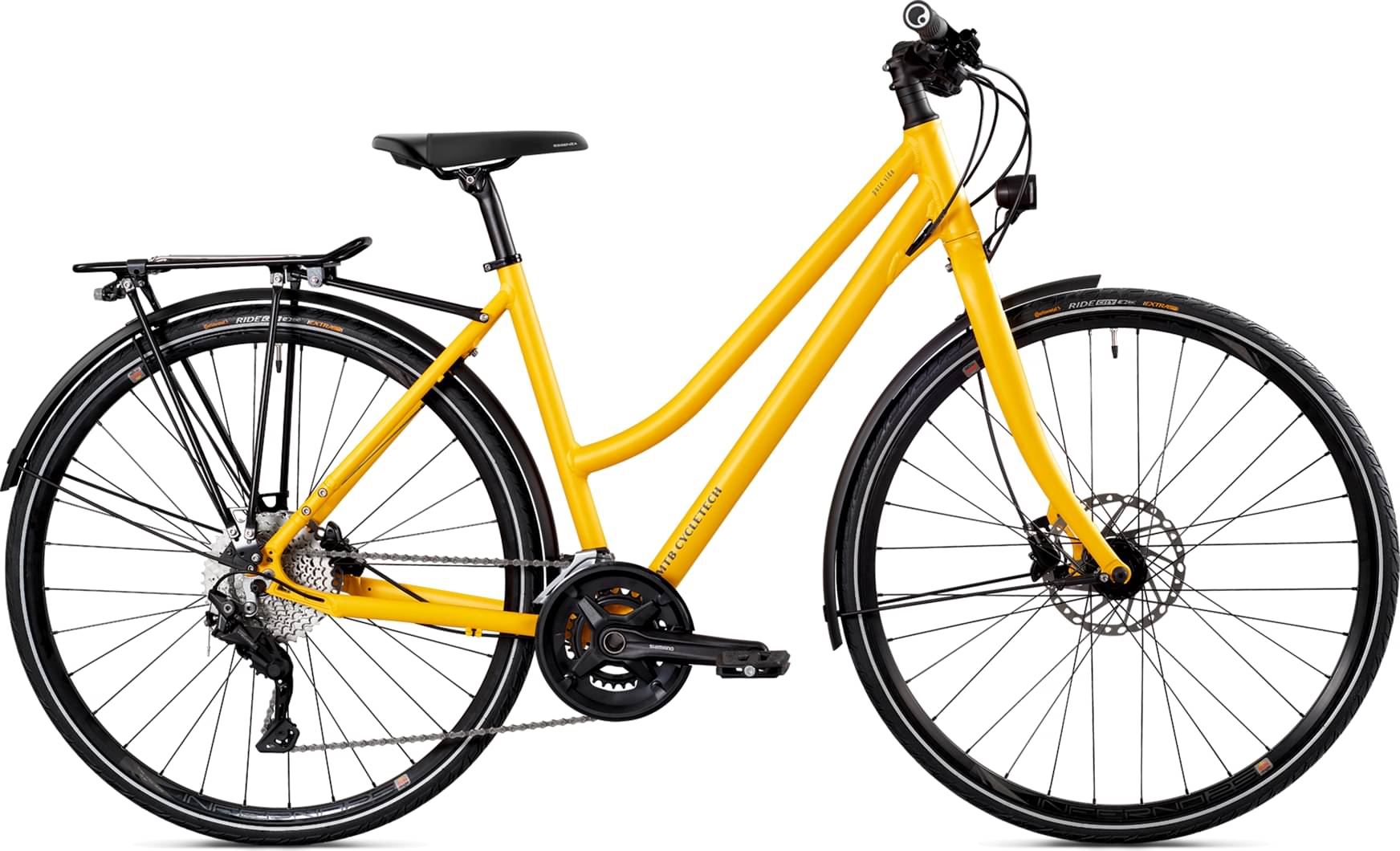

mtbcycletech MTB Cycletech Pura Vida lady 2024
2024 Urban
Estimate price |
2,442$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum 6061-T6 (Lady S, M and L)
Suspension Fork
The aluminum fork of the Pura Vidas allows your bike to be steered skillfully through the city without sacrificing comfort.
Wheels
Rims
Tire 40-622 (freely configurable) / 32 DT Swiss spokes / nipples, hand-spoked in-house, installation dimensions QR9*100 / QR9*135
Brakes
Brakes
Shimano Trekking 180/160mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.627 mm | 1.643 mm | 1.663 mm |
| Front Center | 618 mm | 618 mm | 633 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 66 mm | 69 mm | 56 mm |
| Stack | 610 mm | 626 mm | 642 mm |
| Reach | 375 mm | 381 mm | 386 mm |
| Top Tube Length | 550 mm | 560 mm | 570 mm |
| Seat Tube Angle | 72 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 130 mm | 154 mm | 160 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1054 mm | 1054 mm | 1069 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
