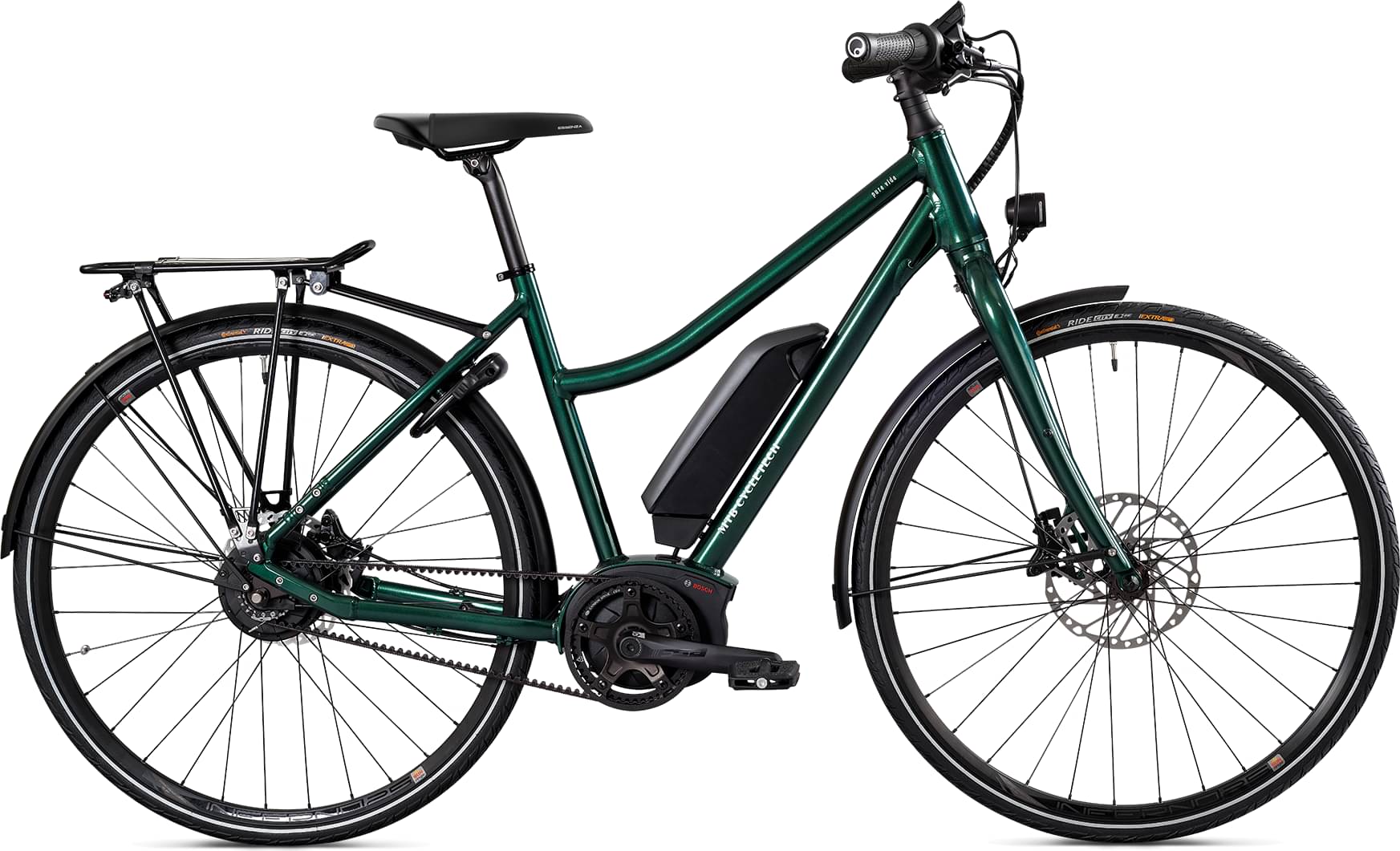

mtbcycletech MTB Cycletech Pura Vida Luz lady 2024
2024 E-bike
Estimate price |
4,587$
Weight | 22.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid -
Motor mid-drive -
Battery The attached Bosch Powerpack battery has a capacity of 500 Wh. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
PV Luz aluminum, BOSCH (lady S, M, and L)
Suspension Fork
standard, AL 6061, QR 9*100, externe Kabel- und Zugverlegung
Drivetrain
Bottom Bracket
Bosch, press-fit
Wheels
Rims
45-622 (freely configurable), 32 DT Swiss spokes / nipples, hand-spoked in-house, installation dimensions of derailleur gears: QR9*100 / QR9*135, installation dimensions of hub gears: 10*135
Brakes
Brakes
Shimano Trekking 180/160mm
Motor & Battery
Motor
The Pura Vida Luz is available in a 45 km/h version with the G3 Performance Speed motors.
Battery
The attached Bosch Powerpack battery has a capacity of 500 Wh.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.627 mm | 1.643 mm | 1.663 mm |
| Front Center | 597 mm | 597 mm | 612 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 87 mm | 90 mm | 77 mm |
| Stack | 610 mm | 626 mm | 642 mm |
| Reach | 375 mm | 381 mm | 386 mm |
| Top Tube Length | 550 mm | 560 mm | 570 mm |
| Seat Tube Angle | 72 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 490 mm | 540 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1054 mm | 1054 mm | 1069 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
