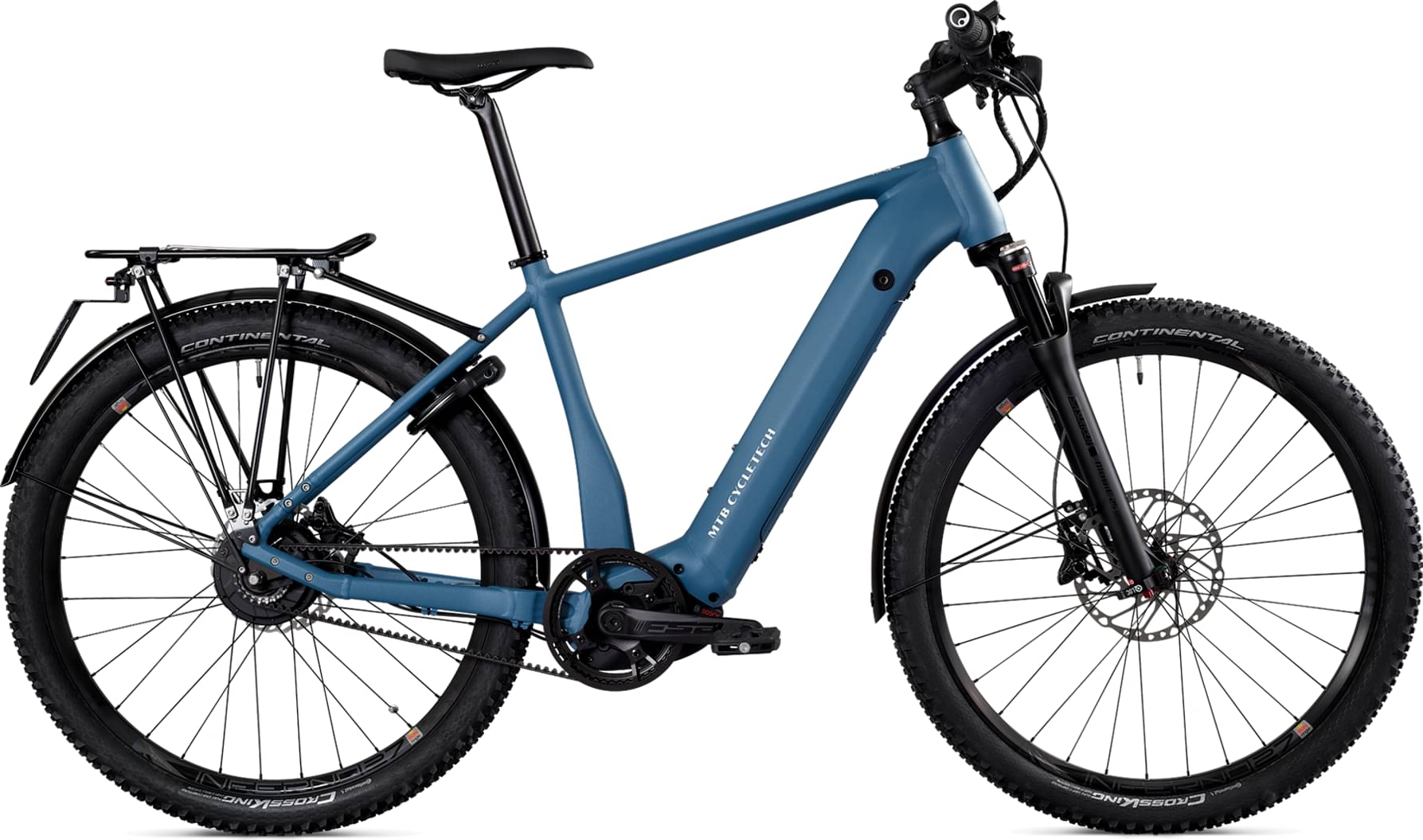

mtbcycletech MTB Cycletech Yak 2024

2024 E-bike
Estimate price | 4,652$
Weight | 22.4 kg
E-bike
Open compare Use advisor
Mtbcycletech Yak 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 27.5"
  • Suspension Rigid
  • Motor Bosch mid-drive
  • Battery The Powertube battery with a capacity of 500 Wh is integrated into the down tube, but can be easily removed if necessary.
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    158cm - 170cm

  • MD

    168cm - 179cm

  • LG

    176cm - 187cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Aluminum, Bosch G4, man (S, M and L)

Suspension Fork

tapered, AL 6061, TA 15*100 (*1,5), externe Kabel- und Zugverlegung

Drivetrain

Bottom Bracket

Bosch, press-fit

Wheels

Rims

60-584 (freely configurable), 32 DT Swiss spokes / nipples, hand-spoked in-house, installation dimensions of derailleur gears: 15*100 (*1.5) / QR9*135, installation dimensions of hub gears: 10*135

Brakes

Brakes

Shimano Trekking 180/160mm

Motor & Battery

Motor

We offer the Yak in both a 45 km/h version with Bosch Generation 4 and a 25 km/h version with Bosch Generation 3 drives.

Battery

The Powertube battery with a capacity of 500 Wh is integrated into the down tube, but can be easily removed if necessary.

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLG
Stack Reach Ratio
1.498 mm1.459 mm1.429 mm
Bottom Bracket Height
283 mm283 mm283 mm
Front Center
683 mm699 mm729 mm
Rake
46 mm46 mm46 mm
Trail
102 mm94 mm95 mm
Stack
605 mm620 mm640 mm
Reach
404 mm425 mm448 mm
Top Tube Length
555 mm580 mm607 mm
Seat Tube Angle
74 °74 °74 °
Seat Tube Length
450 mm480 mm520 mm
Head Tube Angle
67 °68 °68 °
Head Tube Length
127 mm138 mm160 mm
Chainstay Length
460 mm460 mm460 mm
Wheelbase
1134 mm1150 mm1180 mm
Bottom Bracket Drop
72 mm72 mm72 mm
Wheels27"27"27"
Rider Min Height158 cm168 cm176 cm
Rider Max Height170 cm179 cm187 cm
