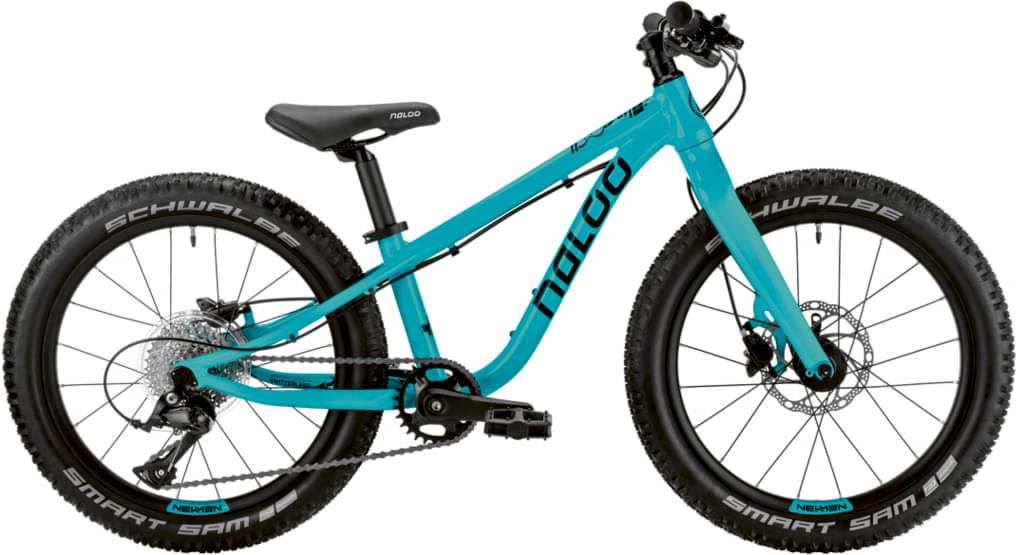

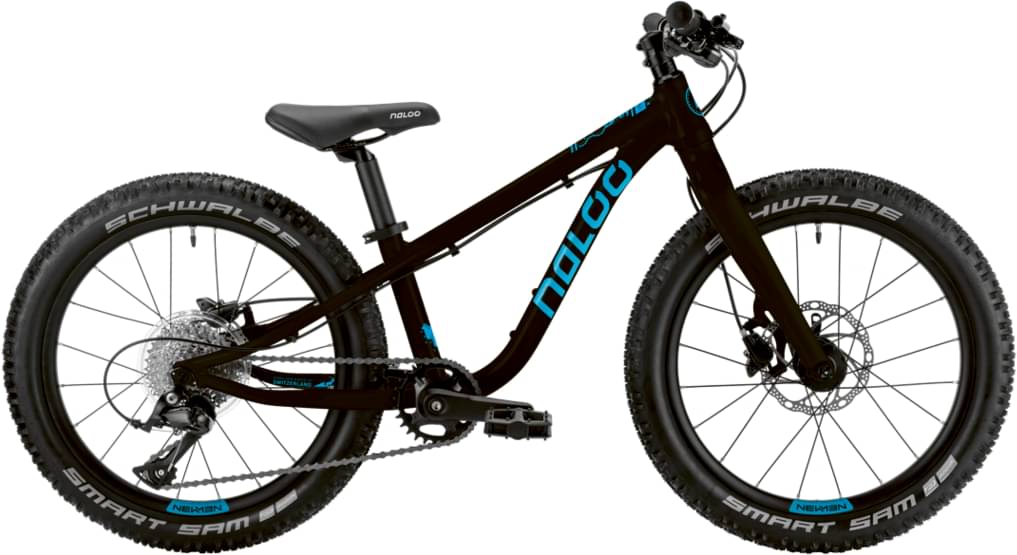

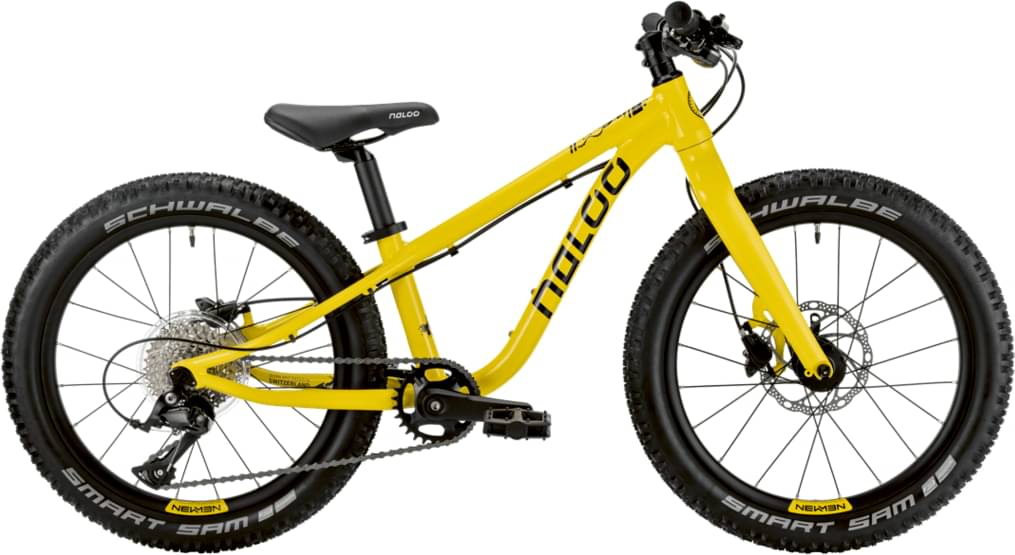

naloo HILL BILL Mk2 20″ 2024
2024 Youth
Estimate price |
1,023$
Weight | 8.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Groupset Sora, Alivio -
Suspension Rigid -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lightweight and high quality custom butted 6061 aluminum, 12mm thru axle, tapered headset
Suspension Fork
Aluminum rigid fork, tapered 1 1/8" - 1.5"
Drivetrain
Rear Derailleur
Shimano Sora, 9-speed
Shift Levers
Shimano Alivio Rapidfire Plus, 9-speed
Cassette
Shimano HG-400 11-32, 9-speed
Crank
Leichte Aluminium Kurbel mit extra schmalem Q-Faktor 149mm, 114mm Länge, 28T Direct Mount Narrow Wide Kettenblatt
Pedals
VP-225
Wheels
Front Hub
Aluminum hubs with sealed industrial bearings
Rear Hub
Aluminum hubs with sealed industrial bearings
Rims
NEWMEN X.A.25, 20 holes, tubeless ready
Tires
Schwalbe Smart Sam, 20x2.35
Brakes
Brakes
Shimano MT-200 brakes (front 160mm/rear 140mm)
Cockpit
Stem
3D forged 6061T6 aluminum, 31.8mm clamp, length 40mm, angle +7°
Handlebar
Ergonomic handlebar with 12° bend backwards, lightweight 7050 double-butted aluminum, 31.8mm clamp, 12.5mm rise, width 580mm
Grips
Verdrehsichere Schraubgriffe mit extra kleinem Durchmesser (25mm)
Seat
Saddle
Age-appropriate ergonomics, robust upper material, free of plasticizers and harmful substances
Seatpost
Aluminum seat post, diameter 31.6mm, length 250mm
Fit data
Geometry
