naloo Mountain Jack 26″ 2024
2024 Mountain
Estimate price |
3,140$
Weight | 12.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Manitou Machete JUNIT
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Four-bar linkage with HorstLink, optimized kinematics for children, custom butted 6061-T6 aluminum, 140mm travel, 12mm thru axle, tapered headset
Suspension Fork
Manitou Junit Machete 26” air suspension fork “Kids Tune”, 140mm, ABS compression/rebound, 15mm thru axle
Rear Shock
RockShox Trunnion Deluxe Select+ RT air shock “Kids Tune” for optimal response and light weight
Drivetrain
Rear Derailleur
Shimano Deore, 11-speed
Shift Levers
Shimano Deore I-Spec EV, 11-speed
Cassette
Shimano Deore, 11-51, 11-speed
Crank
Leichte Aluminium Kurbel mit Hohlachse und extra schmalem Q-Faktor 149mm, 140mm Länge, 30T Direct Mount Narrow Wide Kettenblatt
Pedals
without
Wheels
Front Hub
Aluminum hubs with sealed industrial bearings
Rear Hub
Aluminum hubs with sealed industrial bearings
Rims
SunRingle DUROC30, 24 holes, tubeless ready
Tires
Schwalbe Rocket Ron, 26x2.35, LiteSkin, Tubeless Easy, folding tire
Brakes
Brakes

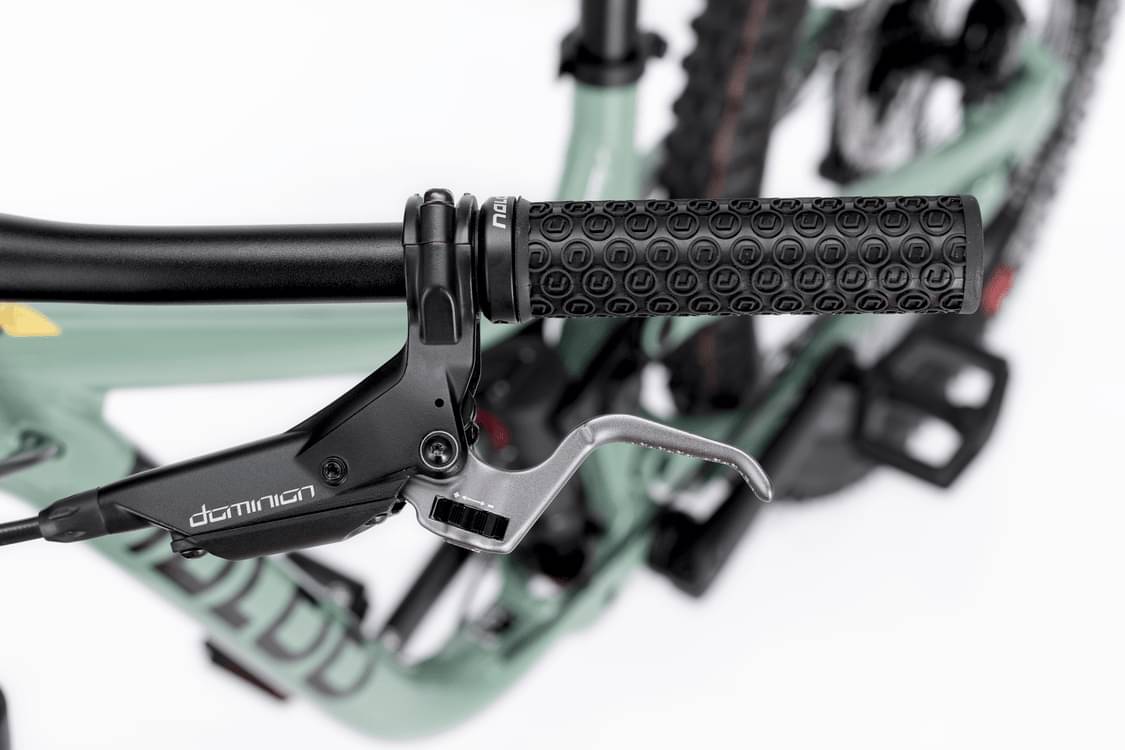

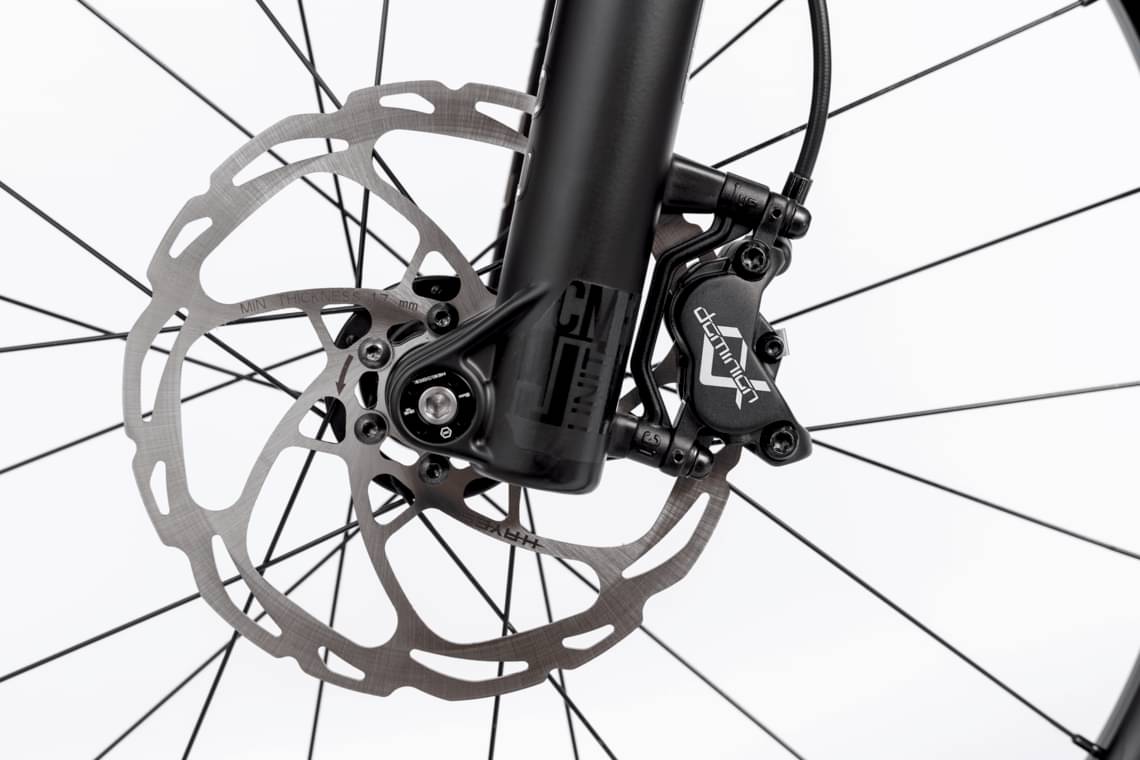

Hayes Dominion A4 (front 180mm/rear 160mm)
Cockpit
Stem
3D forged 6061T6 aluminum, 31.8mm clamp, length 40mm, angle +7°
Handlebar
Ergonomic handlebar with 12° bend backwards, lightweight 7050 double-butted aluminum, 31.8mm clamp, 12.5mm rise, width 700mm
Grips
Verdrehsichere Schraubgriffe mit extra kleinem Durchmesser (28mm)
Seat
Saddle
Age-appropriate ergonomics, robust upper material, free of plasticizers and harmful substances
Seatpost
Aluminum seat post, diameter 31.6mm, length 300mm
Fit data
Geometry
