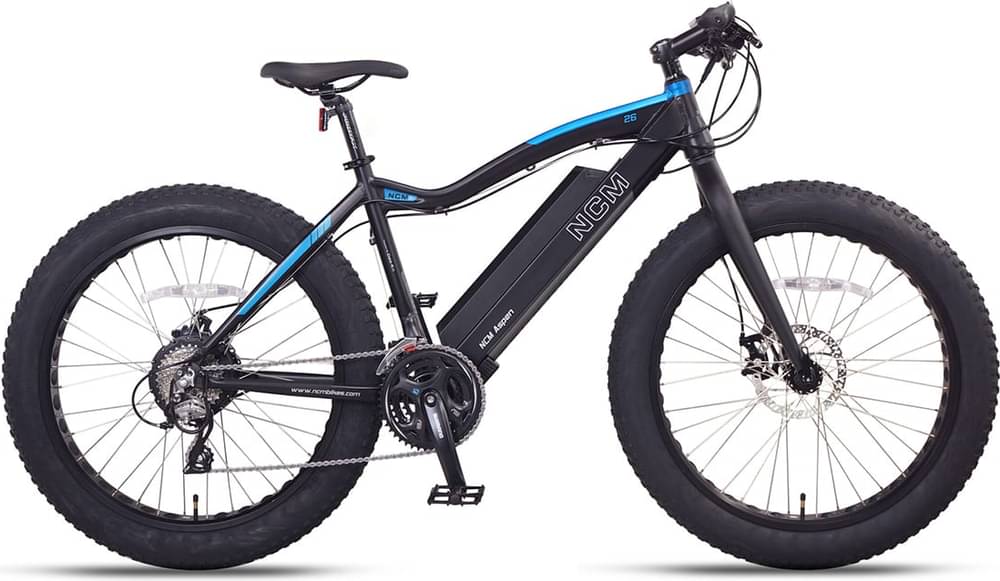

NCM Aspen 2019
2019 E-bike
Estimate price |
2,199$
Weight | 26.89 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset Shimano -
Suspension Rigid -
Motor 500W 80Nm hub-drive -
Battery Weight: 9.2 lbs (4.17 kg), Brand: Dehawk H12 (Made by DLG), Voltage: 48 volts, Amp Hours: 13 ah, Watt Hours: 624 wh, Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM) -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Alloy
Suspension Fork
Rigid Aluminum Alloy, 135mm Hub Spacing, 9mm Axle with Quick Release Skewer
Drivetrain
Shift Levers
Shimano Triggers on Left and Right (One-Way High Lever, Three-Shift Low Lever)
Cassette
24 Speed 3x8 Shimano Altus Front and Acera Rear Derailleur, Shimano Cassette 11-32 Tooth
Crank
Shimano FC-M311, Forged Aluminum Alloy Arms, 170mm Length, Square Taper Bottom Bracket Spindle, 48-38-28 Tooth Steel Chainrings
Pedals
Wellgo B087 Aluminum Alloy Platform with Fixed Pins, Black
Wheels
Rims
Aluminum Alloy, Double Walled, Punched Out Ovals, 80mm Outer Width, 36 Hole, Black
Spokes
Stainless Steel, 13 Gauge, Silver with Nipples
Tires
CST C1752, 26" x 4" (100-559)
Cockpit
Stem
Promax, Alloy, 110mm Length, 31.8mm Clamp Diameter, One 15mm Spacer, Two 10mm Spacers, One 5mm Spacer
Handlebar
Flat, Aluminum Alloy, 680mm Length
Grips
Velo, Ergonomic Rubber, Locking
Headset
Neco, Integrated, Threadless Internal Cups, Tapered 1-1/8" to 1-1/2"
Seat
Saddle
Velo, Active
Seatpost
Promax, Aluminum Alloy, Forged Head
Motor & Battery
Motor
Weight: 11 lbs (4.98 kg), Brand: Das-Kit X15F, Type: Rear-Mounted Geared Hub, Nominal Output: 500 watts, Torque: 80 Newton meters
Battery
Weight: 9.2 lbs (4.17 kg), Brand: Dehawk H12 (Made by DLG), Voltage: 48 volts, Amp Hours: 13 ah, Watt Hours: 624 wh, Chemistry: Lithium Nickel Cobalt Manganese (Li-NCM)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 35cm |
|---|---|
| Wheels | 26" |
Model Overview
Aspen is part of the Ncm E Aspen model. There is 1 e-bike that carries this model name.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Fatbike e-bikes average price
According to our math, the average price for a trustworthy Fatbike e-bike is 2033$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 2199$. If we compare this with the average Fatbike e-bike cost we notice that the price is 8.17% higher.
Average weight for Fatbike e-bikes
The average weight for Fatbike e-bikes is 31.21 kg (68.81 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, Aspen has a weight of 26.89 kg (59.28 lbs). To sum up, it’s 16.07% lighter than the average weight of Fatbike e-bikes.
Overview of components
Fork material
Aspen has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The Aspen 2019 e-bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Aspen comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
