Niner AIR 9 RDO – FRAME 2024

2024 Mountain
Estimate price | 2,449$
Open compare Use advisor

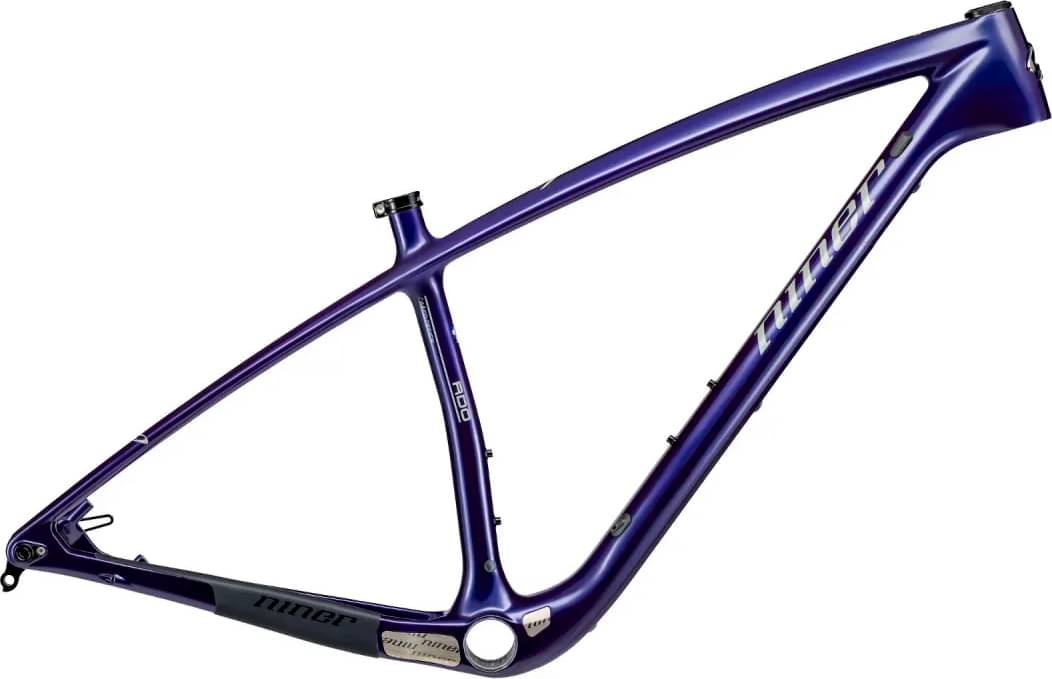

  • Niner AIR 9 RDO – FRAME 2024 - Satin Carbon / Silver, Ultraviolet/grey
  • Niner AIR 9 RDO – FRAME 2024 - niner-air-9-rdo-frame-2024-1.jpeg
  • Niner AIR 9 RDO – FRAME 2024 - niner-air-9-rdo-frame-2024-2.jpeg

Bike details

Overview

Key information split into simple groups.

Frame summary

Sizing

Recommended size guide.

  • SM

    160cm - 175cm

  • MD

    173cm - 183cm

  • LG

    180cm - 191cm

  • XL

    191cm - 201cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

NINER RDO CARBON FIBER, INTERNAL CABLE ROUTING, PF30 BB, SINGLE-SPEED COMPATIBLE

Suspension Fork

120MM

Drivetrain

Front Derailleur

34.9 SIDE SWING, FRONT PULL FRONT DERAILLEUR

Bottom Bracket

73MM PF30 BB SHELL (ADAPTERS REQUIRED FOR BSA TYPE BBS)

Wheels

Tires

29x2.4

Brakes

Brakes

POST MOUNT

Seat

Seatpost

27.2

Fit data

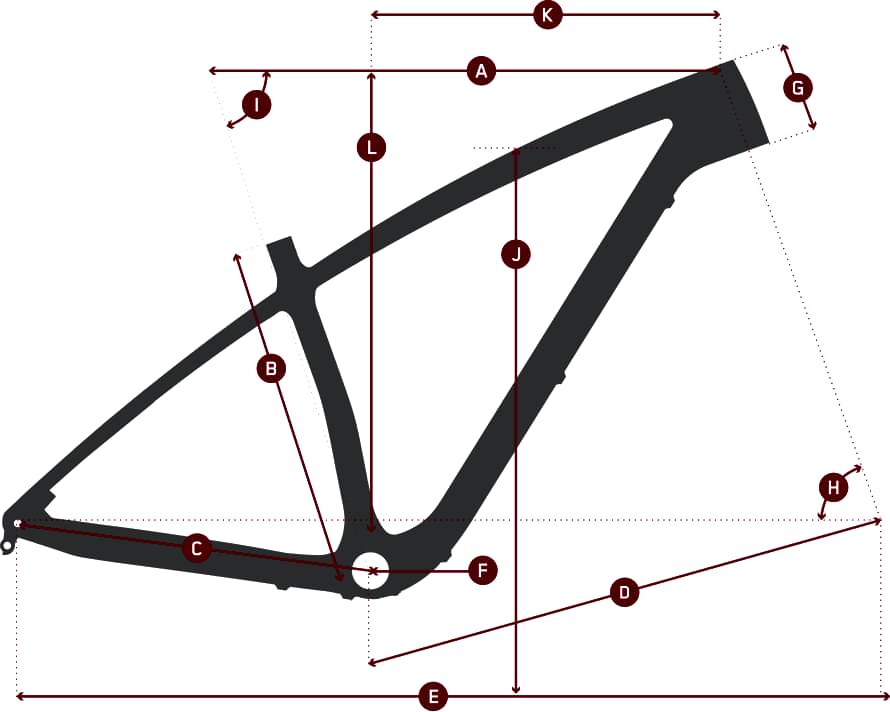

Geometry

Numbers for sizing and ride feel.

SizeFork Travel (MM)XSSMMDLGXL
Stack Reach Ratio
1 mm1.603 mm1.558 mm1.518 mm1.477 mm1.445 mm
Bottom Bracket Height
120 mm324 mm324 mm323 mm323 mm323 mm
Standover Height
120 mm688 mm724 mm744 mm796 mm837 mm
Wheels29"29"29"29"29"29"
