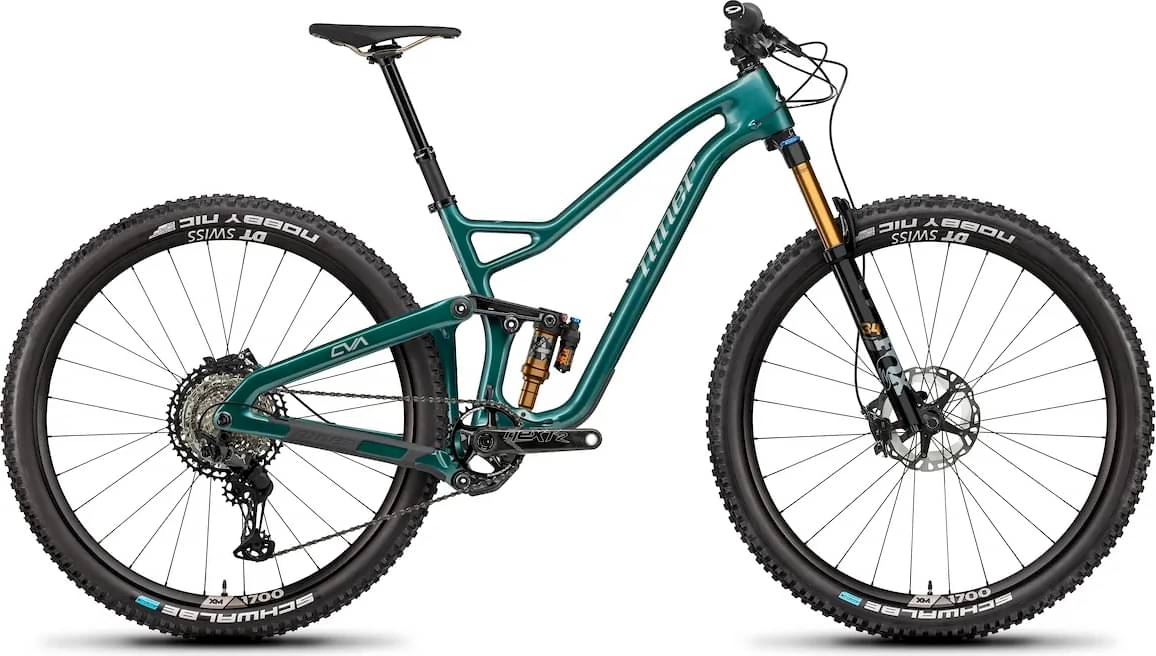

Niner JET 9 RDO – V3 4-STAR SHIMANO XT 2024
2024 Mountain
Estimate price |
7,149$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset X1, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes SRAM G2 Ultimate Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 175cm
SM Low
160cm - 175cm
MD High
173cm - 183cm
MD Low
173cm - 183cm
LG High
180cm - 192cm
LG Low
180cm - 192cm
XL High
190cm - 201cm
XL Low
190cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINER RDO CARBON FIBER, CVA SUSPENSION, 120MM TRAVEL, ALUMINUM LINKAGE, ENDURO MAX PIVOT BEARINGS, FULL SLEEVE INTERNAL CABLE ROUTING
Suspension Fork
FOX 34 FLOAT FACTORY GRIP 2 EVOL, HSC, LSC, HSR, LSR, KASHIMA COAT, 130MM, 110X15MM, 44MM OFFSET
Rear Shock
FOX FLOAT X FACTORY EVOL 2 POSITION W/ ADJUST, KASHIMA COAT
Drivetrain
Rear Derailleur
SRAM X01 AXS EAGLE 12SP WITH BATTERY COVER
Front Derailleur
N/A
Shift Levers
SRAM AXS EAGLE 12SP
Cassette
SRAM EAGLE XG 1299, 10-52T RAINBOW
Crank
SRAM X1 EAGLE CARBON DUB, 32T (S/M/L - 170MM, XL - 175MM)
Bottom Bracket
SRAM DUB BSA THREADED
Chain
SRAM XX1 EAGLE 12SP RAINBOW
Wheels
Rims
Front: DT Swiss XMC 1200 SPLINE, carbon clincher, 30mm internal, 110x15mm, centerlock, Rear: DT Swiss XMC 1200 SPLINE, carbon clincher, 30mm internal, 148x12mm, centerlock, Ratchet EXP 36
Tires
Front: SCHWALBE NOBBY NIC EVO SUPER TRAIL TLE ADDIX SPEEDGRIP 2.6, Rear: SCHWALBE NOBBY NIC EVO SUPER TRAIL TLE ADDIX SPEEDGRIP 2.35
Brakes
Brakes
SRAM G2 ULTIMATE
Brake Levers
SRAM G2 ULTIMATE
Cockpit
Stem
RACE FACE TURBINE R 40MM, 35MM CLAMP
Handlebar
RACE FACE NEXT R 800MM WIDE, 35MM RISE, 35MM CLAMP
Grips
NINER GRRRIPS L/O FLANGED SOFT COMPOUND
Headset
NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40
Seat
Saddle
NINER CUSTOM TR WITH CRN-TI RAILS, PRINTED NINER GRAPHIC
Seatpost
KS LEV SI (S-125MM, M-150MM, L/XL-175MM)
Fit data

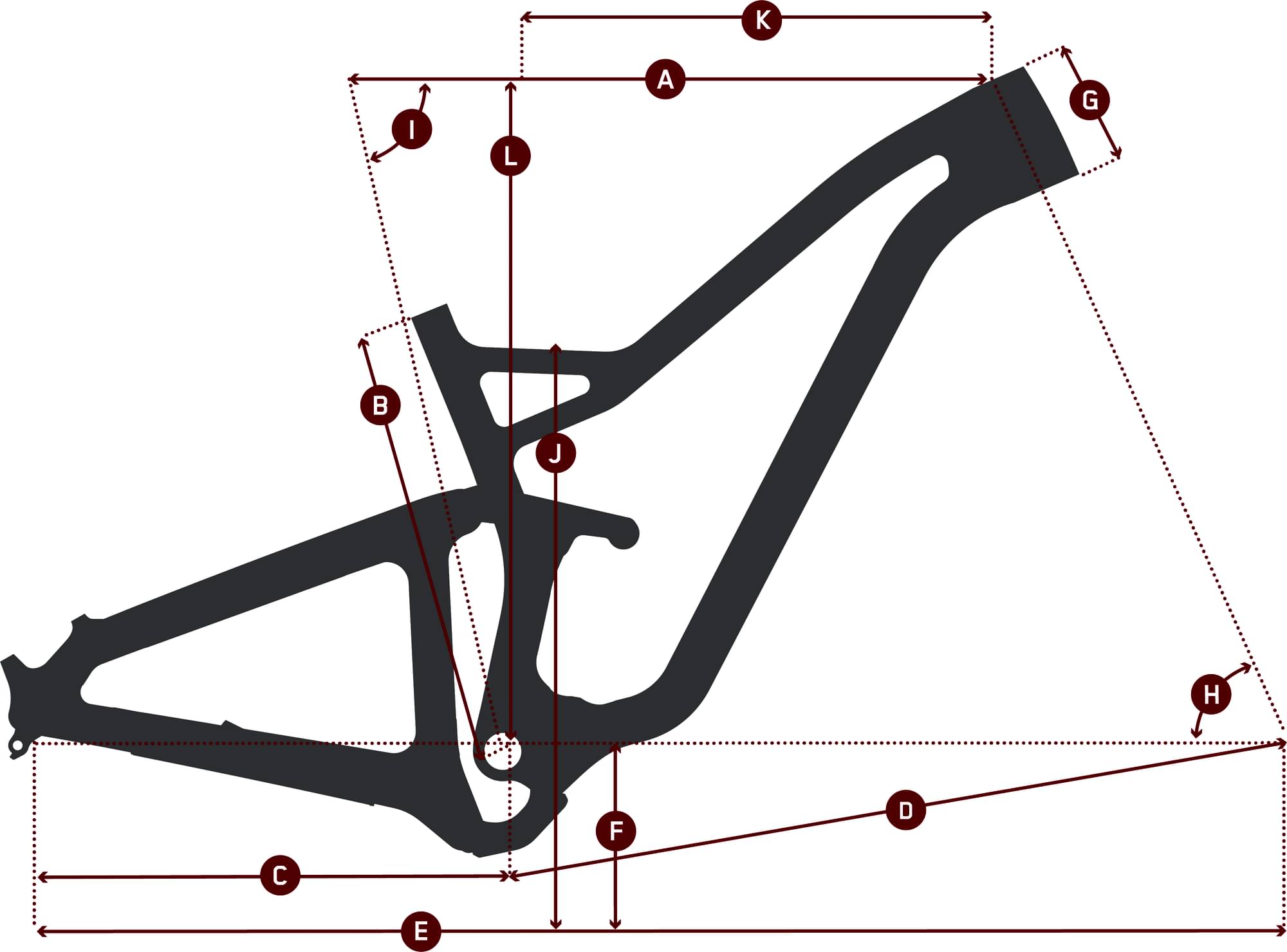

Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.409 mm | 1.439 mm | 1.362 mm | 1.39 mm | 1.318 mm | 1.345 mm | 1.28 mm | 1.306 mm |
| Bottom Bracket Height | 341 mm | 333 mm | 341 mm | 333 mm | 341 mm | 333 mm | 341 mm | 333 mm |
| Front Center | 726 mm | 726 mm | 748 mm | 748 mm | 775 mm | 776 mm | 806 mm | 807 mm |
| Rake | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm |
| Trail | 115 mm | 117 mm | 115 mm | 117 mm | 115 mm | 117 mm | 115 mm | 117 mm |
| Stack | 599 mm | 603 mm | 613 mm | 617 mm | 626 mm | 631 mm | 640 mm | 645 mm |
| Reach | 425 mm | 419 mm | 450 mm | 444 mm | 475 mm | 469 mm | 500 mm | 494 mm |
| Top Tube Length | 574 mm | 577 mm | 603 mm | 605 mm | 631 mm | 634 mm | 660 mm | 662 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° |
| Seat Tube Length | 376 mm | 376 mm | 406 mm | 406 mm | 446 mm | 446 mm | 496 mm | 496 mm |
| Head Tube Angle | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° |
| Head Tube Length | 95 mm | 95 mm | 110 mm | 110 mm | 125 mm | 125 mm | 140 mm | 140 mm |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm |
| Wheelbase | 1148 mm | 1149 mm | 1179 mm | 1180 mm | 1210 mm | 1211 mm | 1241 mm | 1242 mm |
| Bottom Bracket Drop | 33 mm | 41 mm | 33 mm | 41 mm | 33 mm | 41 mm | 33 mm | 41 mm |
| Standover Height | 688 mm | 681 mm | 698 mm | 705 mm | 727 mm | 734 mm | 778 mm | 771 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 173 cm | 173 cm | 180 cm | 180 cm | 190 cm | 190 cm |
| Rider Max Height | 175 cm | 175 cm | 183 cm | 183 cm | 192 cm | 192 cm | 201 cm | 201 cm |
