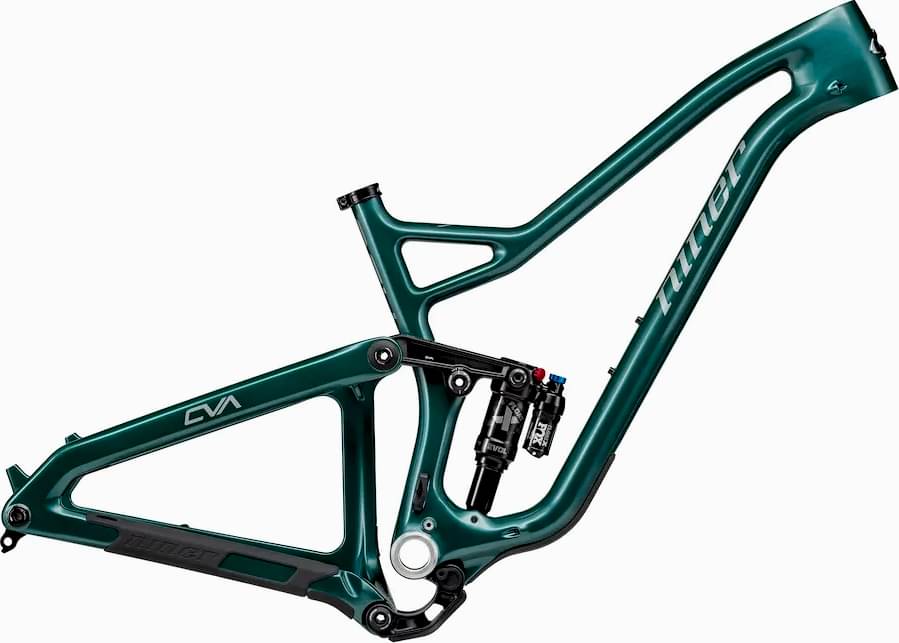

Niner JET 9 RDO – V3 FRAME 2024
2024 Mountain
Estimate price |
3,499$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Travel Rear 120mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 175cm
SM Low
160cm - 175cm
MD High
173cm - 183cm
MD Low
173cm - 183cm
LG High
180cm - 192cm
LG Low
180cm - 192cm
XL High
190cm - 201cm
XL Low
190cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINER RDO CARBON FIBER, CVA SUSPENSION, 120MM TRAVEL, ALUMINUM LINKAGE, ENDURO MAX PIVOT BEARINGS, FULL SLEEVE INTERNAL CABLE ROUTING
Suspension Fork
140mm
Drivetrain
Front Derailleur
N/A
Bottom Bracket
BSA THREADED
Wheels
Tires
29 X 2.6
Brakes
Brakes
POST MOUNT
Seat
Seatpost
30.9
Fit data

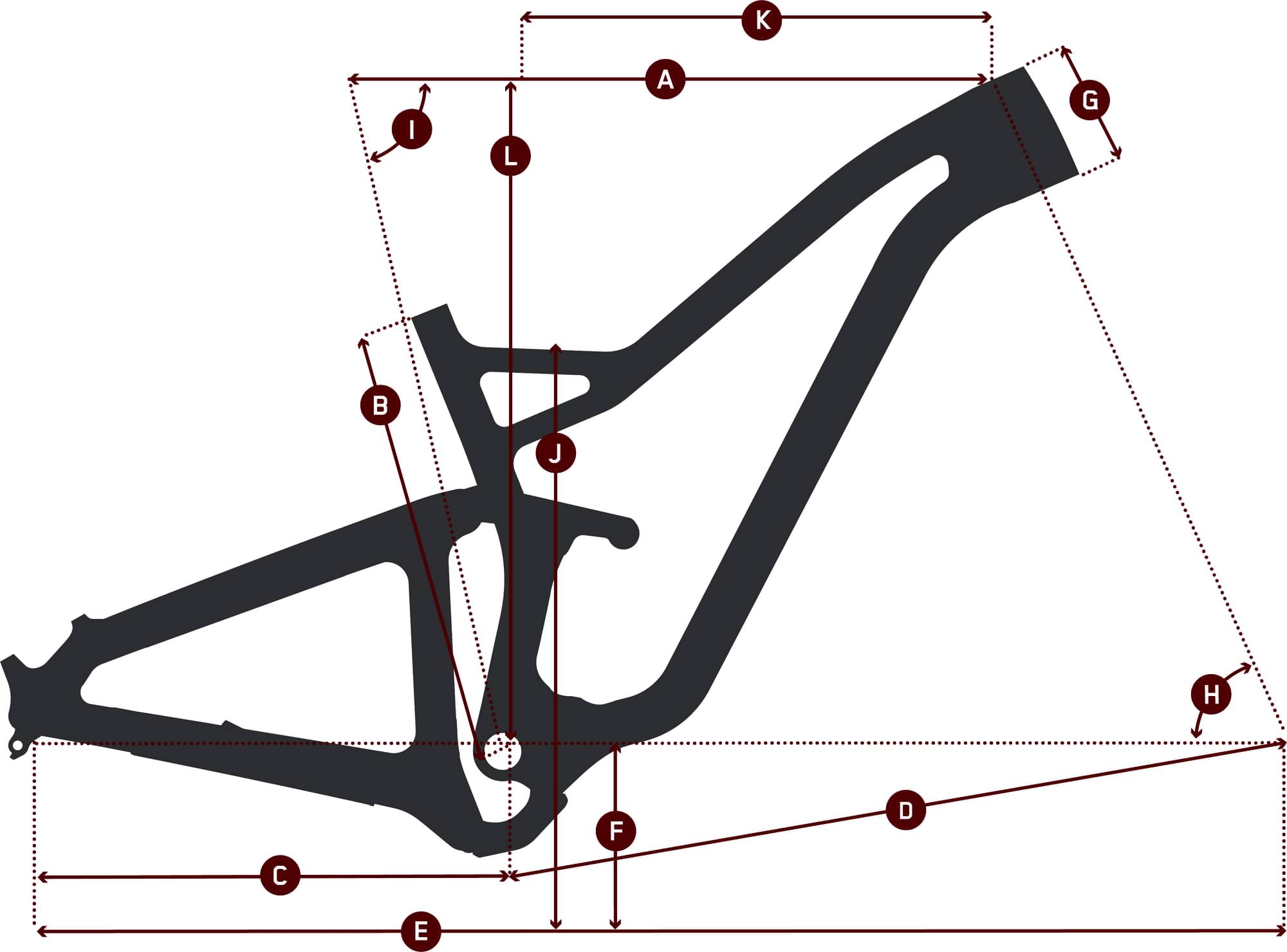

Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.409 mm | 1.439 mm | 1.362 mm | 1.39 mm | 1.318 mm | 1.345 mm | 1.28 mm | 1.306 mm |
| Bottom Bracket Height | 341 mm | 333 mm | 341 mm | 333 mm | 341 mm | 333 mm | 341 mm | 333 mm |
| Front Center | 726 mm | 726 mm | 748 mm | 748 mm | 775 mm | 776 mm | 806 mm | 807 mm |
| Rake | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm |
| Trail | 115 mm | 117 mm | 115 mm | 117 mm | 115 mm | 117 mm | 115 mm | 117 mm |
| Stack | 599 mm | 603 mm | 613 mm | 617 mm | 626 mm | 631 mm | 640 mm | 645 mm |
| Reach | 425 mm | 419 mm | 450 mm | 444 mm | 475 mm | 469 mm | 500 mm | 494 mm |
| Top Tube Length | 574 mm | 577 mm | 603 mm | 605 mm | 631 mm | 634 mm | 660 mm | 662 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° | 76 ° | 75.5 ° |
| Seat Tube Length | 376 mm | 376 mm | 406 mm | 406 mm | 446 mm | 446 mm | 496 mm | 496 mm |
| Head Tube Angle | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° |
| Head Tube Length | 95 mm | 95 mm | 110 mm | 110 mm | 125 mm | 125 mm | 140 mm | 140 mm |
| Chainstay Length | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm | 430 mm | 432 mm |
| Wheelbase | 1148 mm | 1149 mm | 1179 mm | 1180 mm | 1210 mm | 1211 mm | 1241 mm | 1242 mm |
| Bottom Bracket Drop | 33 mm | 41 mm | 33 mm | 41 mm | 33 mm | 41 mm | 33 mm | 41 mm |
| Standover Height | 688 mm | 681 mm | 698 mm | 705 mm | 727 mm | 734 mm | 778 mm | 771 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 173 cm | 173 cm | 180 cm | 180 cm | 190 cm | 190 cm |
| Rider Max Height | 175 cm | 175 cm | 183 cm | 183 cm | 192 cm | 192 cm | 201 cm | 201 cm |
