Niner RIP 9 RDO 29 4-STAR SHIMANO XT 2024
2024 Mountain
Estimate price |
7,449$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINER RDO CARBON FIBER, 140MM TRAVEL, GEO FLIP CHIP, RIB CAGE CONSTRUCTION, FULL SLEEVE CABLE ROUTING, ENDURO MAX BLACK OXIDE PIVOT BEARINGS
Suspension Fork
FOX 36 FLOAT FACTORY GRIP 2 EVOL, HSC, LSC, HSR, LSR, KASHIMA COAT, 150MM, 110X15MM, 44MM OFFSET
Rear Shock
FOX FLOAT X FACTORY EVOL 2 POSITION W/ ADJUST, KASHIMA COAT
Drivetrain
Rear Derailleur
SHIMANO XT M8100 SGS 12SP
Front Derailleur
n/a
Shift Levers
SHIMANO XT M8100 12SP I-SPEC EV
Cassette
SHIMANO XT M8100 12SP, 10-51T
Crank
RACEFACE NEXT R CARBON 12SP, 32T, 170MM
Bottom Bracket
RACEFACE BSA THREADED
Chain
SHIMANO XT M8100 W/ QUICKLINK
Wheels
Rims
Front: DT Swiss XM 1700 SPLINE, aluminum clincher, 30mm internal, 110x15mm, centerlock, Rear: DT Swiss XM 1700 SPLINE, aluminum clincher, 30mm internal, 148x12mm, centerlock, Ratchet System 36 SL
Tires
Front: SCHWALBE HANS DAMPF EVO SUPER TRAIL TLE ADDIX SOFT 2.6, Rear: SCHWALBE NOBBY NIC EVO SUPER TRAIL TLE ADDIX SPEEDGRIP 2.6
Brakes
Brakes
SHIMANO XT M8120, METAL PAD W/ FIN
Brake Levers
SHIMANO XT M8100
Cockpit
Stem
RACE FACE TURBINE R 40MM, 35MM CLAMP
Handlebar
RACE FACE NEXT R 800MM WIDE, 35MM RISE, 35MM CLAMP
Grips
NINER GRRRIPS L/O FLANGED SOFT COMPOUND
Headset
NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40
Seat
Saddle
NINER CUSTOM TR WITH CRN-TI RAILS, PRINTED NINER GRAPHIC
Seatpost
KS LEV SI (S-125MM, M-150MM, L/XL-175MM)
Fit data

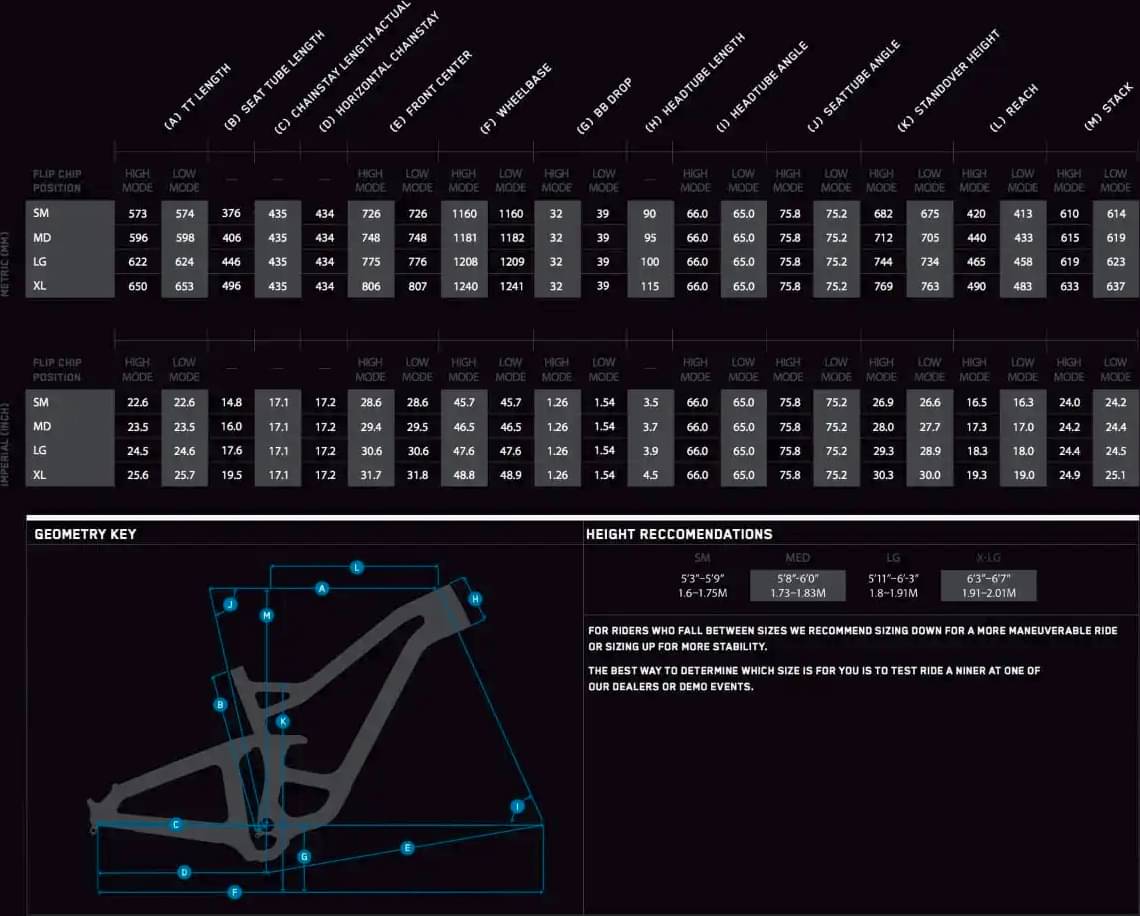

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
