Bike details
Overview
Key information split into simple groups.

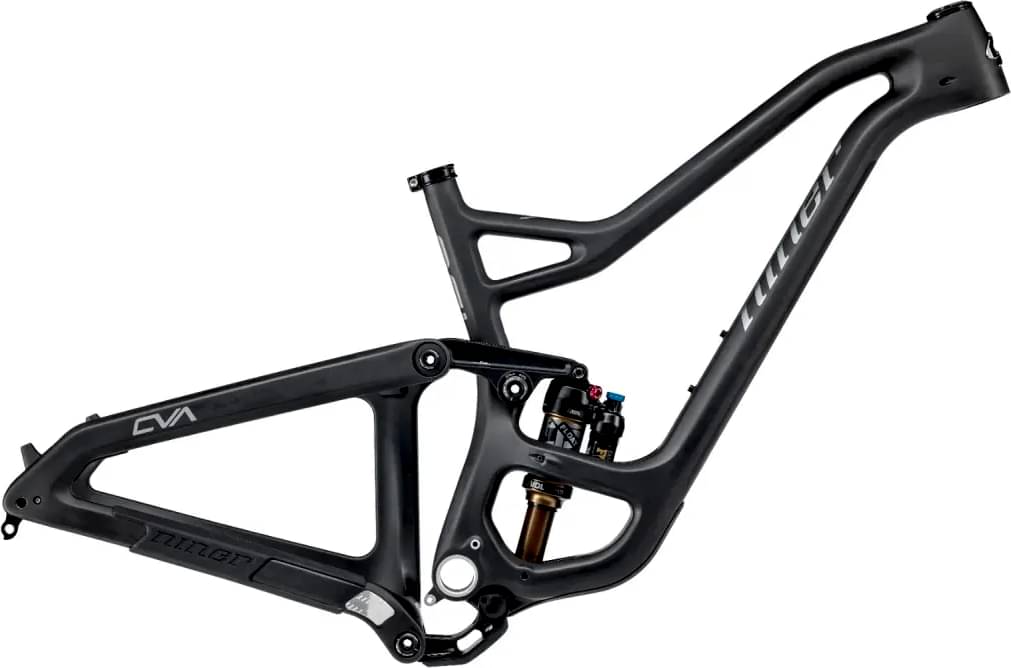

Frame summary
-
-
Frame Carbon -
Travel Rear 140mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 175cm
SM Low
160cm - 175cm
MD High
173cm - 183cm
MD Low
173cm - 183cm
LG High
180cm - 192cm
LG Low
180cm - 192cm
XL High
190cm - 201cm
XL Low
190cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINER RDO CARBON FIBER, 140MM TRAVEL, GEO FLIP CHIP, RIB CAGE CONSTRUCTION, FULL SLEEVE CABLE ROUTING, ENDURO MAX BLACK OXIDE PIVOT BEARINGS
Suspension Fork
150mm (44mm offset)
Drivetrain
Front Derailleur
n/a
Bottom Bracket
73mm threadednbsp;
Wheels
Tires
29x2.6" (tire sizes vary by brand, some may not fit)
Brakes
Brakes
Post mount
Seat
Seatpost
30.9
Fit data

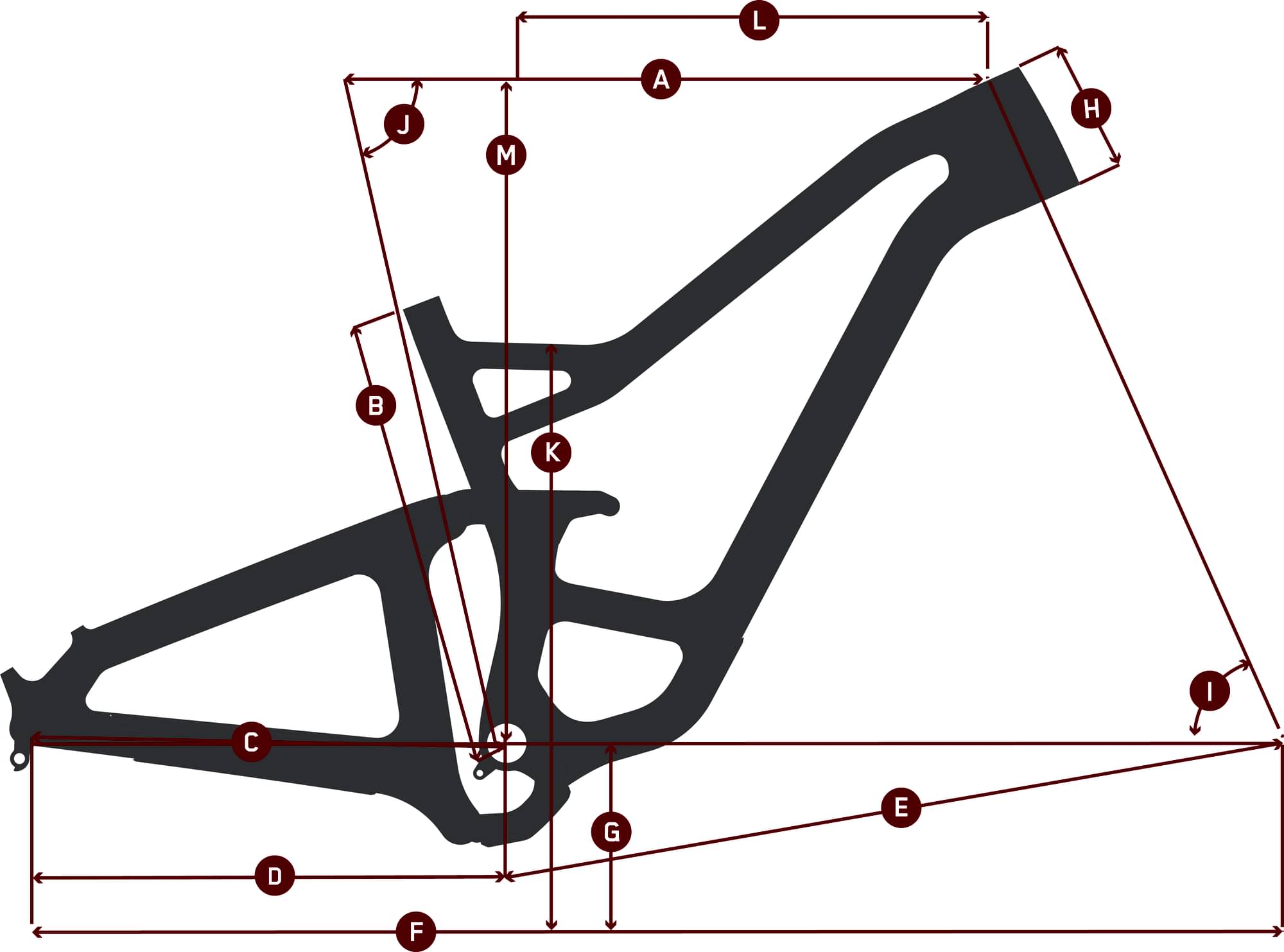

Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.452 mm | 1.487 mm | 1.398 mm | 1.43 mm | 1.331 mm | 1.36 mm | 1.292 mm | 1.319 mm |
| Bottom Bracket Height | 342 mm | 335 mm | 342 mm | 335 mm | 342 mm | 335 mm | 342 mm | 335 mm |
| Front Center | 726 mm | 726 mm | 748 mm | 748 mm | 775 mm | 776 mm | 806 mm | 807 mm |
| Rake | 45 mm | 41 mm | 43 mm | 41 mm | 44 mm | 41 mm | 44 mm | 42 mm |
| Trail | 117 mm | 129 mm | 120 mm | 129 mm | 119 mm | 129 mm | 119 mm | 128 mm |
| Stack | 610 mm | 614 mm | 615 mm | 619 mm | 619 mm | 623 mm | 633 mm | 637 mm |
| Reach | 420 mm | 413 mm | 440 mm | 433 mm | 465 mm | 458 mm | 490 mm | 483 mm |
| Top Tube Length | 573 mm | 574 mm | 596 mm | 598 mm | 622 mm | 624 mm | 650 | 653 mm |
| Seat Tube Angle | 75.8 ° | 75.2 ° | 75.8 ° | 75.2 ° | 75.8 ° | 75.2 ° | 75.8 ° | 75.2 ° |
| Seat Tube Length | 376 mm | 376 mm | 406 mm | 406 mm | 446 mm | 446 mm | 496 mm | 496 mm |
| Head Tube Angle | 66 ° | 65 ° | 66 ° | 65 ° | 66 ° | 65 ° | 66 ° | 65 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 95 mm | 100 mm | 100 mm | 115 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1160 mm | 1160 mm | 1181 mm | 1182 mm | 1208 mm | 1209 mm | 1240 mm | 1241 mm |
| Bottom Bracket Drop | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm | 32 mm | 39 mm |
| Standover Height | 682 mm | 675 mm | 712 mm | 705 mm | 744 mm | 734 mm | 769 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 173 cm | 173 cm | 180 cm | 180 cm | 190 cm | 190 cm |
| Rider Max Height | 175 cm | 175 cm | 183 cm | 183 cm | 192 cm | 192 cm | 201 cm | 201 cm |
