Niner RIP e9 – 3-STAR SRAM SX EAGLE 2024
2024 Mountain
Estimate price |
6,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox ZEB
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Guide RE Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 175cm
MD
173cm - 183cm
LG
180cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINER RIP E9 150MM TRAVEL, HYDROFORMED AND WELDED 6061-T6 ALUMINUM, INTEGRATED BATTERY COMPARTMENT
Suspension Fork
ROCKSHOX ZEB R 160MM
Rear Shock
FOX FLOAT X PERFORMANCE EVOL 2 POSITION W/ ADJUST 185X55MM TRUNNION
Drivetrain
Rear Derailleur
SRAM SX EAGLE 12SP
Front Derailleur
n/a
Shift Levers
SRAM SX EAGLE 12SP
Cassette
SRAM PG1210 EAGLE 11-50T
Crank
PRAXIS BOSCH G4 ISIS 165MM WITH SRAM DM EAGLE RING 36T
Bottom Bracket
N/A
Chain
SRAM SX EAGLE 12SP
Wheels
Rims
Front: Stans NoTubes Flow D 29er, Formula CL-811 hub, centerlock, 110x15mm, Rear: Stans NoTubes Flow D 29er, Formula ECT 148S hub, centerlock, 148x12mm
Tires
Front: SCHWALBE EDDY CURRENT EVO SUPER TRAIL TLE ADDIX SOFT 29X2.4, Rear: SCHWALBE HANS DAMPF EVO SUPER TRAIL TLE ADDIX SOFT 29X2.35
Brakes
Brakes
SRAM GUIDE RE
Brake Levers
SRAM GUIDE RE
Cockpit
Stem
RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
Handlebar
RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
Grips
NINER GRRRIPS L/O NYLON FLANGED
Headset
NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6 | ZS56/40
Seat
Saddle
NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC
Seatpost
KS LEV SI (S-100MM, MD-125MM, LG-150MM)
Fit data

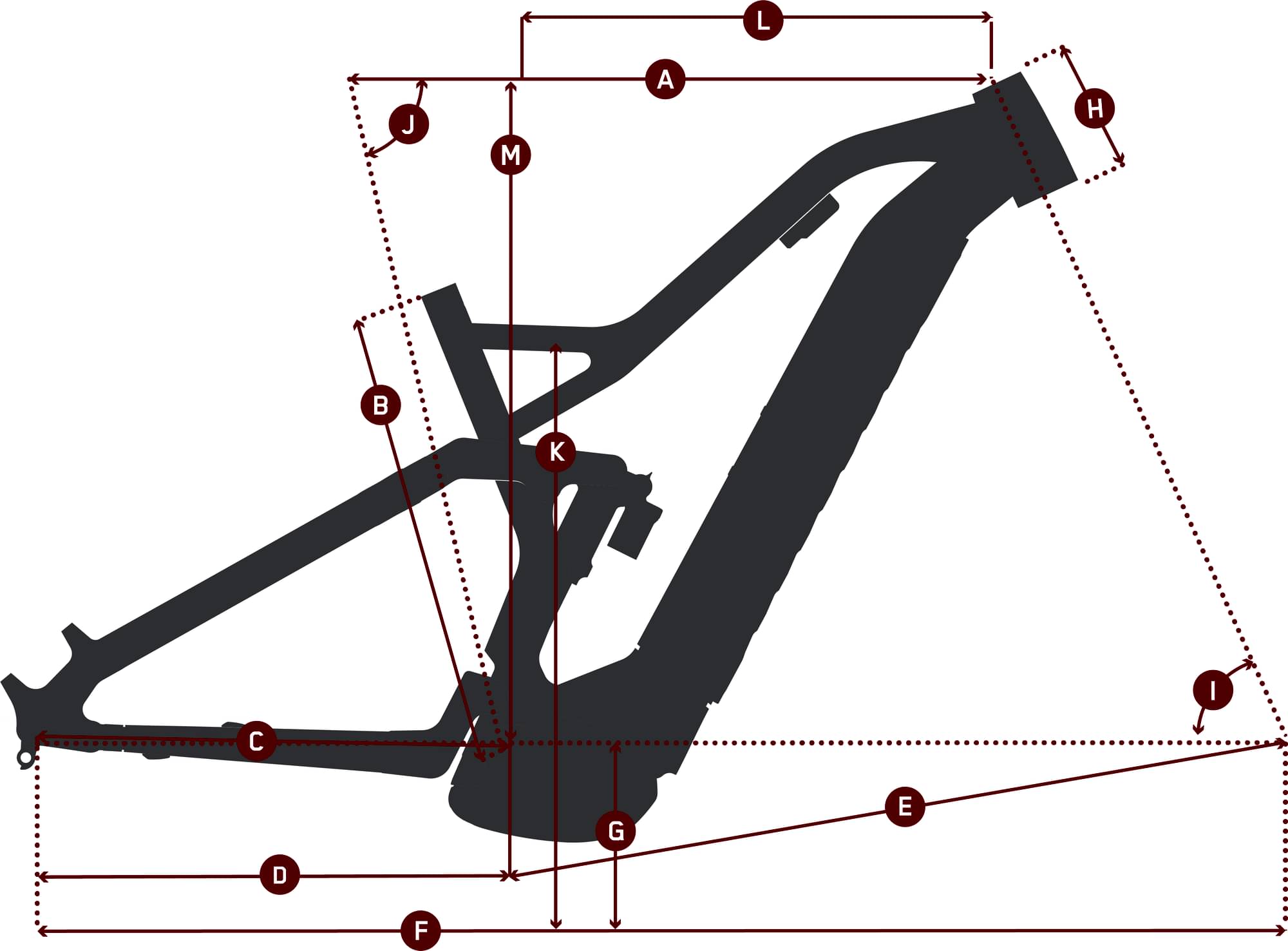

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.544 mm | 1.488 mm | 1.459 mm | 1.425 mm | 1.402 mm |
| Bottom Bracket Height | 322 mm | 322 mm | 322 mm | 322 mm | 322 mm |
| Front Center | 678 mm | 693 mm | 711 mm | 737 mm | 764 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 610 mm | 610 mm | 620 mm | 634 mm | 652 mm |
| Reach | 395 mm | 410 mm | 425 mm | 445 mm | 465 mm |
| Top Tube Length | 570 mm | 585 mm | 603 mm | 627 mm | 652 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 356 mm | 394 mm | 419 mm | 483 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 125 mm | 145 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1102 mm | 1117 mm | 1136 mm | 1162 mm | 1189 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Standover Height | 698 mm | 729 mm | 748 mm | 800 mm | 841 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
