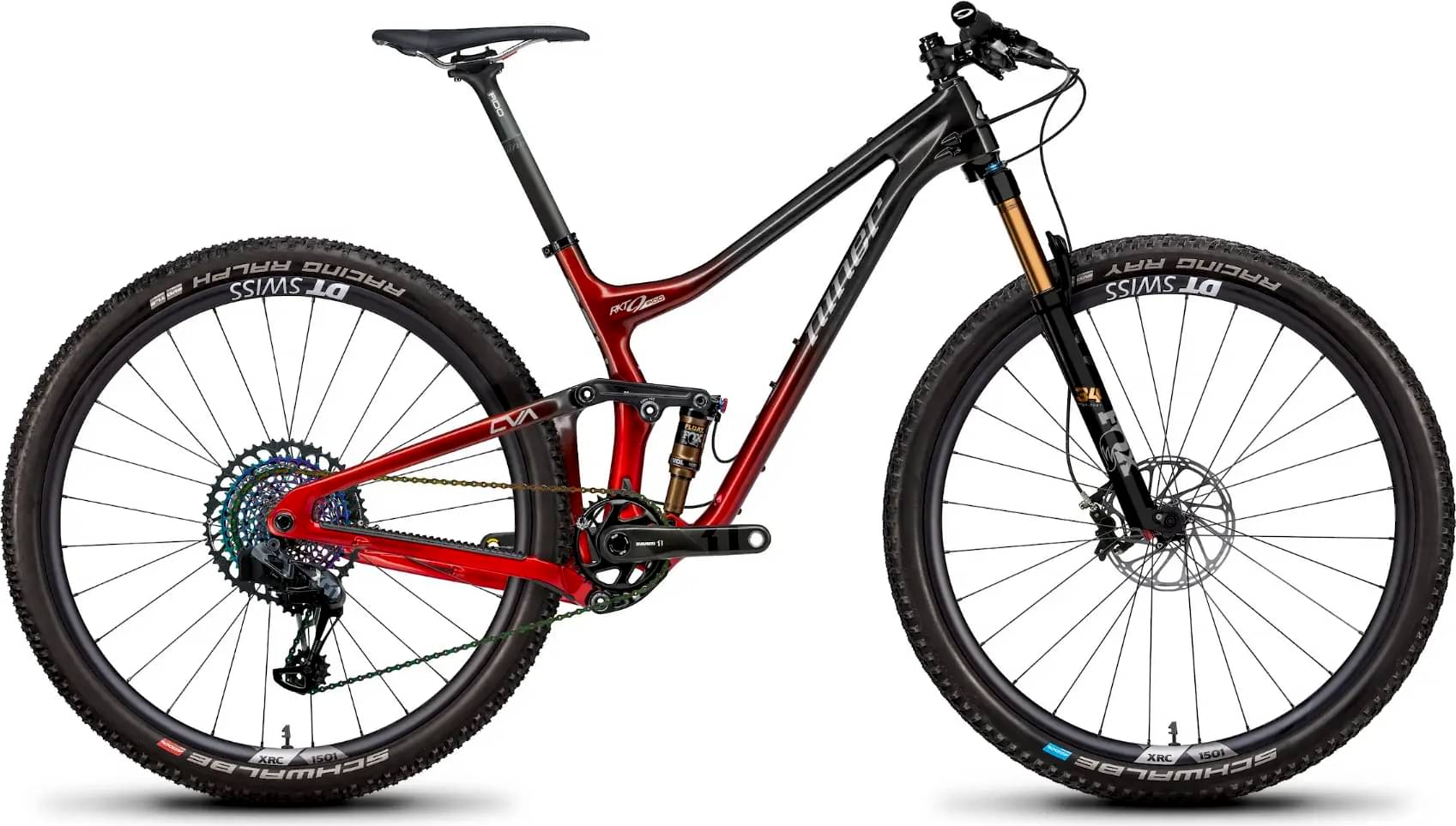

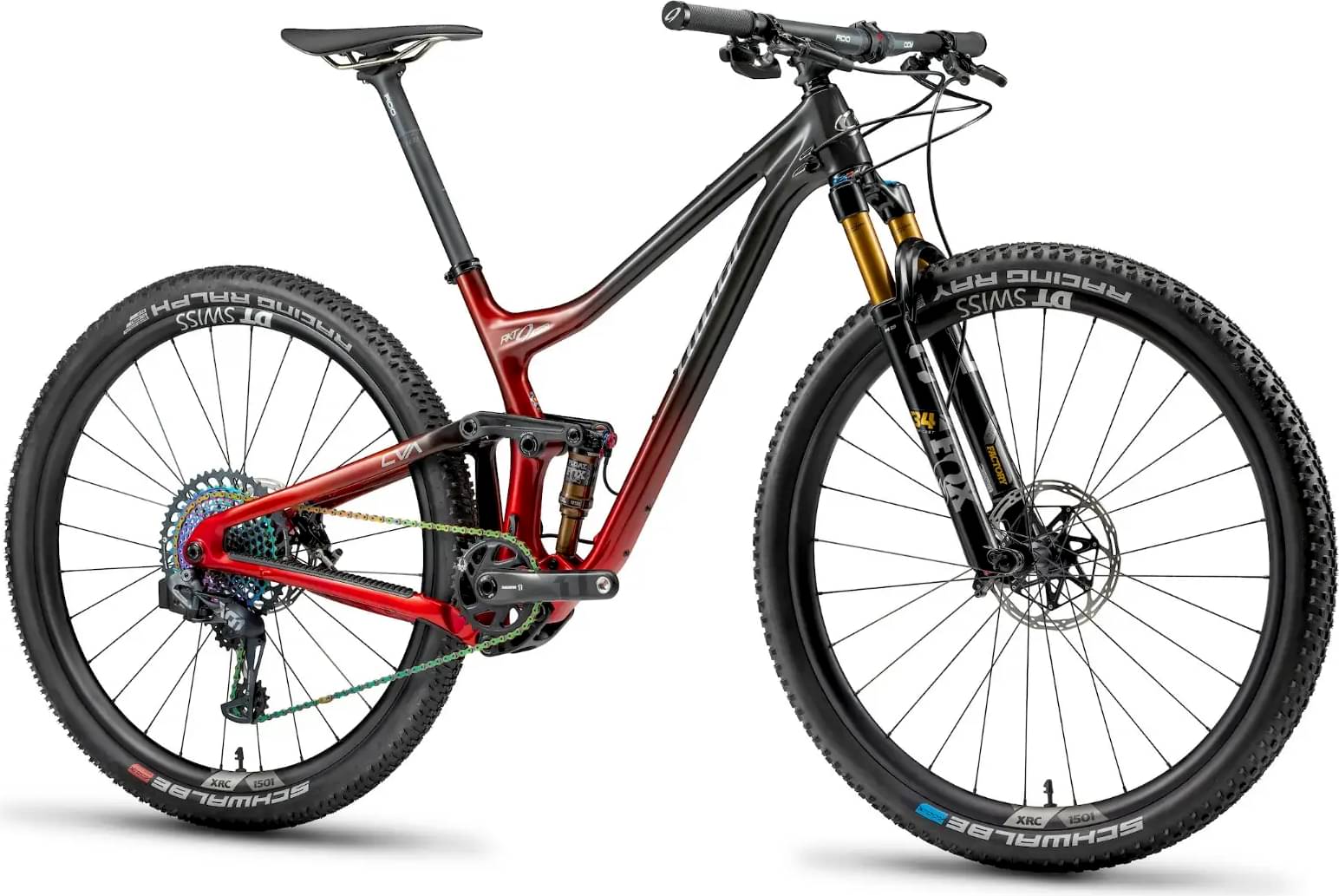

Niner RKT 9 RDO – 3-STAR SRAM GX EAGLE 2024
2024 Mountain
Estimate price |
5,699$
Weight | 12.38 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Low
160cm - 175cm
MD Low
173cm - 183cm
LG Low
180cm - 191cm
XL Low
191cm - 201cm
SM High
160cm - 175cm
MD High
173cm - 183cm
LG High
180cm - 191cm
XL High
191cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

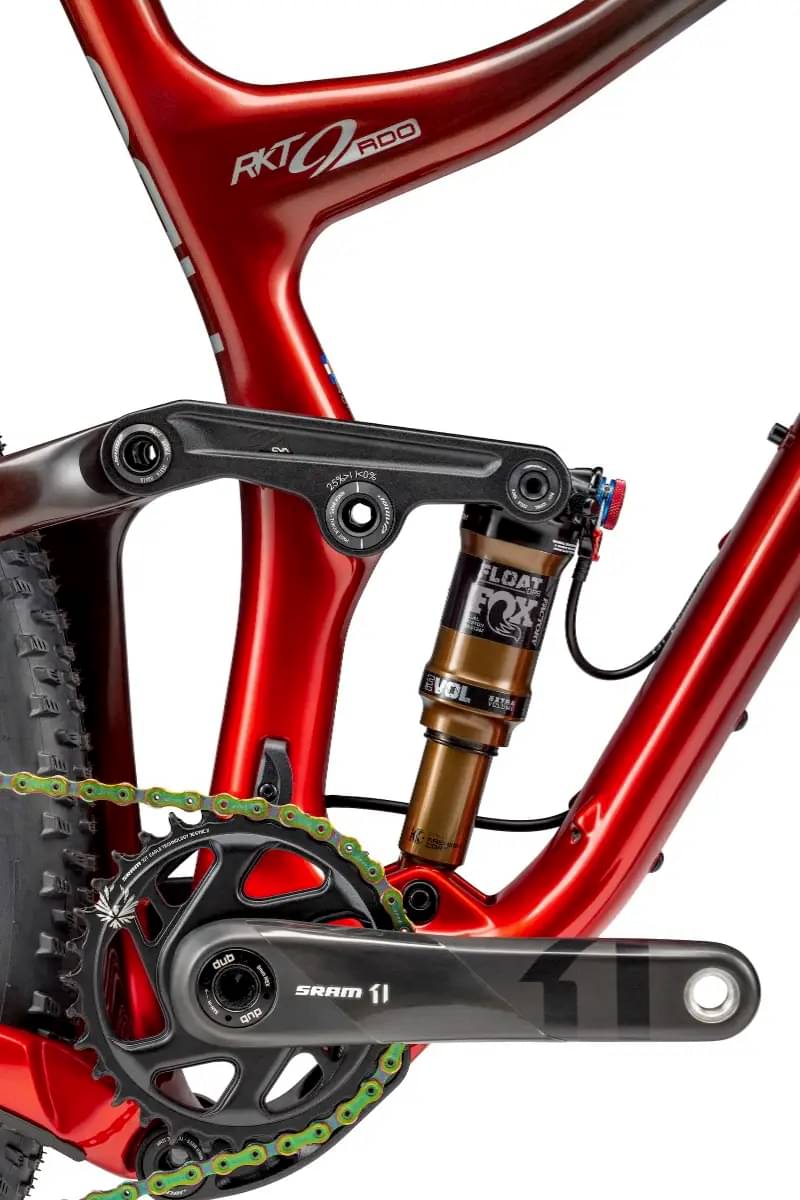

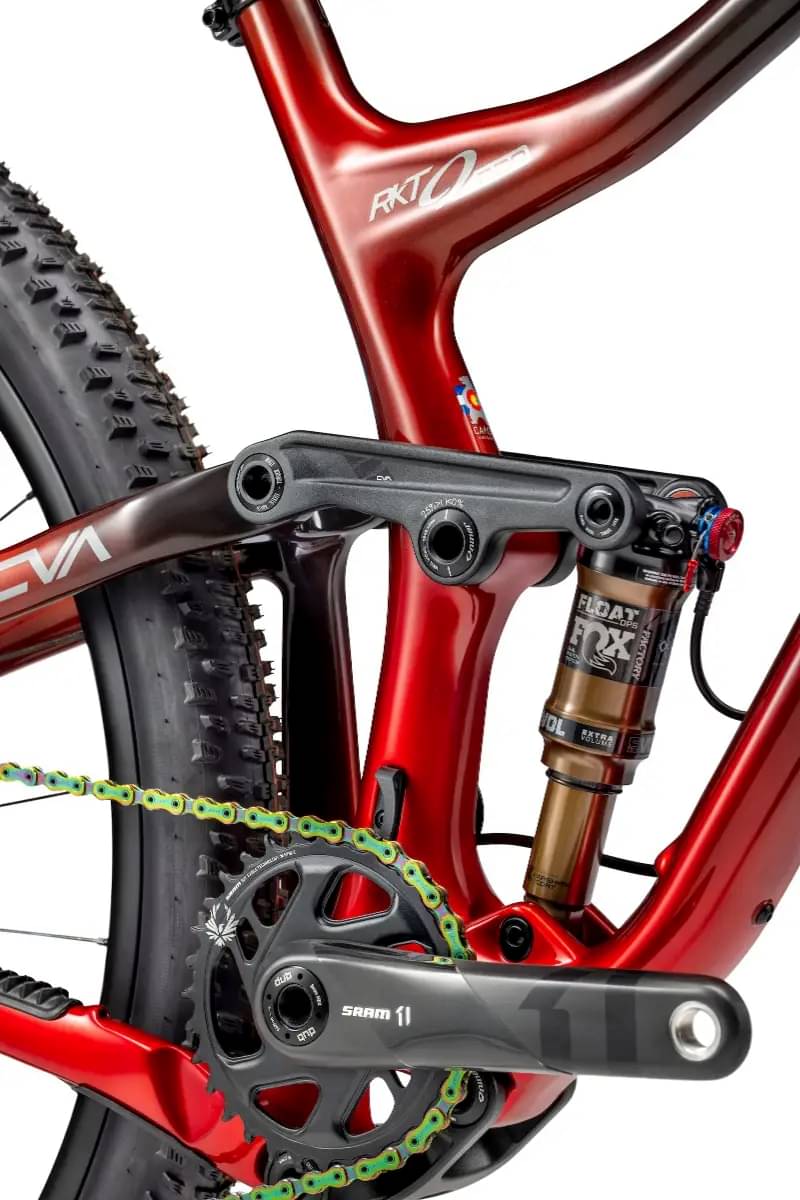

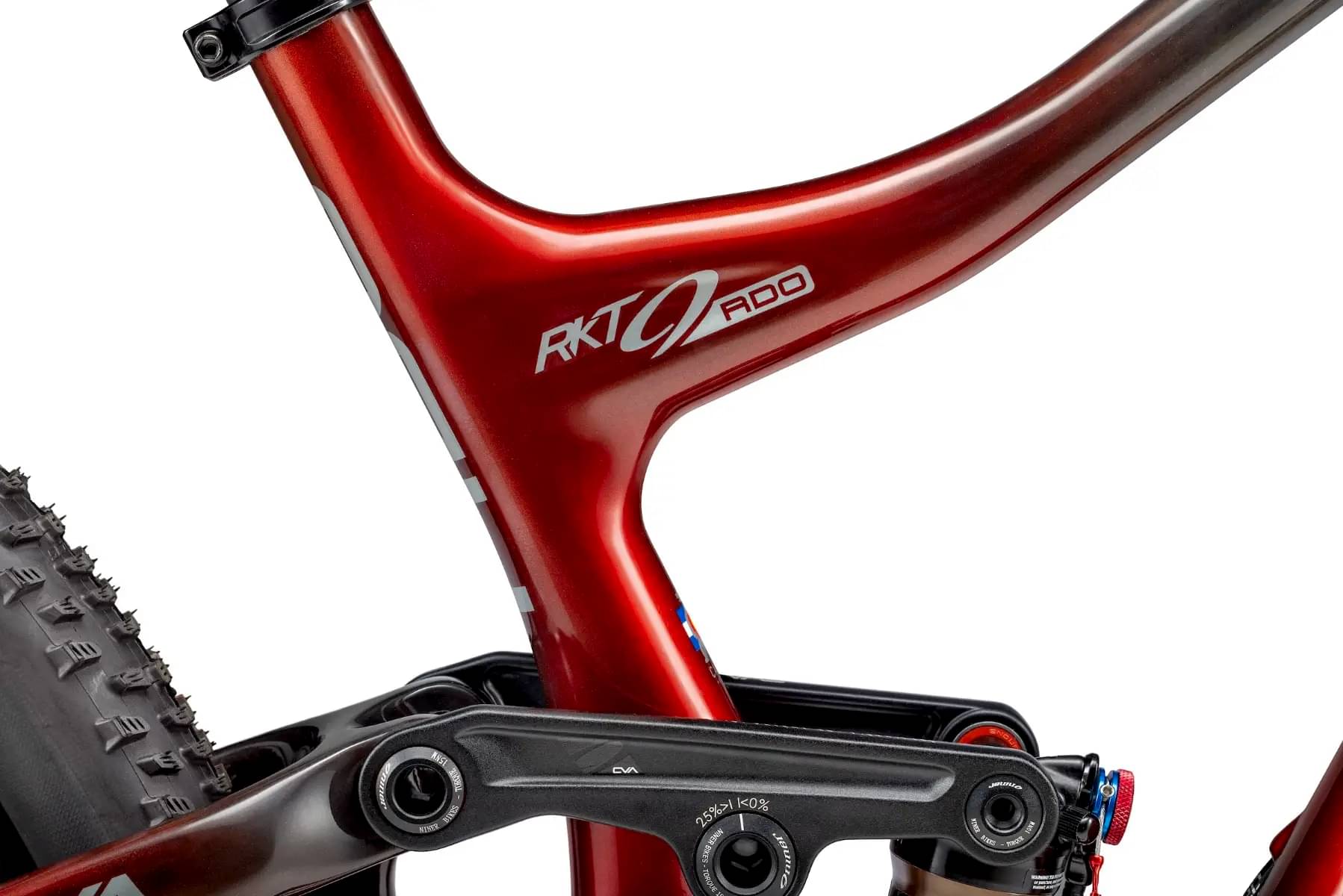

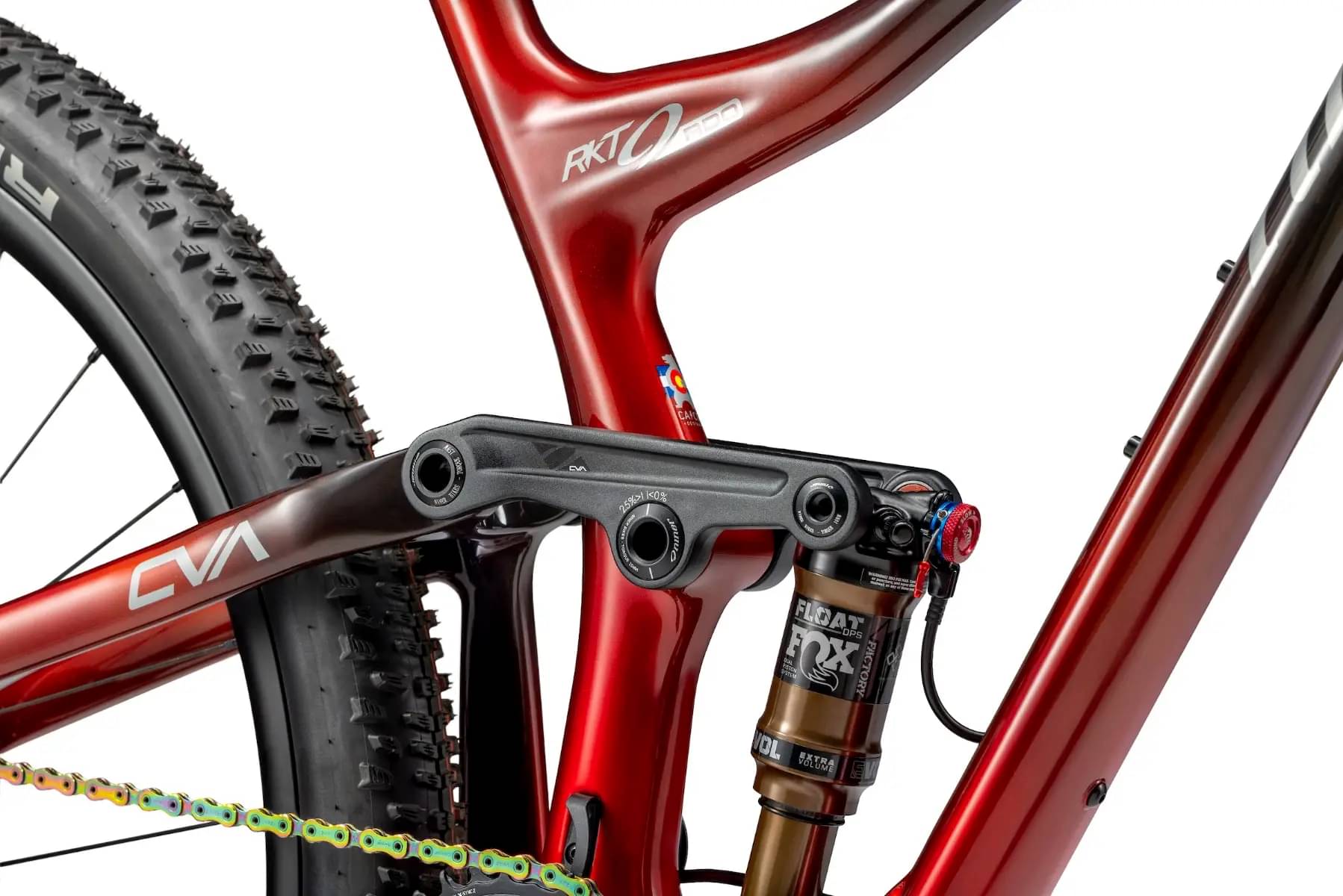

NINER RDO CARBON FIBER, 100MM CVA SUSPENSION, ALUMINUM ROCKER LINKS, ENDURO MAX PIVOT BEARINGS
Suspension Fork
FOX 34 SC FLOAT FACTORY EVOL FIT4, 2 POSITION REMOTE L/O, KASHIMA COAT, 120MM, 110X15MM, 44MM OFFSET
Rear Shock

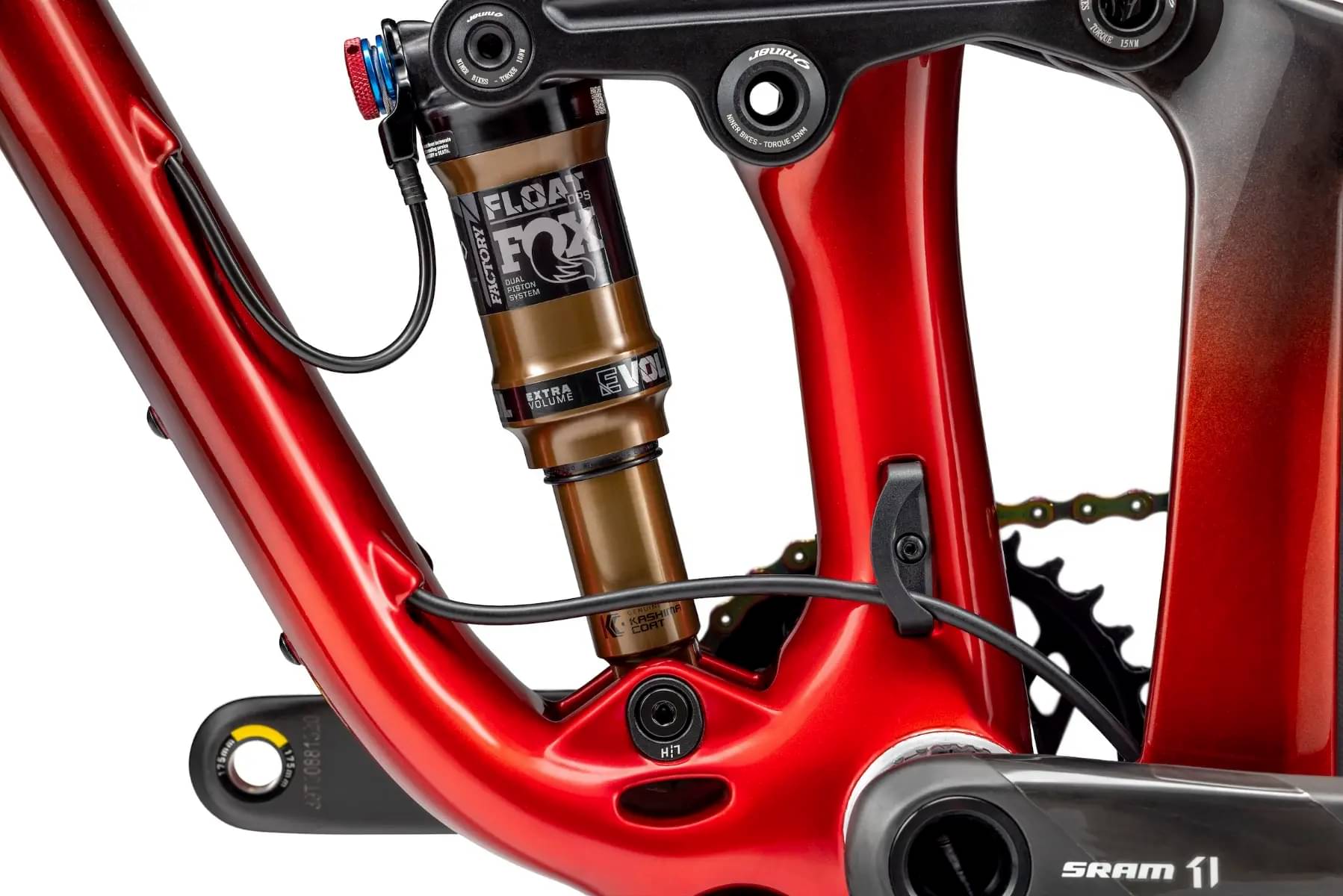

FOX FLOAT DPS FACTORY EVOL, 2 POSITION REMOTE L/O, KASHIMA COAT
Drivetrain

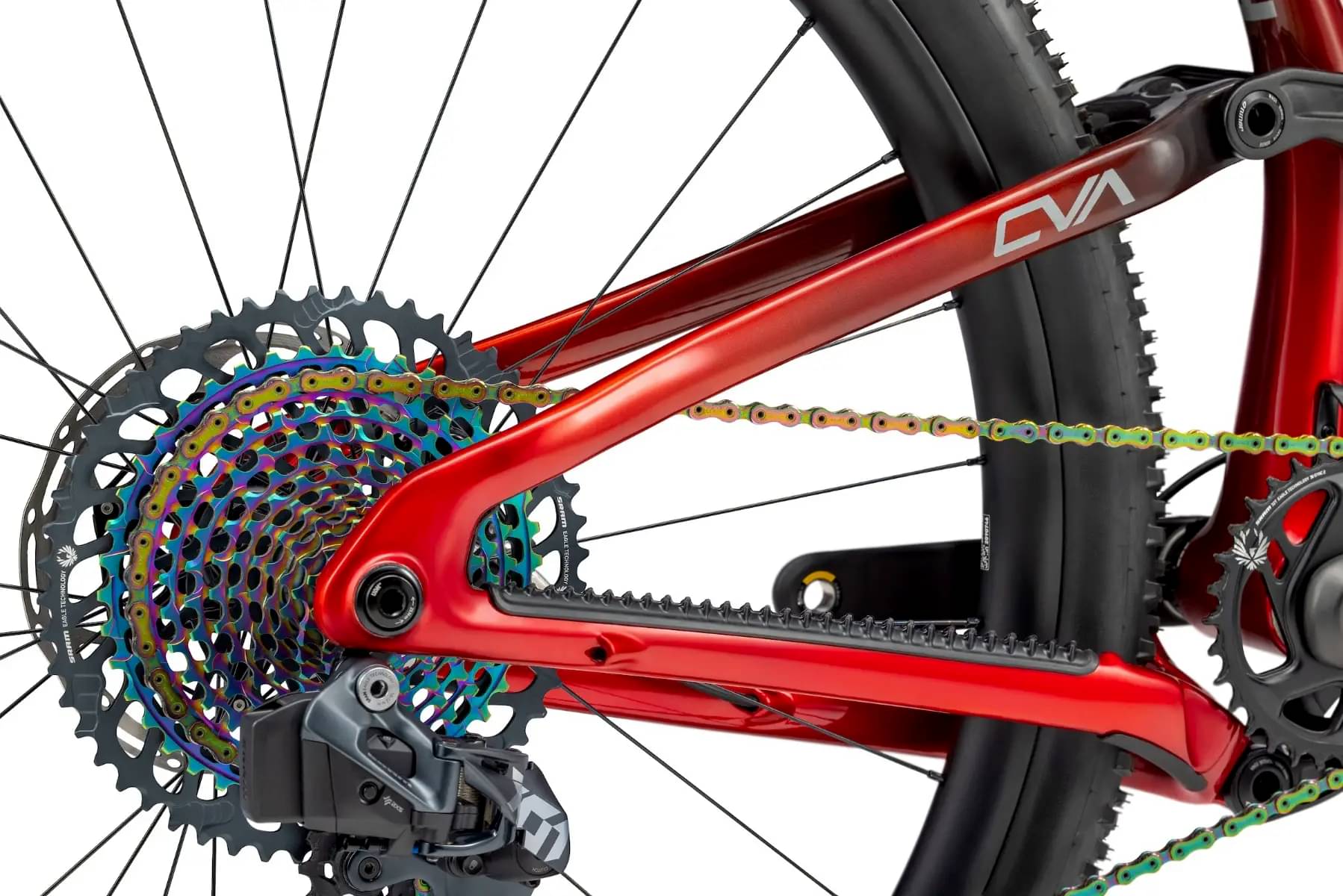

Rear Derailleur
SRAM GX EAGLE 12SP
Front Derailleur
N/A
Shift Levers
SRAM GX EAGLE 12SP
Cassette
SRAM EAGLE XG 1275, 10-52T
Crank
SRAM DESCENDANT 7K EAGLE DUB, 32T (XS/S - 170MM, M/L/XL - 175MM)
Bottom Bracket
SRAM DUB PF30
Chain
SRAM GX EAGLE 12SP
Wheels
Front Hub
DT Swiss 370 Centerlock, with Ratchet System 36 LN
Rear Hub
DT Swiss 370 Centerlock, with Ratchet System 36 LN
Rims
Front: DT Swiss X 1900 SPLINE, aluminum clincher, 25mm internal, 110x12mm, centerlock, Rear: DT Swiss X 1900 SPLINE, aluminum clincher, 25mm internal, 148x12mm, centerlock, ratchet system 36 LN
Spokes
DT Champion straight pull
Tires
Front: SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35, Rear: SCHWALBE RACING RALPH EVO SUPER TERRAIN TLE ADDIX SPEED 2.35
Brakes
Brakes
SRAM G2 R
Brake Levers
SRAM G2 R
Cockpit

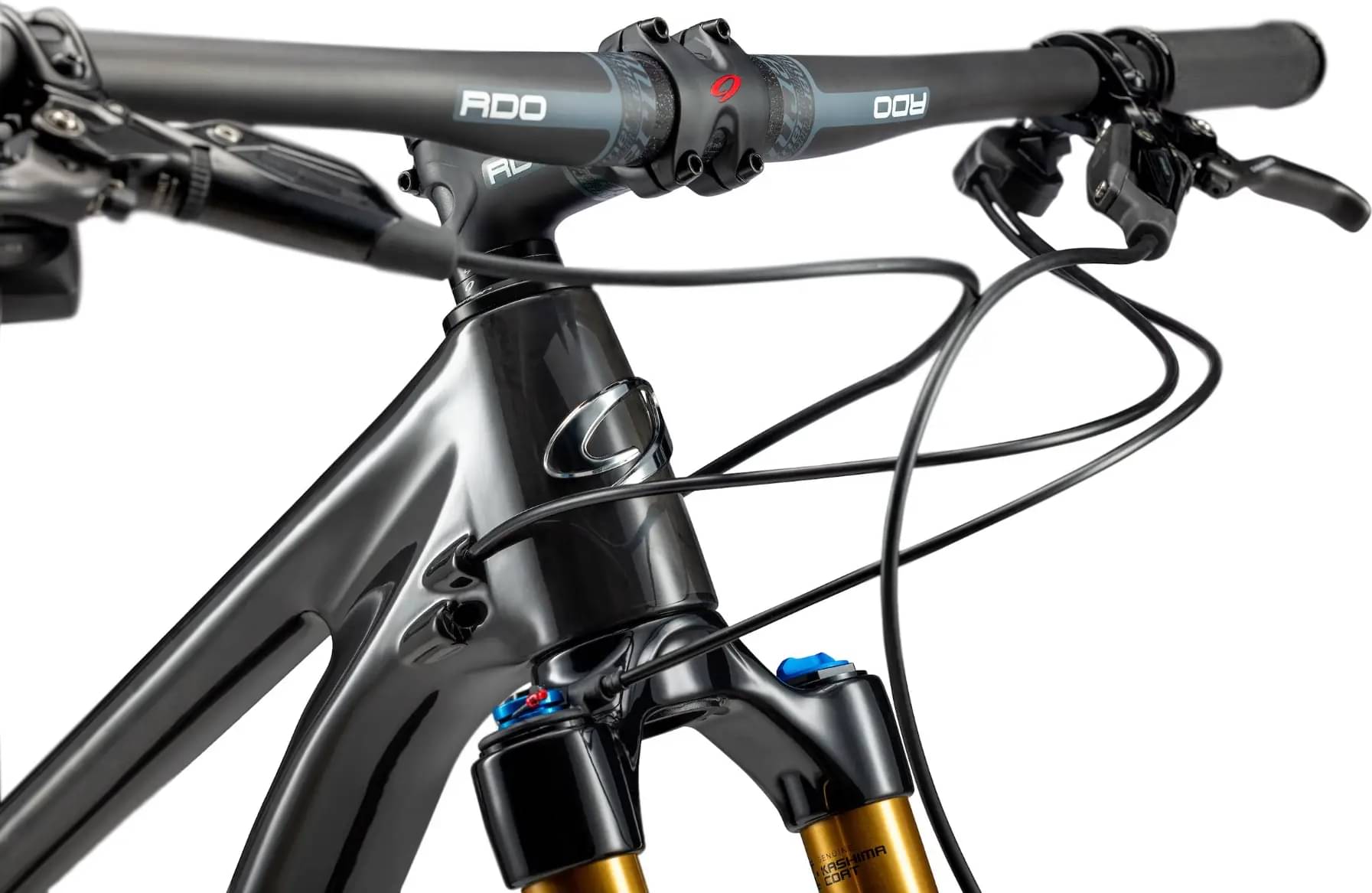

Stem
NINER RDO STEM, NINER GRAPHIC (XS/S/M- 80MM, L/XL- 90MM)
Handlebar
NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
Grips
NINER GRRRIPS L/O NYLON SOFT COMPOUND
Headset
NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
Seat
Saddle
NINER CUSTOM WITH CR-MO RAILS, EMBOSSED NINER GRAPHIC
Seatpost
NINER CARBON SEAT POST, 370MM, NINER GRAPHIC
Fit data

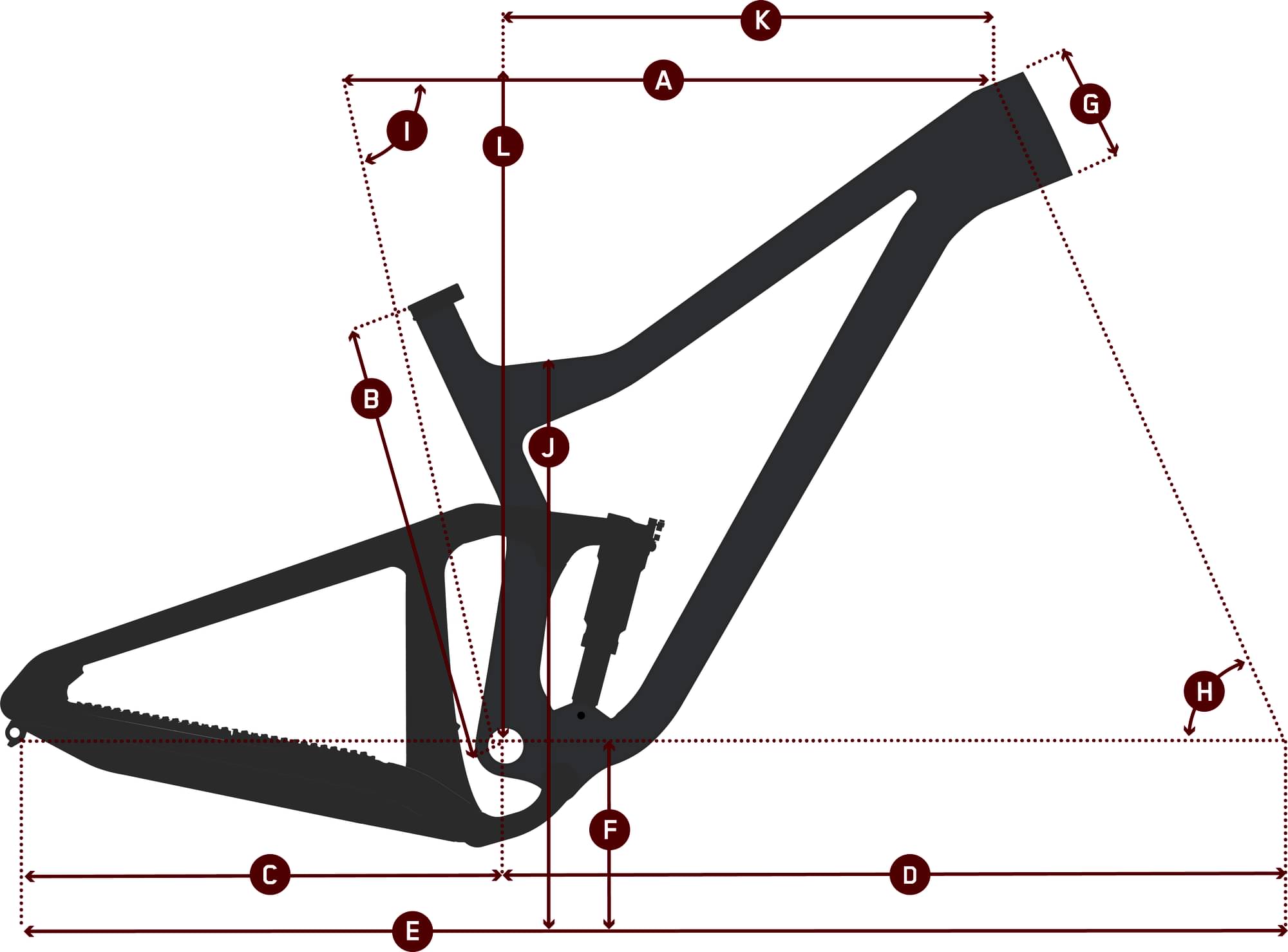

Geometry
Numbers for sizing and ride feel.
| Size | XS Low | SM Low | MD Low | LG Low | XL Low | XS High | SM High | MD High | LG High | XL High |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.479 mm | 1.46 mm | 1.423 mm | 1.346 mm | 1.288 mm | mm | mm | mm | mm | mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm | mm | mm | mm | mm | mm |
| Front Center | 673 mm | 690 mm | 712 mm | 740 mm | 769 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Rake | 39 mm | 36 mm | 33 mm | 35 mm | 27 mm | mm | mm | mm | mm | mm |
| Trail | 109 mm | 112 mm | 116 mm | 114 mm | 122 mm | mm | mm | mm | mm | mm |
| Stack | 599 mm | 613 mm | 626 mm | 626 mm | 640 mm | 401 mm | 416 mm | 436 mm | 461 mm | 493 mm |
| Reach | 405 mm | 420 mm | 440 mm | 465 mm | 497 mm | 657 mm | 670 mm | 672 mm | mm | mm |
| Top Tube Length | 561 mm | 577 mm | 599 mm | 626 mm | 661 mm | mm | mm | mm | mm | mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° | 67.6 ° | 67.6 ° | 67.6 ° | 67.6 ° | 67.6 ° |
| Seat Tube Length | 561 mm | 577 mm | 599 mm | 626 mm | 661 mm | 561 mm | 577 mm | 599 mm | 626 mm | 661 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° | 90 ° | ° | ° | ° | ° |
| Head Tube Length | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 351 mm | 376 mm | 406 mm | 446 mm | 497 mm |
| Wheelbase | 1100 mm | 1117 mm | 1139 mm | 1167 mm | 1196 mm | 671 mm | 688 mm | 712 mm | 740 mm | 776 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | mm | mm | mm | mm | mm |
| Standover Height | 688 mm | 698 mm | 727 mm | 727 mm | 778 mm | mm | mm | mm | mm | mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
