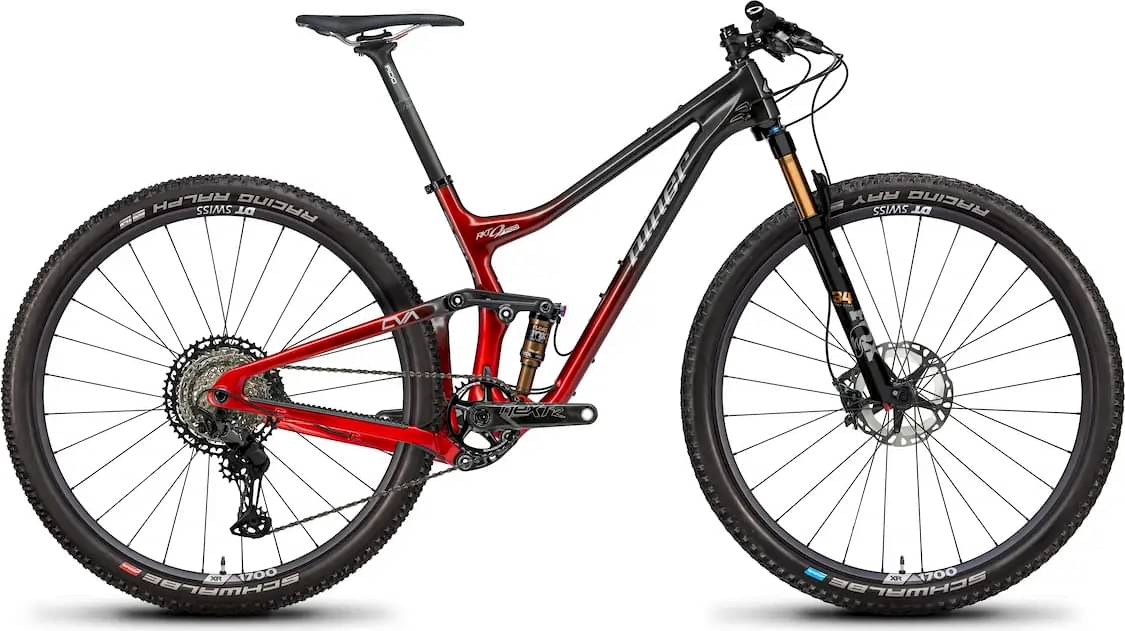

Niner RKT 9 RDO 4-STAR SHIMANO XT 2024
2024 Mountain
Estimate price |
6,699$
Weight | 11.93 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINER RDO CARBON FIBER, 100MM CVA SUSPENSION, ALUMINUM ROCKER LINKS, ENDURO MAX PIVOT BEARINGS
Suspension Fork
FOX 34 SC FLOAT FACTORY EVOL FIT4, 3 POSITION W/ ADJ, KASHIMA COAT, 100MM, 110X15MM, 44MM OFFSET
Rear Shock
FOX FLOAT DPS FACTORY EVOL, W/ REMOTE L/O, KASHIMA COAT
Drivetrain
Rear Derailleur
SHIMANO XT M8100 SGS 12SP
Front Derailleur
S3/ Low Direct Mount Front Derailleur
Shift Levers
SHIMANO XT M8100 12SP I-SPEC EV
Cassette
SHIMANO XT M8100 12SP, 10-51T
Crank
RACEFACE NEXT R CARBON 12SP, 32T
Bottom Bracket
RACEFACE BSA
Chain
SHIMANO XT M8100 W/ QUICKLINK
Wheels
Front Hub
DT Swiss 350 Centerlock with Ratchet System 36 SL
Rear Hub
DT Swiss 350 Centerlock with Ratchet System 36 SL
Rims
DT Swiss XR 1700 SPLINE, aluminum clincher, 25mm internal
Spokes
DT Competition straight pull
Tires
Front: SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35, Rear: SCHWALBE RACING RALPH EVO SUPER TERRAIN TLE ADDIX SPEED 2.35
Brakes
Brakes
SHIMANO XT M8100, METAL PAD W/ FIN
Brake Levers
SHIMANO XT M8100
Cockpit
Stem
NINER RDO STEM, NINER GRAPHIC (XS/S/M- 60MM, L/XL- 70MM)
Handlebar
NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
Grips
NINER GRRRIPS L/O NYLON SOFT COMPOUND
Headset
NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
Seat
Saddle
NINER CUSTOM TR WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC
Seatpost
NINER RDO SEAT POST, 400MM, NINER GRAPHIC
Fit data

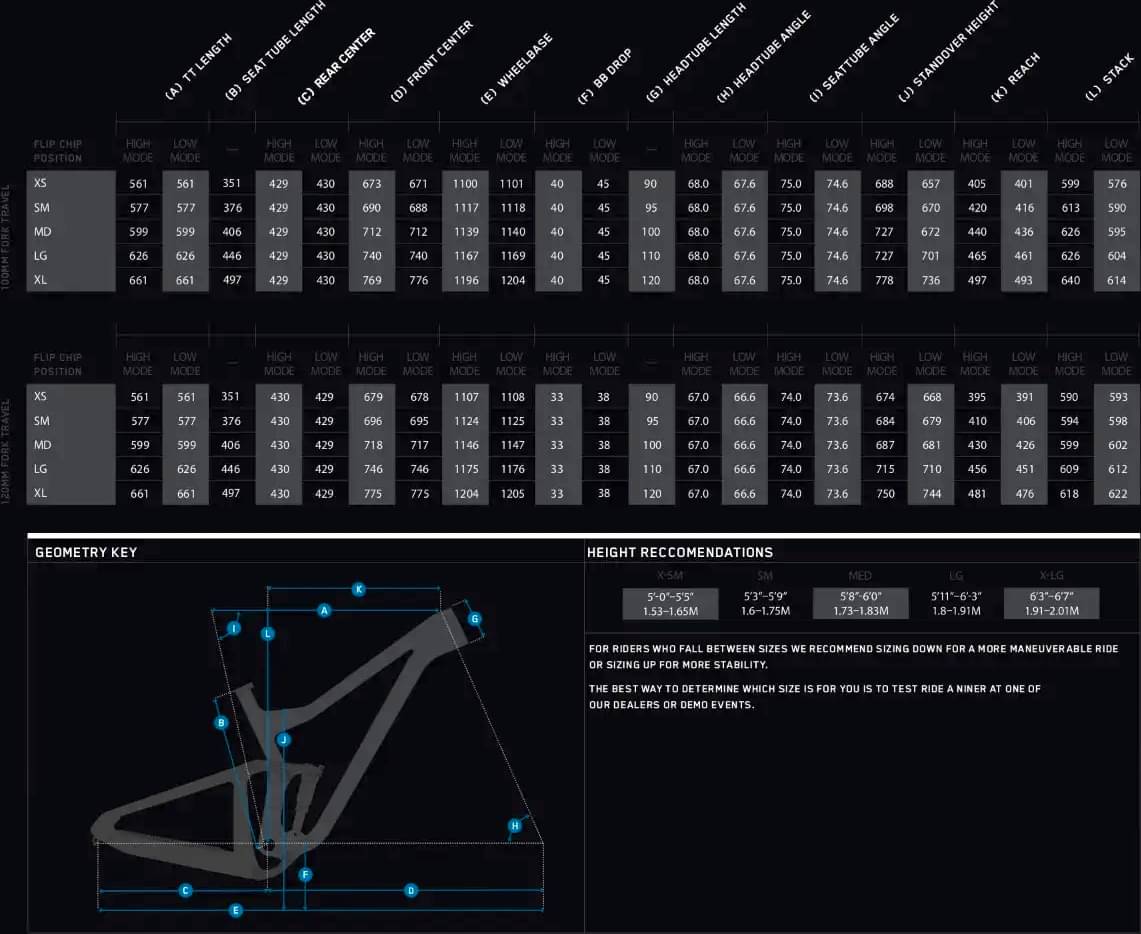

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
