Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Steel -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

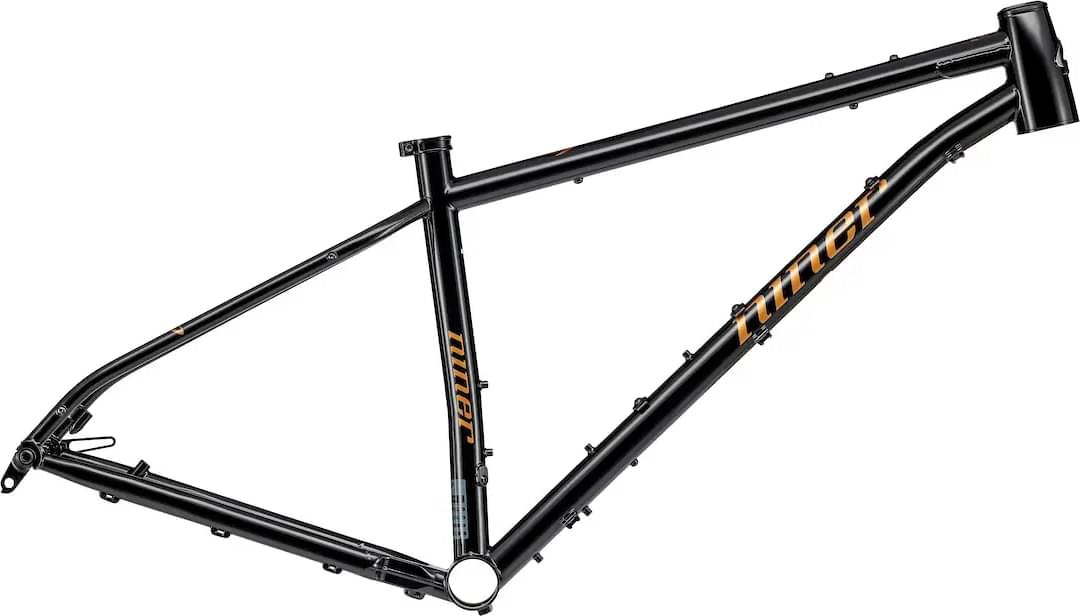

Frame
Frame
HAND WELDED AIR HARDENED REYNOLDS 853 STEEL; EXTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; 12X148 THRU AXLE
Suspension Fork
120mm
Drivetrain
Bottom Bracket
73mm PF30 BB Shell (Adapters Required For BSA Type BBs); compatible with Biocentric 30 BB
Wheels
Tires
29x2.4 or 27.5x3.0 Tire (Tire Sizes Vary By Brand, Some Tires May Not Fit)
Brakes
Brakes
Post mount
Seat
Seatpost
30.9mm
Fit data

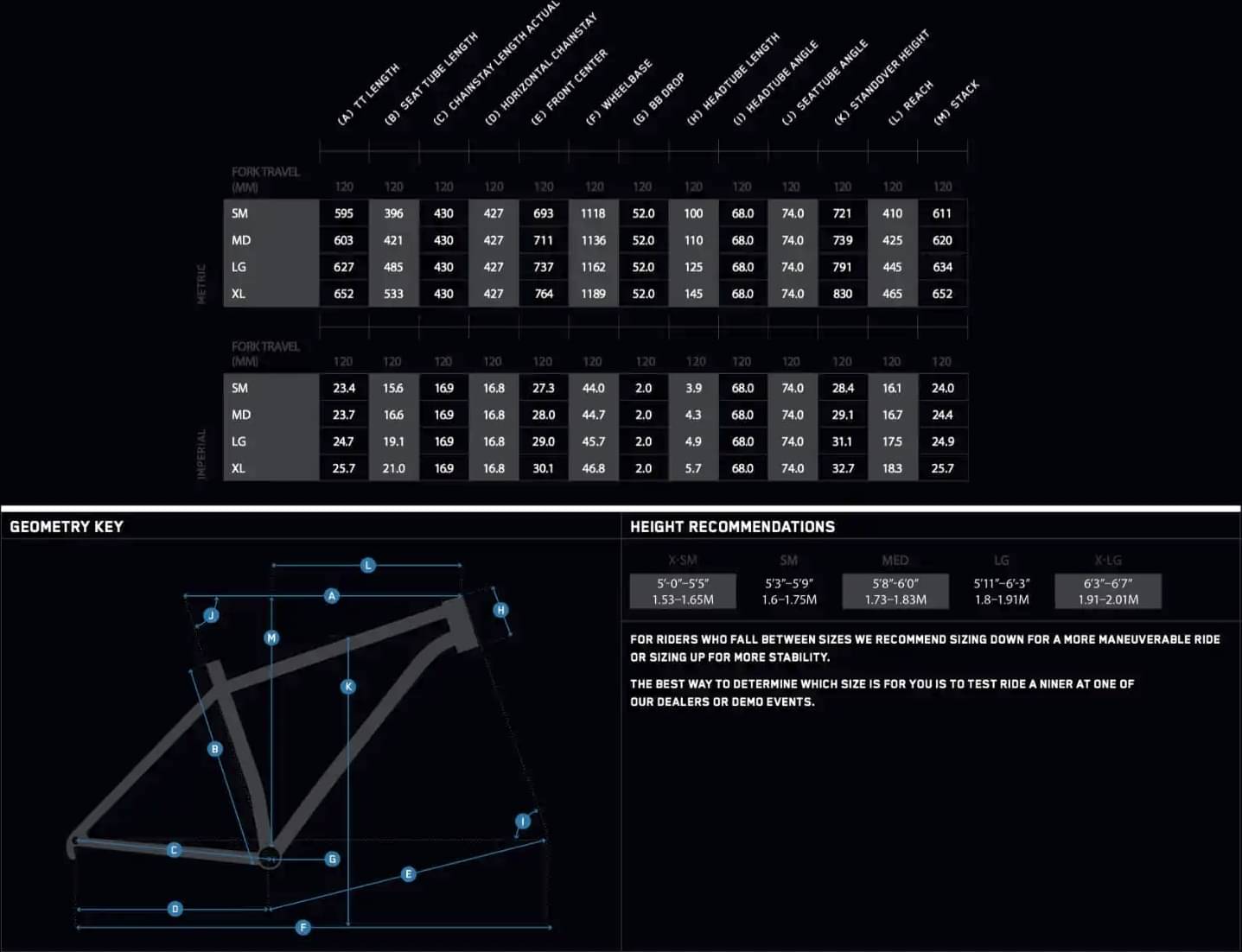

Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm | 199 cm |
