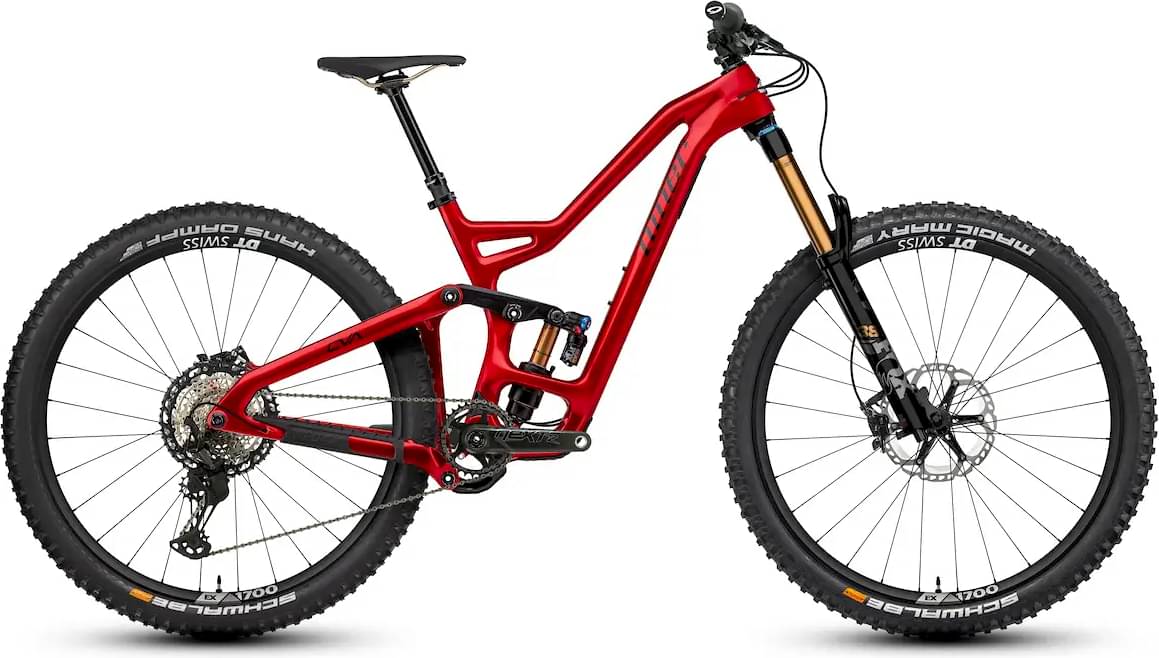

Niner WFO 9 RDO – 4-STAR SHIMANO XT 2024
2024 Mountain
Estimate price |
7,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 180mm -
Travel Rear 170mm -
Fork Fox Factory Float 38
-
Groupset X1, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Low
160cm - 175cm
MD Low
173cm - 183cm
LG Low
180cm - 191cm
SM High
160cm - 175cm
MD High
173cm - 183cm
LG High
180cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINER RDO CARBON FIBER, 170MM TRAVEL, GEO FLIP CHIP, RIB CAGE CONSTRUCTION, FULL SLEEVE CABLE ROUTING, ENDURO MAX BLACK OXIDE PIVOT BEARINGS
Suspension Fork
FOX 38 FLOAT FACTORY GRIP 2 EVOL, HSC, LSC, HSR, LSR, KASHIMA COAT, 180MM, 110X15MM, 44MM OFFSET
Rear Shock
FOX FLOAT X2 FACTORY EVOL 2 POSITION, KASHIMA COAT
Drivetrain
Rear Derailleur
SRAM X01 AXS EAGLE 12SP WITH BATTERY COVER
Front Derailleur
N/A
Shift Levers
SRAM AXS EAGLE 12SP
Cassette
SRAM EAGLE XG 1299, 10-52T RAINBOW
Crank
SRAM X1 EAGLE CARBON DUB, 32T, 170MM
Bottom Bracket
SRAM DUB BSA THREADED
Chain
SRAM XX1 EAGLE 12SP RAINBOW
Wheels
Rims
Front: DT Swiss EXC 1200 SPLINE, carbon clincher, 30mm internal, 110x15mm, centerlock, Rear: DT Swiss EXC 1200 SPLINE, carbon clincher, 30mm internal, 148x12mm, centerlock, ratchet EXP 36
Tires
Front: SCHWALBE MAGIC MARY EVO SUPER TRAIL TLE ADDIX SOFT 2.6, Rear: SCHWALBE HANS DAMPF EVO SUPER TRAIL TLE ADDIX SOFT 2.6
Brakes
Brakes
SRAM CODE RSC
Brake Levers
SRAM CODE RSC
Cockpit
Stem
RACE FACE TURBINE R 40MM, 35MM CLAMP
Handlebar
RACE FACE NEXT R 800MM WIDE, 35MM RISE, 35MM CLAMP
Grips
NINER GRRRIPS L/O FLANGED SOFT COMPOUND
Headset
NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40
Seat
Saddle
NINER CUSTOM TR WITH CRN-TI RAILS, PRINTED NINER GRAPHIC
Seatpost
KS LEV SI (S-125MM, M-150MM, L/XL-175MM)
Fit data

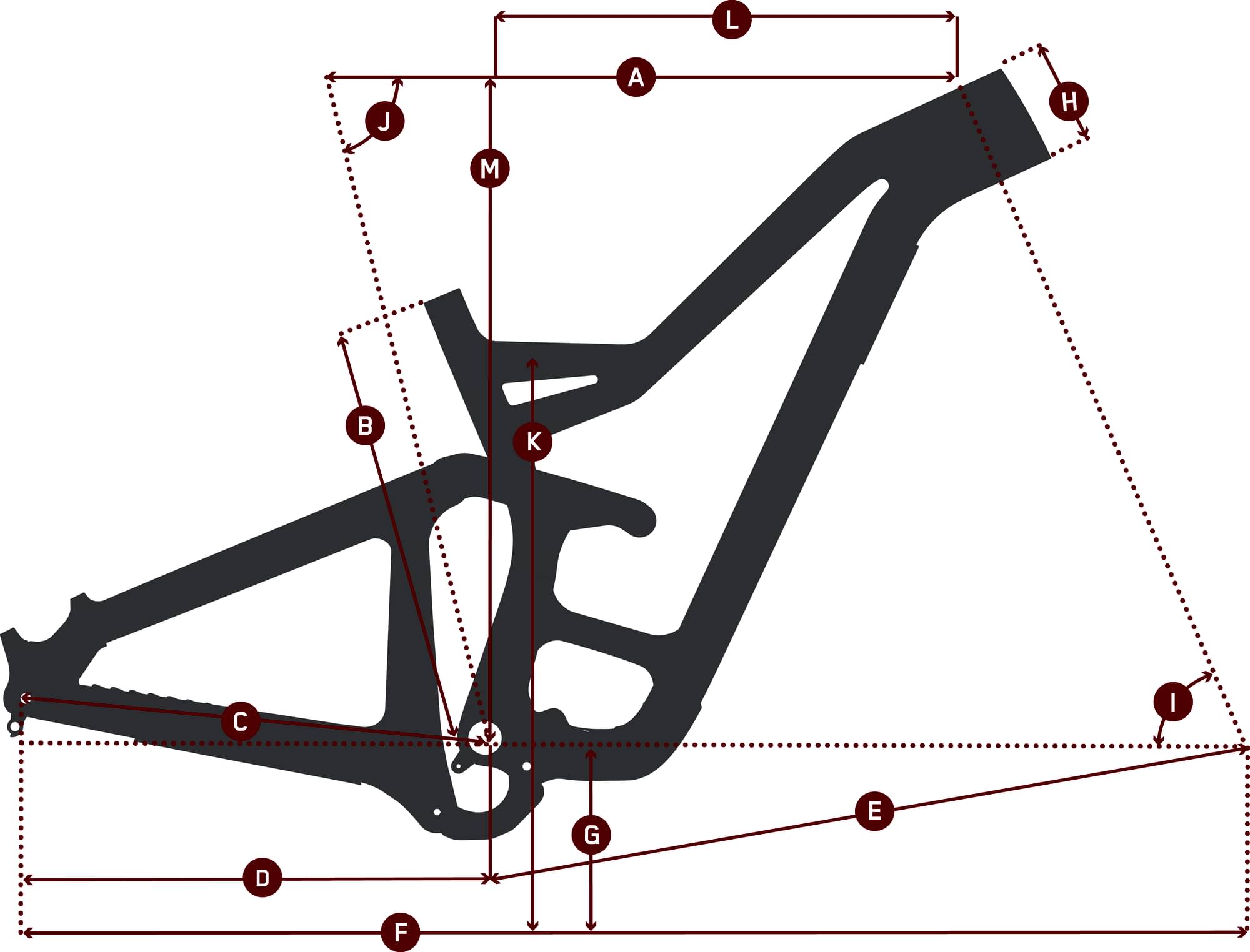

Geometry
Numbers for sizing and ride feel.
| Size | SM Low | MD Low | LG Low | SM High | MD High | LG High |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.37 mm | 1.294 mm | mm | mm | mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | mm | mm | mm |
| Front Center | 770 mm | 793 mm | 825 mm | 432 mm | 432 mm | 432 mm |
| Rake | 83 mm | 57 mm | 18 mm | mm | mm | mm |
| Trail | 85 mm | 114 mm | 157 mm | mm | mm | mm |
| Stack | 621 mm | 626 mm | 630 mm | 430 mm | 450 mm | 480 mm |
| Reach | 437 mm | 457 mm | 487 mm | mm | mm | mm |
| Top Tube Length | 573 mm | 595 mm | 625 mm | mm | mm | mm |
| Seat Tube Angle | 77.7 ° | 77.7 ° | 77.7 ° | 64 ° | 64 ° | 64 ° |
| Seat Tube Length | 575 mm | 597 mm | 627 mm | 575 mm | 597 mm | 627 mm |
| Head Tube Angle | 64.7 ° | 64.7 ° | 64.7 ° | 90 ° | ° | ° |
| Chainstay Length | 390 mm | 419 mm | 462 mm | 390 mm | 419 mm | 462 mm |
| Wheelbase | 1203 mm | 1225 mm | 1257 mm | 771 mm | 794 mm | 826 mm |
| Bottom Bracket Drop | 19 mm | 19 mm | 19 mm | mm | mm | mm |
| Standover Height | 732 mm | 734 mm | 755 mm | mm | mm | mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 173 cm | 180 cm | 160 cm | 173 cm | 180 cm |
| Rider Max Height | 175 cm | 183 cm | 191 cm | 175 cm | 183 cm | 191 cm |
