Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Travel Rear 170mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 175cm
SM Low
160cm - 175cm
MD High
173cm - 183cm
MD Low
173cm - 183cm
LG High
180cm - 191cm
LG Low
180cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components

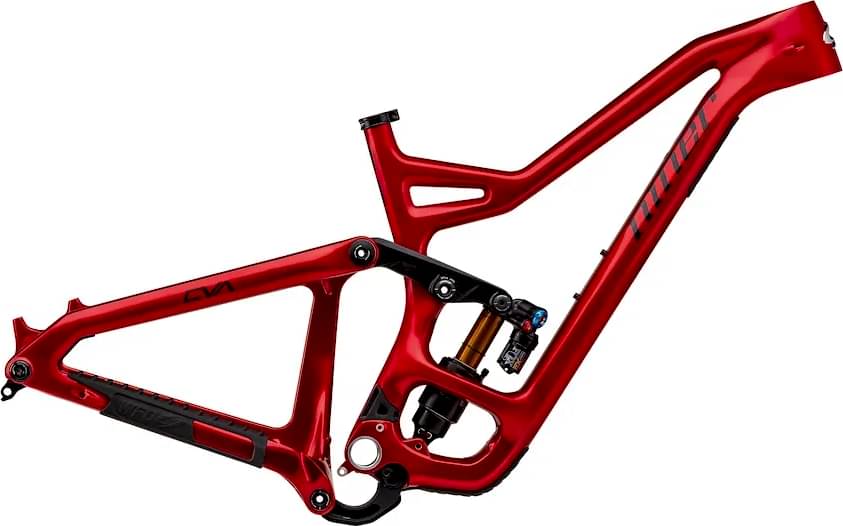

Frame
Frame
NINER RDO CARBON FIBER, 170MM TRAVEL, GEO FLIP CHIP, RIB CAGE CONSTRUCTION, FULL SLEEVE CABLE ROUTING, ENDURO MAX BLACK OXIDE PIVOT BEARINGS
Suspension Fork
180MM
Drivetrain
Front Derailleur
N/A
Bottom Bracket
BSA THREADED
Wheels
Tires
29 X 2.6
Brakes
Brakes
POST MOUNT (180MM MIN ROTOR)
Seat
Seatpost
30.9
Fit data

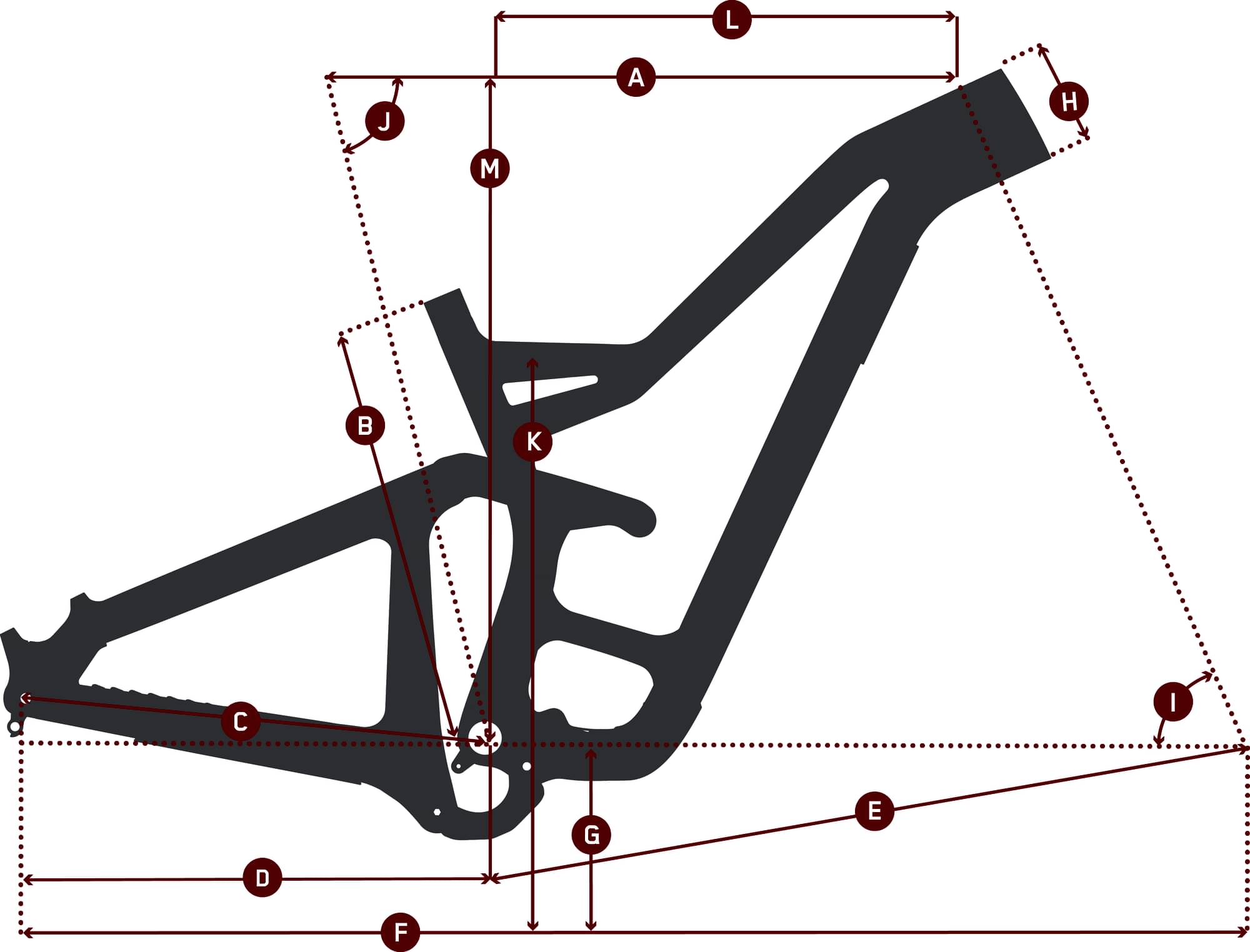

Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.456 mm | 1.37 mm | 1.402 mm | 1.294 mm | 1.323 mm |
| Bottom Bracket Height | 355 mm | 346 mm | 355 mm | 346 mm | 355 mm | 346 mm |
| Front Center | 770 mm | 771 mm | 793 mm | 794 mm | 825 mm | 826 mm |
| Rake | 44 mm | 46 mm | 44 mm | 46 mm | 44 mm | 46 mm |
| Trail | 128 mm | 131 mm | 128 mm | 131 mm | 128 mm | 131 mm |
| Stack | 621 mm | 626 mm | 626 mm | 631 mm | 630 mm | 635 mm |
| Reach | 437 mm | 430 mm | 457 mm | 450 mm | 487 mm | 480 mm |
| Top Tube Length | 573 mm | 575 mm | 595 mm | 597 mm | 625 mm | 627 mm |
| Seat Tube Angle | 77.7 ° | 77 ° | 77.7 ° | 77 ° | 77.7 ° | 77 ° |
| Seat Tube Length | 390 mm | 390 mm | 419 mm | 419 mm | 462 mm | 462 mm |
| Head Tube Angle | 64.7 ° | 64 ° | 64.7 ° | 64 ° | 64.7 ° | 64 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 95 mm | 100 mm | 100 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1203 mm | 1205 mm | 1225 mm | 1227 mm | 1257 mm | 1259 mm |
| Bottom Bracket Drop | 19 mm | 28 mm | 19 mm | 28 mm | 19 mm | 28 mm |
| Standover Height | 732 mm | 725 mm | 734 mm | 727 mm | 755 mm | 748 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 173 cm | 173 cm | 180 cm | 180 cm |
| Rider Max Height | 175 cm | 175 cm | 183 cm | 183 cm | 191 cm | 191 cm |
