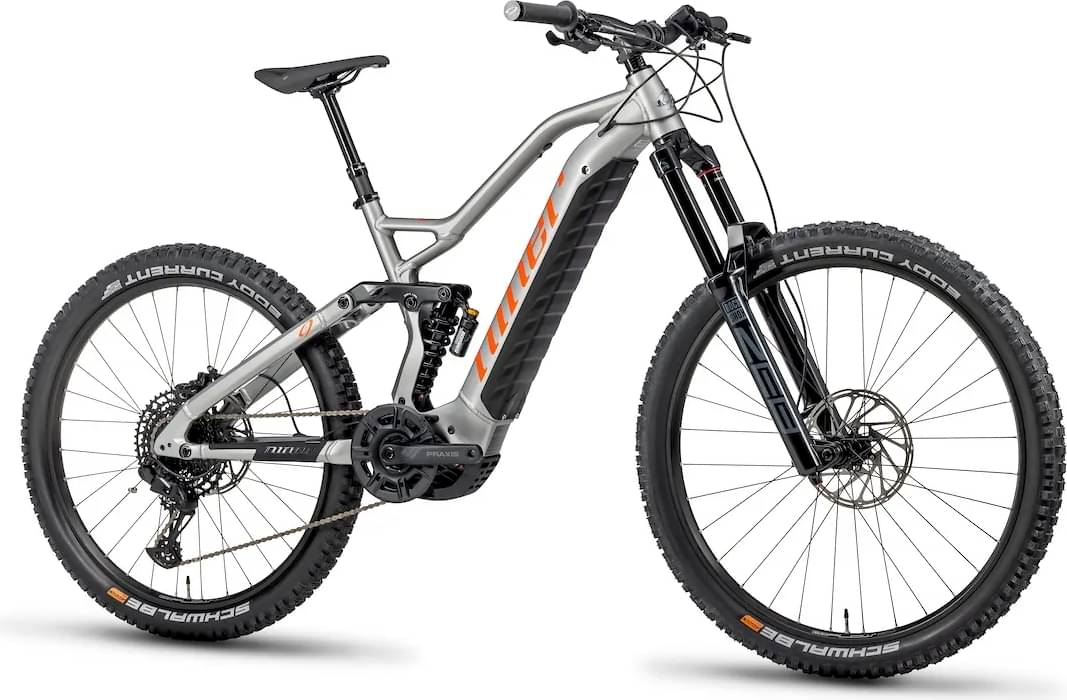

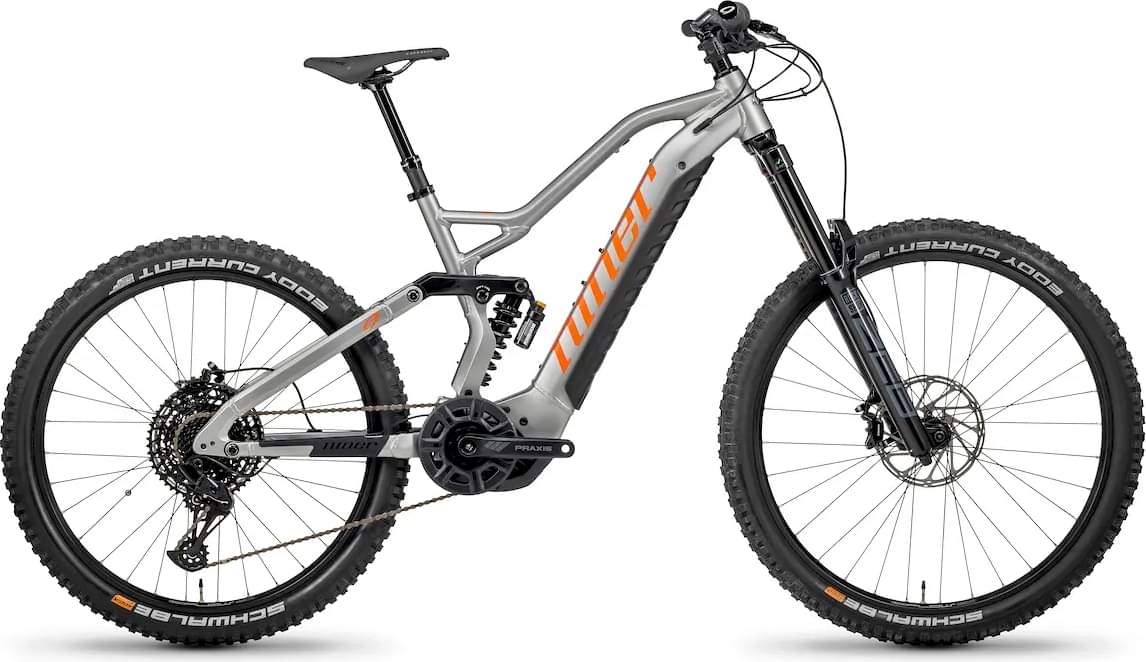

Niner WFO e9 – 3-STAR SRAM SX EAGLE 2024
2024 Mountain
Estimate price |
6,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 180mm -
Travel Rear 180mm -
Fork RockShox ZEB
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Guide RE Hydraulic Disc
Sizing
Recommended size guide.
SM High
160cm - 175cm
SM Low
160cm - 175cm
MD High
173cm - 183cm
MD Low
173cm - 183cm
LG High
180cm - 191cm
LG Low
180cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

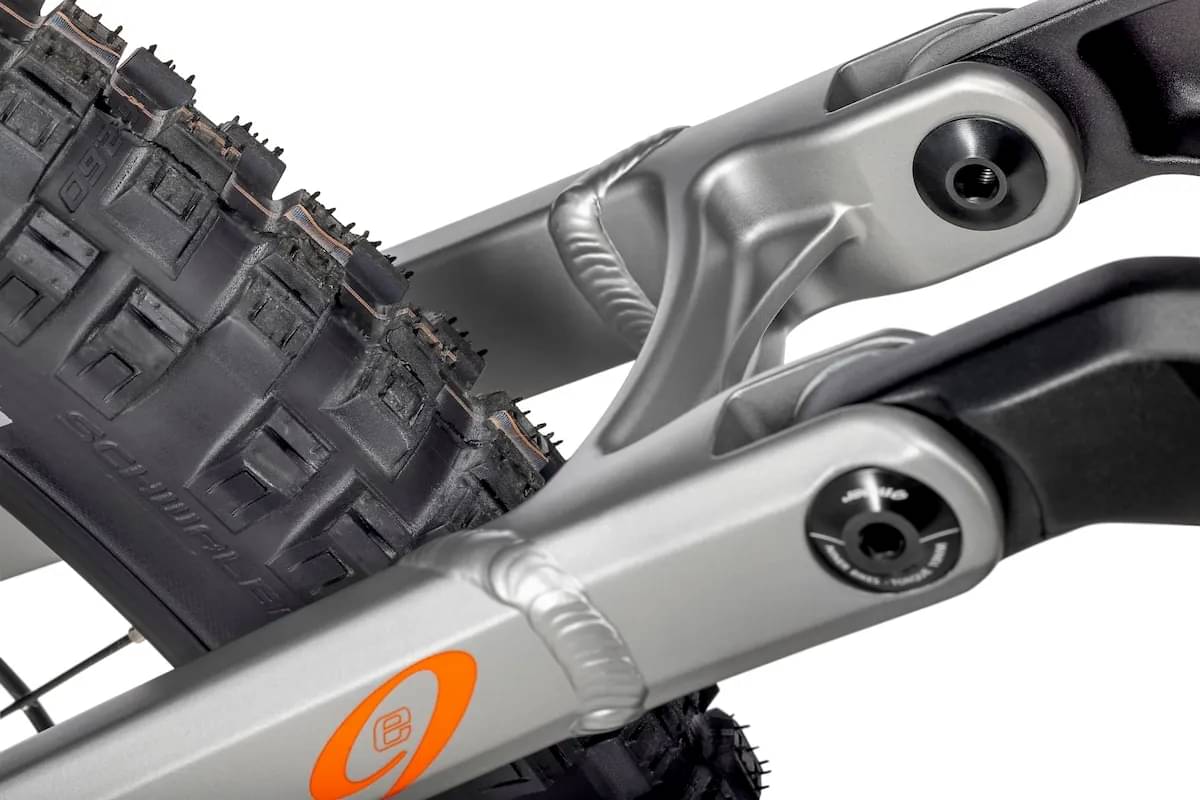

NINER WFO E9 180MM TRAVEL, HYDROFORMED AND WELDED 6061-T6 ALUMINUM, INTEGRATED BATTERY COMPARTMENT
Suspension Fork
ROCKSHOX ZEB R 180MM
Rear Shock

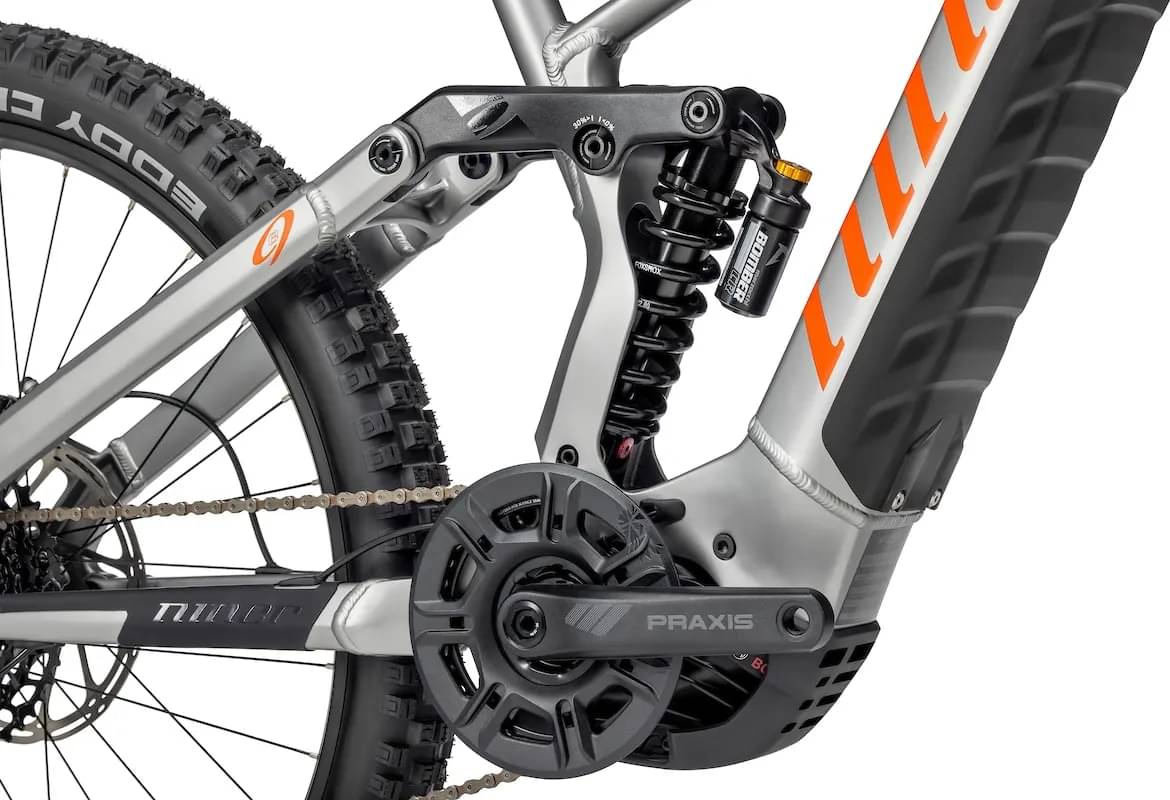

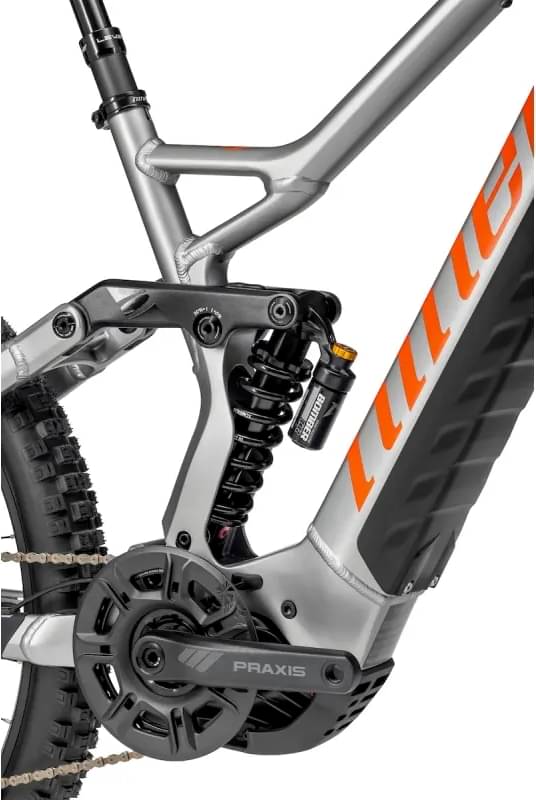

MARZOCCHI BOMBER CR COIL 205X65MM TRUNNION (S-400LB, M-450LB, L-500LB)
Drivetrain

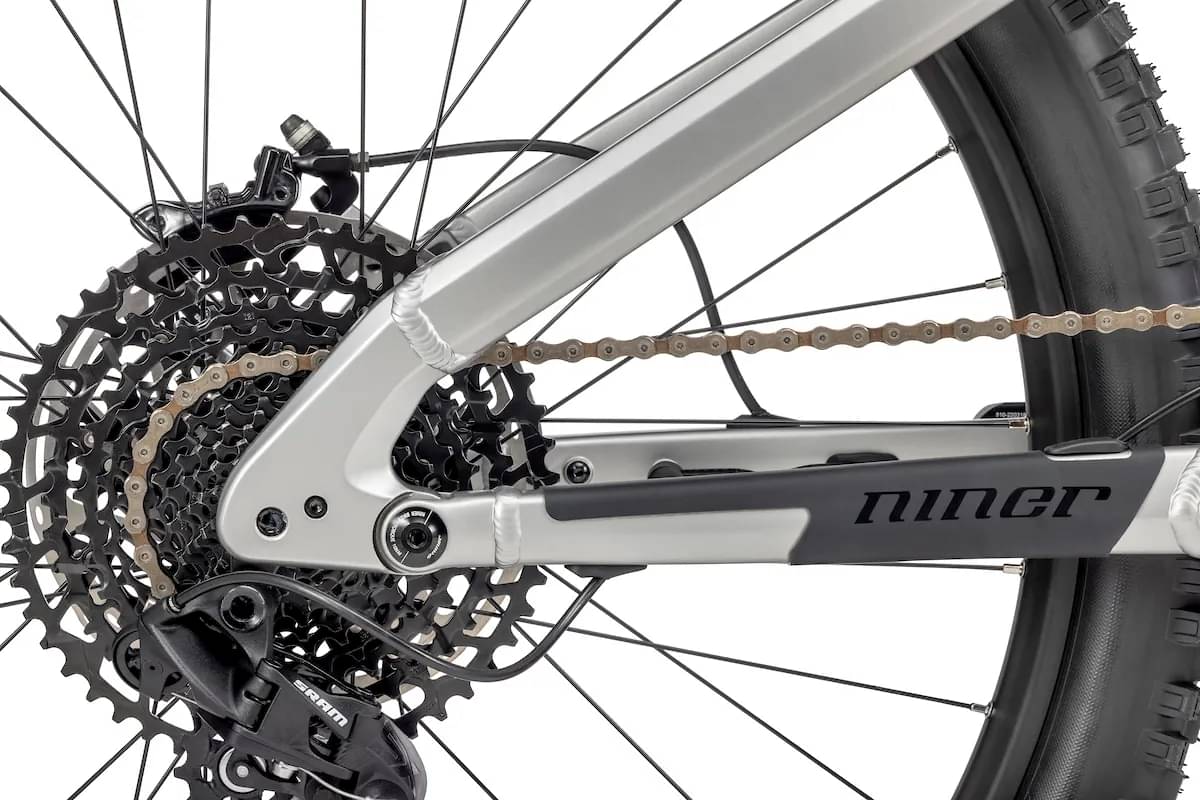

Rear Derailleur
SRAM SX EAGLE 12SP
Front Derailleur
N/A
Shift Levers
SRAM SX EAGLE 12SP
Cassette
SRAM PG1210 EAGLE 11-50T
Crank

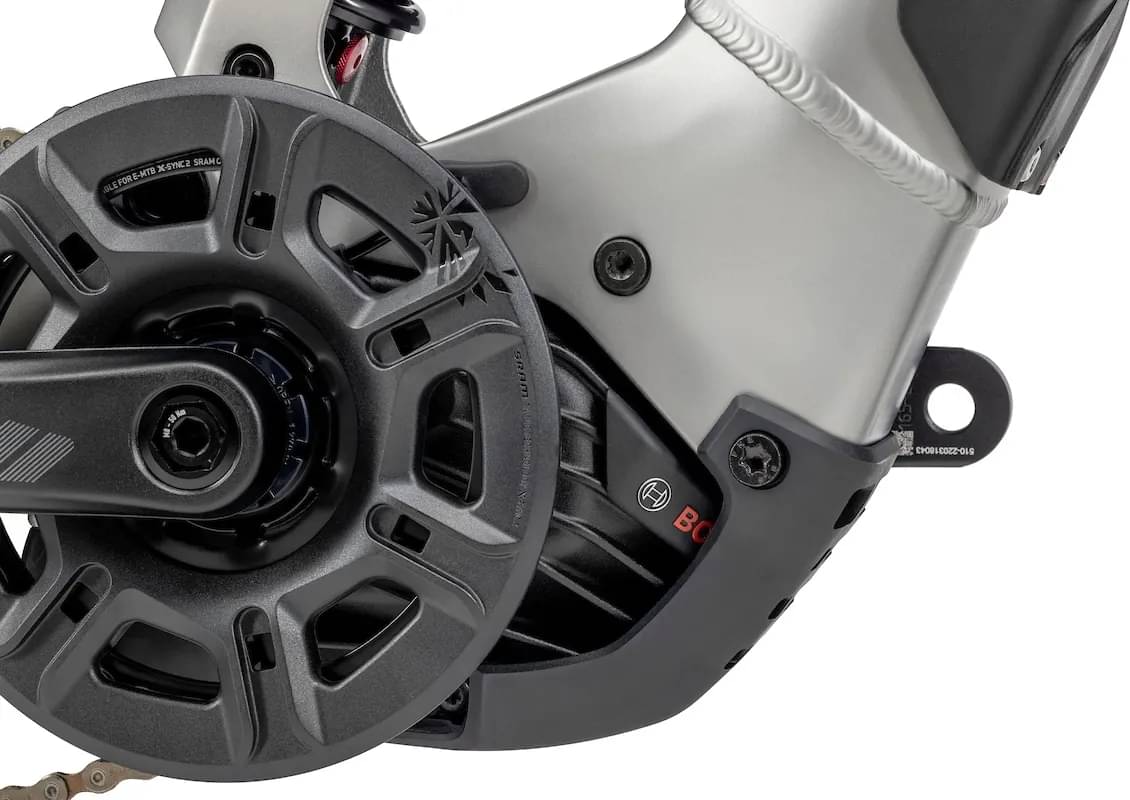

PRAXIS BOSCH G4 ISIS 165MM WITH SRAM DM EAGLE RING 36T
Bottom Bracket
N/A
Chain
SRAM SX EAGLE 12SP
Wheels
Rims
Front: Stans NoTubes Flow D 29er, Formula CL-811 hub, centerlock, 110x15mm, Rear: Stans NoTubes Flow D 27.5, Formula ECT 148S hub, centerlock, 148x12mm
Tires
Front: SCHWALBE EDDY CURRENT EVO SUPER TRAIL TLE ADDIX SOFT 29X2.4, Rear: SCHWALBE EDDY CURRENT EVO SUPER GRAVITY TLE ADDIX SOFT 27.5X2.6
Brakes
Brakes
SRAM GUIDE RE
Brake Levers
SRAM GUIDE RE

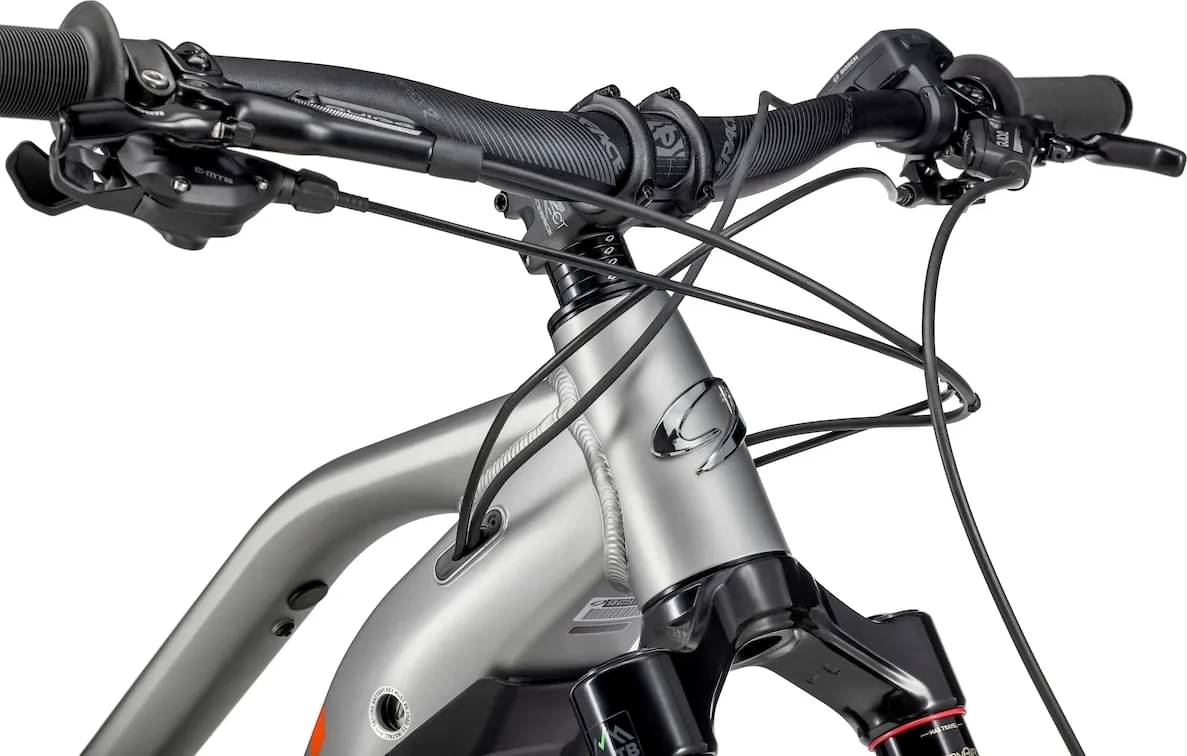

Cockpit
Stem
RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
Handlebar
RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
Grips
NINER GRRRIPS L/O NYLON FLANGED
Headset
NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6 | ZS56/40
Seat
Saddle
NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC
Seatpost
KS LEV SI (S-100MM, MD-125MM, LG-150MM)
Fit data

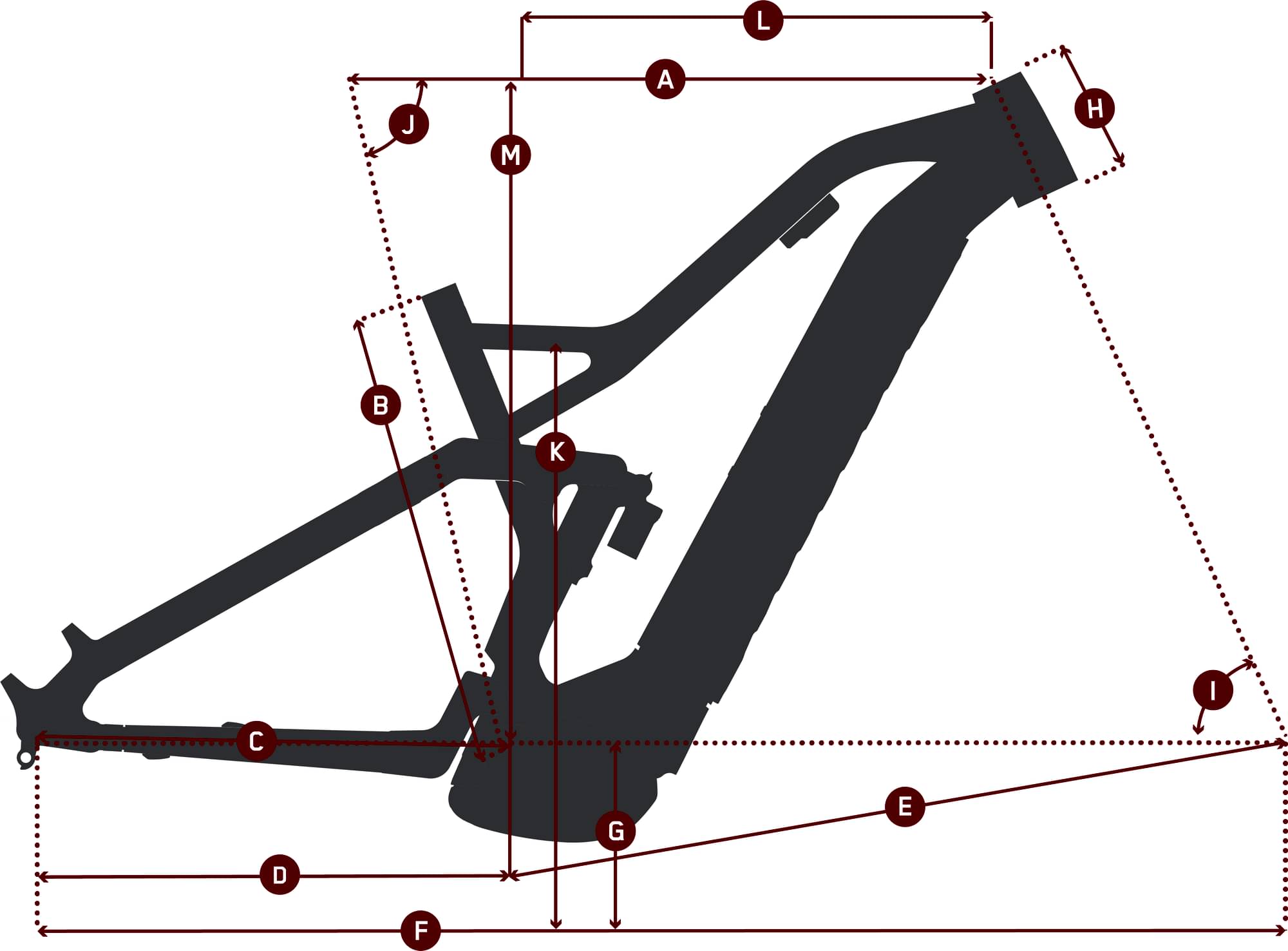

Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.458 mm | 1.482 mm | 1.402 mm | 1.427 mm | 1.343 mm | 1.366 mm |
| Front Center | 778 mm | 780 mm | 800 mm | 802 mm | 820 mm | 822 mm |
| Rake | 44 mm | 45 mm | 44 mm | 45 mm | 8 mm | 9 mm |
| Trail | 134 mm | 136 mm | 134 mm | 136 mm | 174 mm | 177 mm |
| Stack | 627 mm | 630 mm | 631 mm | 635 mm | 631 mm | 635 mm |
| Reach | 430 mm | 425 mm | 450 mm | 445 mm | 470 mm | 465 mm |
| Top Tube Length | 579 mm | 581 mm | 601 mm | 603 mm | 621 mm | 623 mm |
| Seat Tube Angle | 76.5 ° | 76 ° | 76.5 ° | 76 ° | 76.5 ° | 76 ° |
| Seat Tube Length | 419 mm | 419 mm | 445 mm | 445 mm | 483 mm | 483 mm |
| Head Tube Angle | 64 ° | 63.5 ° | 64 ° | 63.5 ° | 64 ° | 63.5 ° |
| Head Tube Length | 110 mm | 110 mm | 115 mm | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 490 mm | 490 mm |
| Wheelbase | 1228 mm | 1229 mm | 1250 mm | 1251 mm | 1270 mm | 1271 mm |
| Bottom Bracket Drop | 14 mm | 20 mm | 14 mm | 20 mm | 14 mm | 20 mm |
| Standover Height | 743 mm | 737 mm | 758 mm | 752 mm | 788 mm | 782 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 160 cm | 173 cm | 173 cm | 180 cm | 180 cm |
| Rider Max Height | 175 cm | 175 cm | 183 cm | 183 cm | 191 cm | 191 cm |
