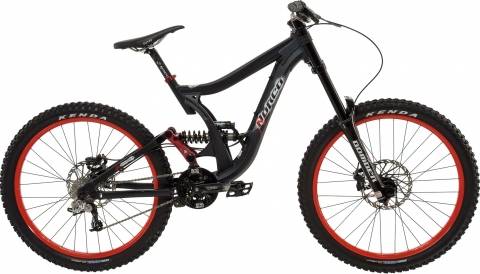

Norco A-Line 2010
2010 Mountain
Estimate price |
3,575$
Weight | 19.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 26" -
Travel Rear 228mm -
Fork Marzocchi -
Groupset X7, Race Face -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aline park frame 228 mm travel
Suspension Fork
Marzocchi 888 RCV triple clamp fork
Rear Shock
Fox DHX 4.0 coil
Drivetrain
Rear Derailleur
SRAM X-7 9 sp med cage
Front Derailleur
N/A
Shift Levers
SRAM X-7 9 sp trigger shifter
Cassette
SRAM PG-950 9 sp cassette
Crank
Race Face Respond DH
Bottom Bracket
with crank
Chain
KMC Z-9000 9 speed chain
Chain Tensioner
E-13 SRS
Pedals
DMR V-8 pedal
Wheels
Front Hub
Sun Jumping Flea 20 mm 32H disc
Rear Hub
Sun Jumping Flea 150 x 12 32H disc
Rims
Sun MTX 29
Spokes
Stainless black
Tires
Kenda Nevagal 26 x 2.50 Stick E / Cap casing
Brakes
Brakes
Avid Code 5
Brake Levers
Avid Code 5
Cockpit
Stem
Marzocchi clamp on stem 53 or 63 mm ext
Handlebar
Syncros FR 20 (710 mm width)
Grips
Sunline "S" lock on grip
Headset
FSA Orbit Z 1.5 R 1.5" to 1-1/8"
Seat
Saddle
WTB Silverado chromoly rails
Seatpost
Norco double bolt 2014
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm |
| Front Center | 709 mm | 724 mm | 753 mm |
| Top Tube Length | 571 mm | 591 mm | 621 mm |
| Seat Tube Angle | 70.8 ° | 70.8 ° | 70.8 ° |
| Seat Tube Length | 406 mm | 432 mm | 457 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1154 mm | 1174 mm | 1204 mm |
| Bottom Bracket Drop | -15 mm | -15 mm | -15 mm |
| Standover Height | 820 mm | 813 mm | 810 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
A-Line belongs to the Norco A Line model. Norco released 7 bikes variations of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Downhill bikes
According to our math, the average price for a trustworthy Downhill bike is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3575$. Comparing this to the average Downhill bike price, we see that the price is 5.43% more expensive.
Average weight for Downhill bikes
Downhill bikes weigh an average of 15.89 kg (35.03 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 19.8 kg (43.65 lbs), the A-Line model is much heavier than average. In other words, this model is 24.61% heavier than the average Downhill bike.
A-Line components
Fork
The fork installed on this bike is the Marzocchi model. The travel on this model is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Norco A-Line bike has the Fox DHX 4.0 coil model installed, and has a travel of 228mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Norco A-Line 2010, has a 26″ aluminum model. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
