Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset Deore -
Suspension Rigid -
Motor hub-drive -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bigfoot aluminum fat bike frame for BionX, 135mm offset rear end
Suspension Fork
Norco fat bike aluminum w/bottle and rack mounts
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore RD-591 SGS 9 sp
Front Derailleur
N/A
Shift Levers
Jagwire LEX housing
Cassette
Shimano Deore HG-61 12-36T 9 sp
Crank
Samox alloy forged w/32T single ring, external BB w/ Black Spire Einfact direct mount guide (chain guide not pictured in above photo)
Bottom Bracket
Samox BB X type external 100 mm
Chain
Shimano / KMC HG53 9 sp
Chain Tensioner
N/A
Pedals
Wellgo alloy body / alloy cage MTB pedal
Wheels
Front Hub
KT alloy 32Hx135mm disc w/ QR
Rear Hub
BionX hub motor, disc mount, cassette, 135mm OLD
Rims
Aluminum 100mm, single wall rim w/holes
Tires
CY 26x4.0 fat bike tire
Brakes
Brakes
Tektro hydraulic disc brake w/180 rotor (E bike model)
Brake Levers
Tektro
Disk Rotors
N/A
Cockpit
Stem
Alloy 3D forged MTB stem, 4 bolt front clamp
Handlebar
Norco 25 mm rise 740 mm width 6061 DB
Grips
Super light foam grip / all black
Headset
FSA No. 11Q threadless internal 1-1/8"
Seat
Saddle
Norco MTB XC Trail saddle w/chromoly rail
Seatpost
Norco Lite 3D forged double bolt 2014 alloy 30.9
Motor & Battery
Motor
BionX hub motor, disc mount, cassette, 135mm OLD
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.42 mm | 1.38 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm |
| Front Center | 648 mm | 668 mm | 689 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 78 mm | 78 mm | 78 mm |
| Stack | 598 mm | 607 mm | 616 mm |
| Reach | 411 mm | 428 mm | 445 mm |
| Top Tube Length | 591 mm | 611 mm | 631 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 457 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm |
| Wheelbase | 1097 mm | 1118 mm | 1138 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 796 mm | 773 mm | 758 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

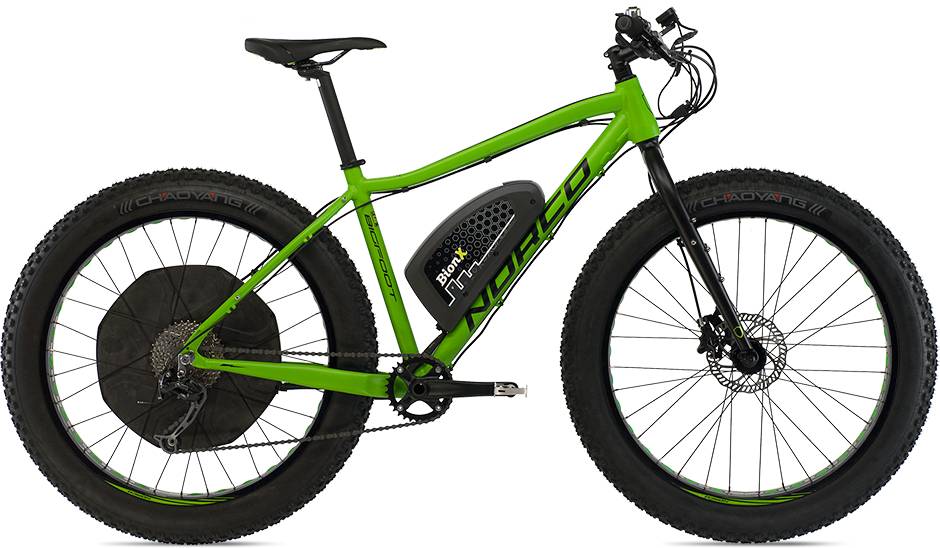

Bigfoot E belongs to the Norco E Bigfoot model. Norco released 10 e-bikes variations of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Fatbike e-bikes
According to our math, the average price for a trustworthy Fatbike e-bike is 2033$. However, you could also get a good Fatbike e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2015 and its price was 3315$. Comparing this to the average Fatbike e-bike price, we see that the price is 63.06% more expensive.
Overview of components
Fork material
Bigfoot E has an aluminum fork, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The Bigfoot E 2015 e-bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Bigfoot E is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Bigfoot E comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
